curt 13241 Manual

13241 / RRH13241
3/31/2009
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH:
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT DISTRIBUTION HITCH:
***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***
ITEM QTY PART NUMBER
1 6 M12-1.25 x 35mm
2 6 7/16"
HITCH WEIGHT: 45 LBS.
15
INSTALL TIME: MINUTES
INSTALL NOTES:
- NO DRILLING REQUIRED
INSTALLATION STEPS

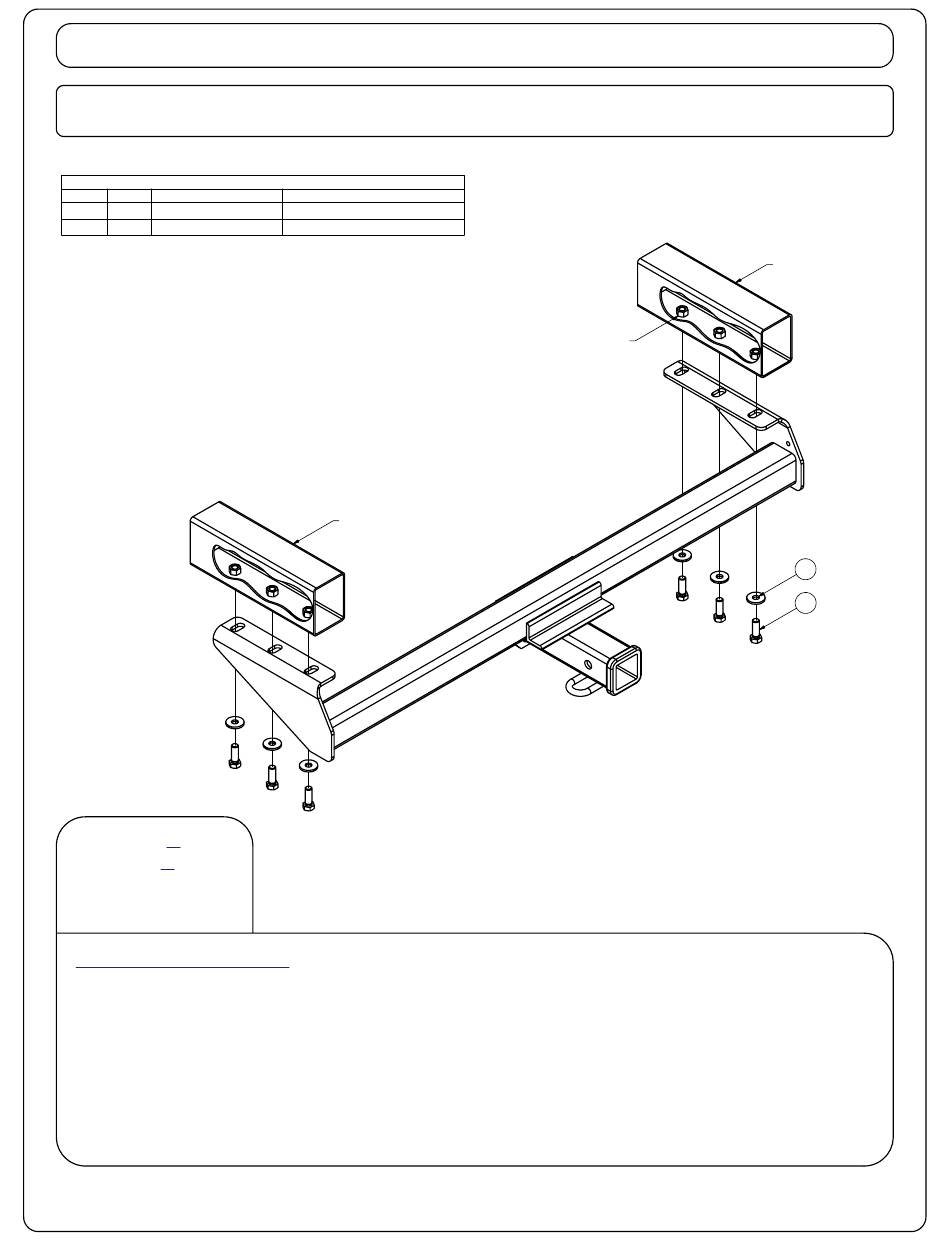

1) Raise hitch into position.
2) Secure with M12 bolts and conical washers into existing weldnuts as shown.
3) Torque all M12 fasteners to 65 lb-ft.
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
Curt Manufacturing Inc., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing Inc., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warranty. Curt Manufacturing Inc.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or
consequential loss or damage.
NISSAN FRONTIER / SUZUKI EQUATOR
Parts List
DESCRIPTION
HEX BOLT
CONICAL TOOTHED WASHER
FRAME RAIL
5,000 LBS. TRAILER WEIGHT &
8,000
LBS. TRAILER WEIGHT &
EXISTING WELDNUTS
500 LBS. TONGUE WEIGHT.
800 LBS. TONGUE WEIGHT
FRAME RAIL
2
1
