HUSKY LINERS 5759 Installation Instructions

FORD F-150 with FENDER FLARES
LINCOLN MARK LT
Install Paint Protection Film before mud guards (see other side)
Please read instructions thoroughly before installation.
Tools Required
•
1/8" drill bit / Drill
•
Short #2 Phillips screwdriver
•
Center punch
It may be necessary to remove the rear wheels for mud guard installation.
NOTE:
Clean and degrease the mud guard location area on the fender before installation.
1.
2. Remove factory fastener from locations B and place a U-clip over sheet metal and align fastener holes (Figure 1).
3. Attach mud guard with a #10 SEM screw at location B, check fit and make sure the mud guard is parallel to the
ground before tightening.
4. Using the mud guard as a template, center punch and drill an 1/8" hole at location A, C, and D (Figure 1).
Install #10 SEM screws at location A, C, and D.
5.
PAINTING INSTRUCTIONS
Note: If painting mud guards, perform a mud guard test fit to ensure correct fit and application prior to painting.
1. Clean mud guard with a soap and water solution to remove dirt and other contaminates.
2. Sand painting surface with 320 grit sand paper.
3. Apply a coating of flexible primer-adhesion promoter.
4. Apply a flexible paint as directed by the paint manufacturer.
REAR MUD GUARD INSTALLATION INSTRUCTIONS
Package Contents
•

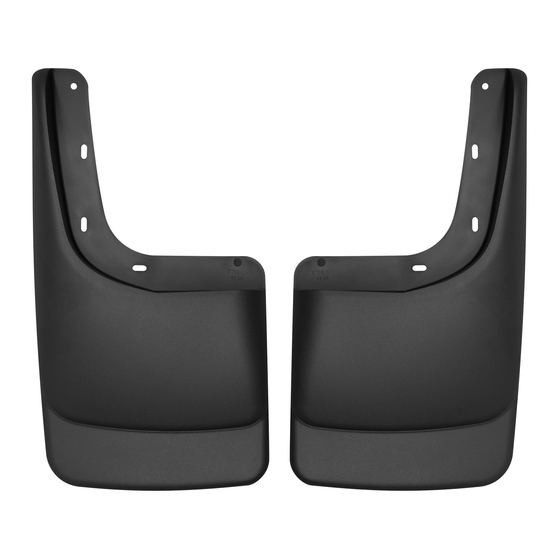

Driver & passenger side rear mud guard
•
#10 SEM screw (qty. 8)
•
U-Clip (qty. 2)
•
Paint Protection Film (1 set)
•
Instruction sheet
5759
PART NO.
5759 Rear Instructions (2 SIDED DOC)FR1.doc
Rev: 0
