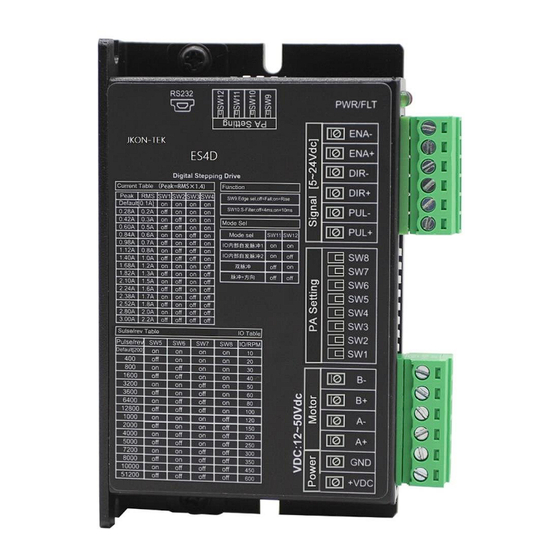

ES4D
STEPPING DRIVE User's Manual
All rights reserved
[Please read this manual carefully before use to avoid damage the drive]
第 1 页 共 11
Shenzhen ECON Technology Co.,Ltd
Advertisement
Table of Contents
Related Manuals for Econ JKON-TEK ES4D
Summary of Contents for Econ JKON-TEK ES4D

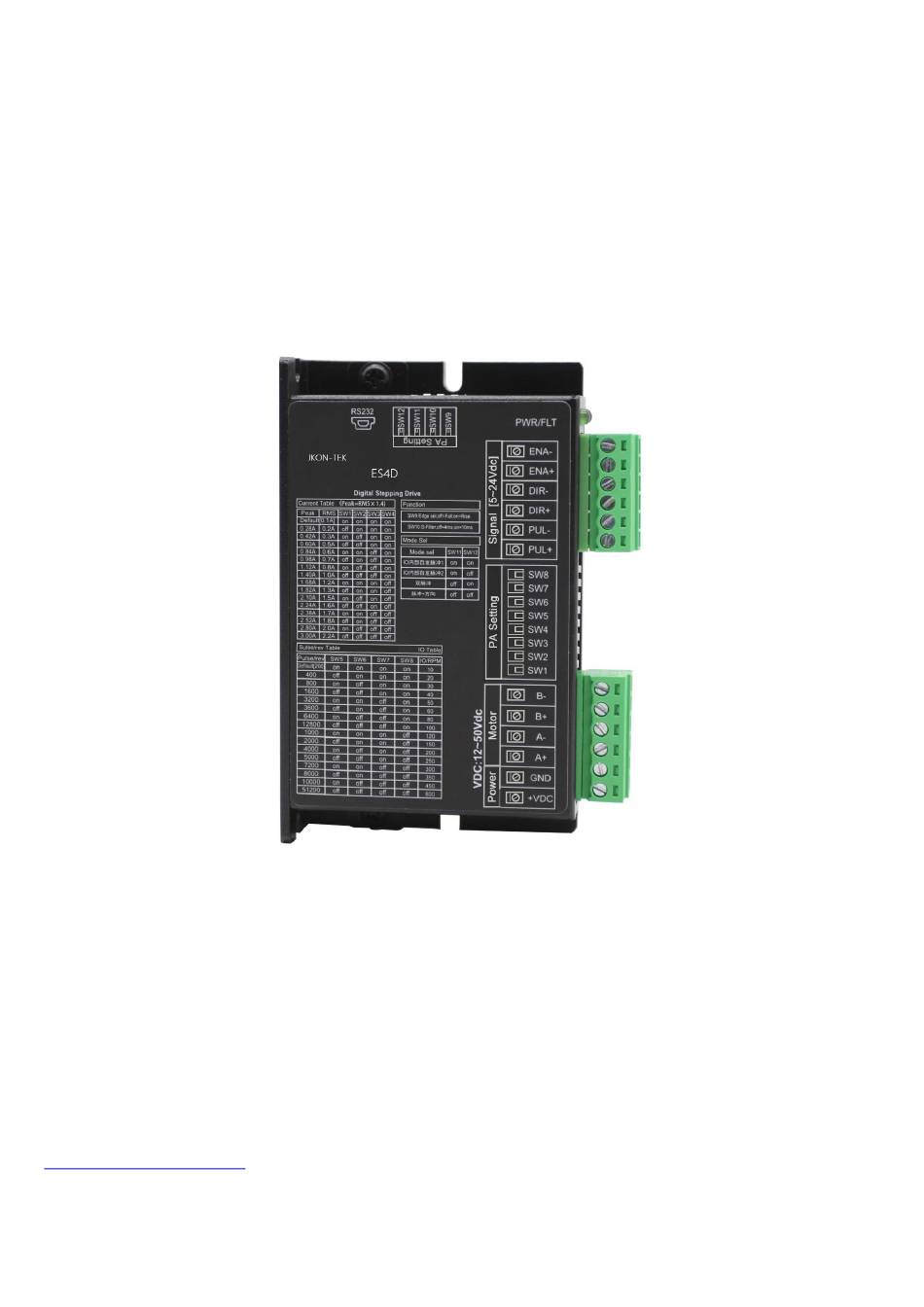

- Page 1 JKON-TEK Shenzhen ECON Technology Co.,Ltd ES4D STEPPING DRIVE User's Manual © 2022 Shenzhen ECON Technology Co.,Ltd. Version 2.0 Add: Room A202,C area of 1 Hall ,China Asia Center,Gangtou Road,Shajing Street,Bao’an Area,Shenzhen Tel: +86 136 2096 1024 E-mail:enquiry@hybridservo.com technical01@hybridservo.com All rights reserved [Please read this manual carefully before use to avoid damage the drive] 第...
-
Page 2: Table Of Contents
JKON-TEK Shenzhen ECON Technology Co.,Ltd Catalog Foreword ....................................2 1 Overview ....................................3 1.1 Product Introduction ................................3 1.2 Characteristics ..................................4 1.3 Application areas .................................. 4 2 Performance Index ................................4 2.1 Electrical characteristics ............................... 4 2.2 Use environment ................................... 4 3 Installation .................................... -
Page 3: Overview
JKON-TEK Shenzhen ECON Technology Co.,Ltd caused by improper operation or product abnormalities. Due to product improvements, the contents of this manual are subject to change without notice. Our company will not be responsible for any modification of the product by the user. -
Page 4: Characteristics
JKON-TEK Shenzhen ECON Technology Co.,Ltd technology, drive control algorithm using advanced variable current technology and advanced frequency technology, the driver heat small, motor vibration small, smooth operation. USERS can set 200 ~ 51200 within the arbitrary subdivision and rated current within the arbitrary current value, to meet the needs of most applications. -
Page 5: Installation
JKON-TEK Shenzhen ECON Technology Co.,Ltd Can not be placed next to other heating equipment, to avoid dust, oil mist, corrosive Occasion gases, humidity is too large and strong vibration sites, prohibited combustible gases and conductive dust。 Using Environment Temperature -10℃ ～ +50℃... -
Page 6: Port Definition
JKON-TEK Shenzhen ECON Technology Co.,Ltd 4.2 Port Definition 4.2.1 Lamp status indication The green LED is the power indicator, which is always on when the driver is connected to the power; when the driver cuts off the power, the LED goes out. Red Led is the failure indicator, when there is a failure, the indicator lamp for 3 seconds cycle flashing;... - Page 7 JKON-TEK Shenzhen ECON Technology Co.,Ltd Name Function HIGH-SPEED SIGNAL: Pulse rising edge is effective, PL high level 4.5 ~ 28 VDC, Low PUL+ Level 0 ~ 0.5 v. In order to respond reliably to the pulse signal, the pulse width should be greater than 1.5 s.
- Page 8 JKON-TEK Shenzhen ECON Technology Co.,Ltd 第 8 页 共 11...
- Page 9 JKON-TEK Shenzhen ECON Technology Co.,Ltd Control signal sequence diagram: To avoid some mistakes and deviations, Pul, Dir, and Ena should meet certain requirements, as shown in the following figure: Notes: T1: Ena (enable signal) should be at least 5 s ahead of Dir, determined as high. Generally, it is recommended that ENA + and ENA-hover.
-
Page 10: Dial Definition
JKON-TEK Shenzhen ECON Technology Co.,Ltd If using a regulated switching power supply, be aware that the output current range of the switching power supply must be set to maximum. Please note: When wiring, pay attention to the positive and negative poles of the power supply, do not reverse connection;... -
Page 11: Warranty And After-Sales Service
JKON-TEK Shenzhen ECON Technology Co.,Ltd 4000 5000 7200 8000 10000 512000 Note: The above subdivides into the standard product ES4D subdivides, other subdivides may according to the customer demand derivation, can set subdivides the scope between 200-51200 any value. 5.3 Function setting Function SW9:Edge selection, OFF=Fall（Falling Edge ）;ON=Rise（Rising Edge）...
