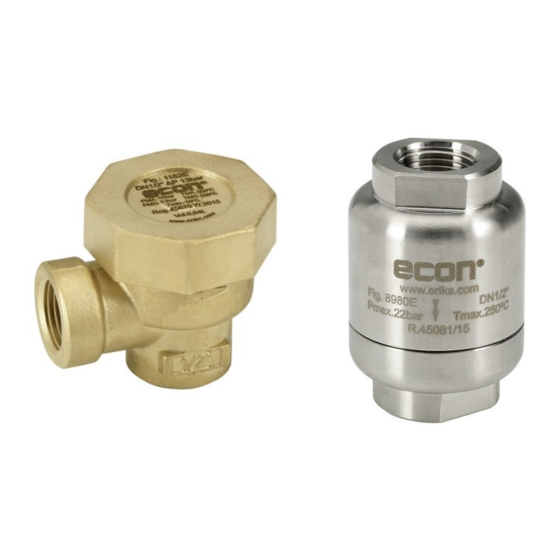

ECON Thermostatic Steam Traps fig. 1182E, 8980E
Content
1. ERIKS operating companies
2. Product description
1. ERIKS operating companies
ECON Thermostatic Steam Traps are being delivered by several ERIKS operating companies on
a worldwide basis. In this manual these will be referred to as 'ERIKS', the individual terms of
delivery of the ERIKS operating company having executed the order are applicable.
2. Product description
The ECON Thermostatic Steam Traps are designed according the information on our website,
www.eriks.com
and should be used in accordance with the applicable pressure-temperature rating
as stated on this website. Thermostatic Steam Traps are provided with a nameplate. The marking
makes the identification of the Thermostatic Steam Traps easier and contains:
-
Figure number
-
Limiting pressure and temperature
-
ECON

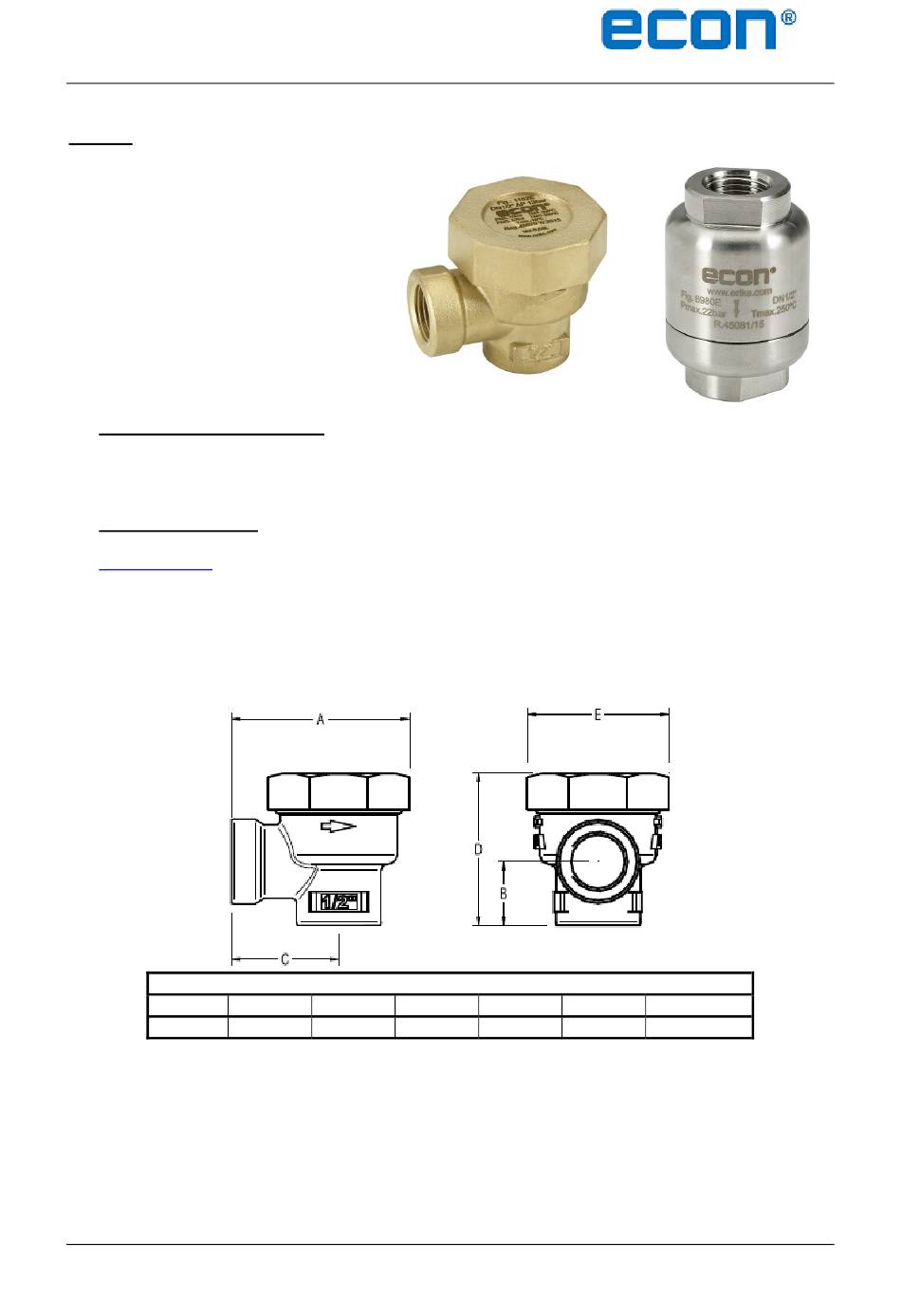

The dimensions of the Thermostatic Steam Traps with figure number 1182E and 8980E are
shown below.
Size DN
A (mm)
1/2"
63
ECON Thermostatic Steam Traps fig. 1182E, 8980E
Rev. 3
Figure 1182E
B (mm)
C (mm)
D (mm)
22,5
38
54
Proven Quality since 1892
E (mm)
Weight (kg)
50
0,5
www.eriks.com
