- Page 1 Shenzhen ECON Technology Co.,Ltd Shenzhen ECON Technology Co.,Ltd www.hybridservo.com...
-
Page 2: Table Of Contents
Shenzhen ECON Technology Co.,Ltd Contents Introduction..........................3 Overview..........................3 Features...........................3 Applications..........................3 Mounting the Drive........................4 Connecting the Power Supply....................5 Transformer Selection.......................5 Voltage..........................5 Current..........................6 Connecting the Motor.......................6 Four Lead Motor .........................6 Eight Lead Motor........................6 Connecting Input Signals......................7 Connector Pin Diagram.......................7 Connection Examples: STEP & DIR..................7 Internal Circuit Diagram.....................7... -
Page 3: Introduction

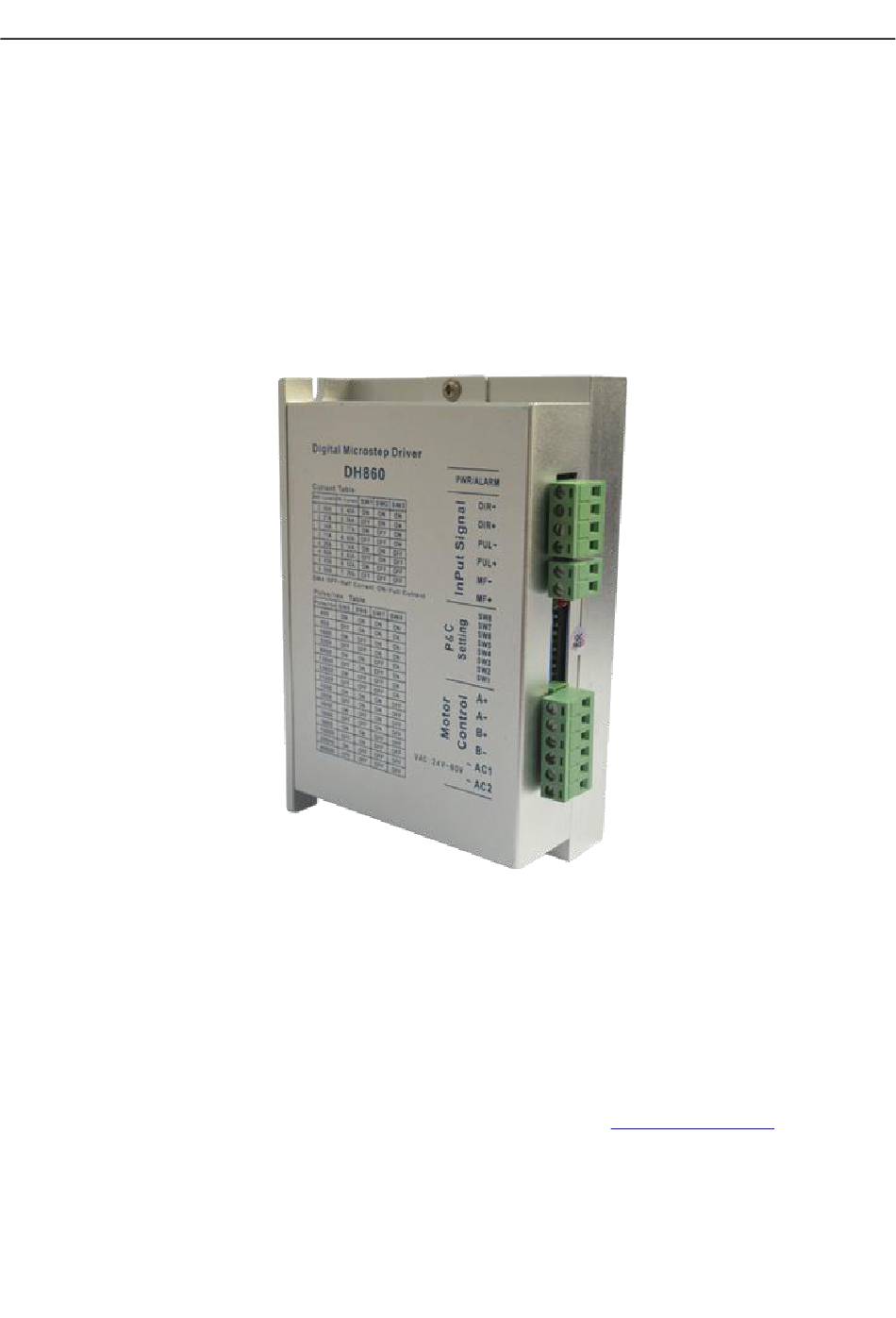

Introduction Overview DH860 is the new generation high performance fully digital stepper drive which base on 32bit DSP with a advanced algorithm .the power supply range is AC24~80V. it can drive frame 57---110mm 2 phase stepper motor . Ultra low noise and high smoothness at middle/low speed ,and high torque at high speed, which can be applied to different speed control applications. -
Page 4: Mounting The Drive
Shenzhen ECON Technology Co.,Ltd Mounting dimension(unit:mm） You can mount the drive on the wide or the narrow side of the chassis using #2 screws.If possible,the drive should be securely fastened to a smooth,flat metal surface that will help conduct heat away from the chassis. If this is not possible,then force airflow from a fan may be required to prevent the drive from overheating. -
Page 5: Connecting The Power Supply
When choosing a transformer, there are many things to consider.You must decide what size of (in terms of voltage and current) is needed for your application. ECON Technology recommend HB500-60 transformer for drive:DH860 Voltage Your motor can provide more torque at higher speeds if a higher power supply voltage is used. Please consult the speed-torque curves later in this manual for guidance. -
Page 6: Connecting The Motor
Shenzhen ECON Technology Co.,Ltd can be expected to draw only half the supply current that it would with a 24 volt supply. We recommend the following selection procedure: 1. If you plan to use only a few drives, get a power supply with at least twice “per phase” current rating of the step motor. -
Page 7: Connecting Input Signals
Shenzhen ECON Technology Co.,Ltd Connecting Input Signals Remark:24V power need to series a 1.2k resistance Connector Pin Diagram Internal Circuit Diagram Connection Examples:STEP&DIR... -
Page 8: Connection Examples:en
Shenzhen ECON Technology Co.,Ltd Connection Examples:EN Connecting an input to a switch or relay Connecting another drive to EN Most PLC use NPN Proximity Sensor... -
Page 9: Configuring The Drive
50%. Three of the small switches on the front of the DH860 drive are used to set the percent of rated current that will be applied to the motor: SW1,SW2 and SW3. Please set them according to the illustration below... -
Page 10: Step 2: Setting The Current
Shenzhen ECON Technology Co.,Ltd 4.45 3.71 5.14 4.28 5.83 4.86 6.52 5.43 7.20 6.00 Step 3:Setting Idle Current Motor heating and power consumption can also be reduced by lowering the motor current when it is not moving. One small switch on the front of drive can set the idle current,SW4 is ON,then the current is 100%,when SW4 is OFF,the current is 50%. -
Page 11: Reference Materials
Shenzhen ECON Technology Co.,Ltd Reference Materials Drive Interface Description Name Function Description Power light When power on ,the green light is on ALARM Over current/under voltage/over If the drive Over current/under voltage/over voltage, the red light is on voltage displaying light Pulse signal: In single pulse (pulse/direction) mode, this input represents pulse signal, each falling edge active;... -
Page 12: Motor Outlines
Shenzhen ECON Technology Co.,Ltd Motor Drawing Motor Length(L) QL86HB65-04A 65±1mm QL86HB80-04A 80±1mm QL86HB118-04A 118±1mm QL86HB156-06A 156±1mm QL86 Outline Drawing Motor Length(L) QL110HB115-06A 115±1mm QL110HB150-06A 150±1mm QL110HB165-06A 165±1mm QL110HB201-06A 201±1mm QL110 Outline Drawing... -
Page 13: Torque-Speed Curves
Shenzhen ECON Technology Co.,Ltd Torque-Speed Curve QL86 with DH860 Connection:8 leads 48VDC Power supply QL110 with DH860 Connection:4 leads 80VDC Power supply...
