Installation & Operation Manual
Content
1. ERIKS operating companies
2. Product description
7. Installation
10. Possible danger
Fig. 512
1. ERIKS operating companies
ECON safety valves are being delivered by several ERIKS operating companies on a worldwide
basis. In this manual these will be referred to as 'ERIKS', the individual terms of delivery of the
ERIKS operating company having executed the order are applicable.
2. Product description
The ECON safety valves fig 512 / 517 / 518 are type-tested acc ISO 4126-1. They are approved
PED category IV (module B+D).
Information about the safety valves can be found in the according datasheet and capacity
The safety valves may only be used in accordance with the applicable pressure-temperaturerating
as stated in its datasheet.
The marking makes the identification of the valve easier and contains:
- ECON logo + figure number
- size
- CE marking and identification number of the inspection authority
- flow area
- sealing material
- serial number
- heat number
- set pressure
ECON safety valves Fig. 512, 517 and 518
Rev. 1

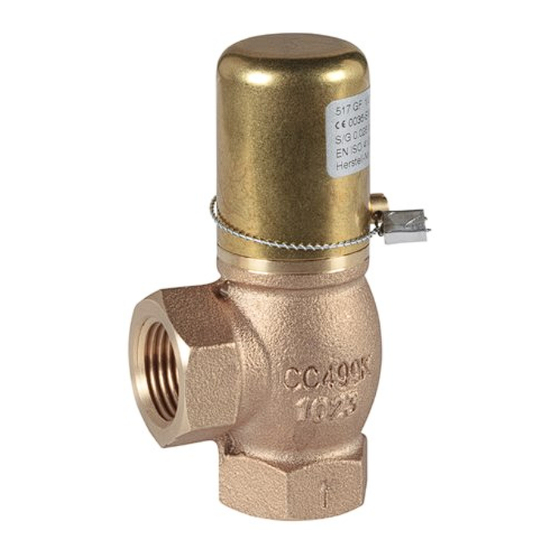

Fig. 517
Proven Quality since 1892
Fig. 518
table.
www.eriks.com
Advertisement
Table of Contents
Related Manuals for Econ Fig. 517
Summary of Contents for Econ Fig. 517
- Page 1 ERIKS operating company having executed the order are applicable. 2. Product description The ECON safety valves fig 512 / 517 / 518 are type-tested acc ISO 4126-1. They are approved PED category IV (module B+D). Information about the safety valves can be found in the according datasheet and capacity table.
- Page 2 6. Application ECON safety valves with threaded connection are mainly applied in the process industry and are suitable for gasses and liquids. This type of safety valve is also suitable as an overflow. For the use of extreme conditions e.g.
- Page 3 19 33 35 101 34 0,7 25 40 41 119 41 1 1 ¼ 30 45 45 140 52 2 1 ½ 38 50 51 166 58 2,6 50 60 60 172 70 3,6 ECON safety valves Fig. 512, 517 and 518 www.eriks.com Rev. 1...
- Page 4 Installation & Operation Manual Proven Quality since 1892 7. Installation During the assembly of the ECON safety valves, the following rules should be observed: make sure before an assembly that the safety valves were not damaged during the transport or storage.
- Page 5 Seat damaged by foreign Replace the valve particles Medium contaminated Clean the valve and install a dirt screen Leakage at the connection Thread connection not right Check the connection ECON safety valves Fig. 512, 517 and 518 www.eriks.com Rev. 1...
- Page 6 A combination of different materials should always be mentioned prior to the purchase of our products in order for us to give the best possible advice on a safe functioning. ECON safety valves Fig. 512, 517 and 518 www.eriks.com Rev. 1...
