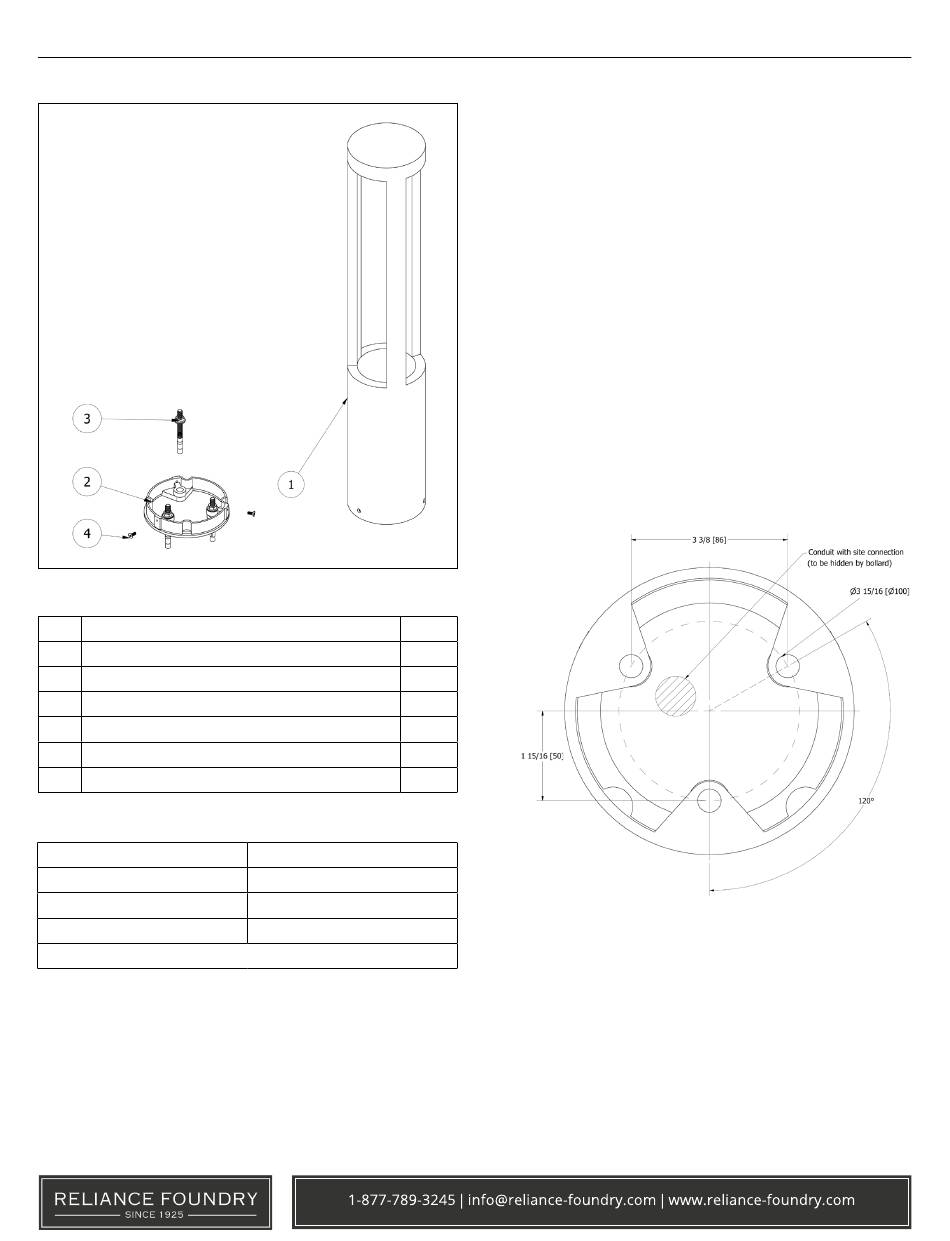

R-9836 Lighted Bollard
Parts List
#
PART
1
R-9836 Lighted Bollard body
2
R-9836 Lighted Bollard base
3a
3/8" x 3 ½" Concrete wedge anchor
3b
3/8" Washer
3c
3/8" Hex nut
4
#10-24 Flat head screw
Installation Equipment
Broom/pressure washer
Chalk
3/8" wrench
Measuring Tape
Hammer drill or rotary hammer with 3/8" masonry drill bit
Note
• Always follow applicable site and safety codes.
• Electrical products must be installed by a qualified individual.
• Ensure the power supply is protected by a breaker. The use
of a surge protector is recommended.
• To protect the finish, keep bollards in original packaging
until the moment of installation.
• Handle bollards with care to avoid damage.
QTY
1
1
3
3
3
3
#10 hex key
Vacuum
Level
Hammer
1-877-789-3245 | info@reliance-foundry.com | www.reliance-foundry.com
INSTALLATION GUIDE
Before Installation
• Check for hazards: Always check for hazards such as water
pipes, gas lines, and underground wiring before drilling. All
applicable sites and safety codes should be followed.
• Clean the surface: Dirt and debris can affect the line of
sight and disrupt placement of the bike racks. Use a broom
or pressure washer to clean the concrete surface prior to
installation.
• Study the site plans: The project's architect creates site
plans. Refer to site plans to locate and mark precise center
points of each bollard. Ensure sure that the electrical
conduit with the site connection point is positioned
underneath the bollard. For secure installation, ensure
there is a minimum radius of solid concrete around each
mark.
• Designate your hole marking: Use the bollard base and
chalk to mark the centre points of each drop-in anchor.
Make sure the centre of the base coincides with bollard's
center point marked on the concrete surface.
• Remove the bollard base.
Note: make sure that the conduit for the electrical
connections opens approximately at the center-point of the
bollard.
