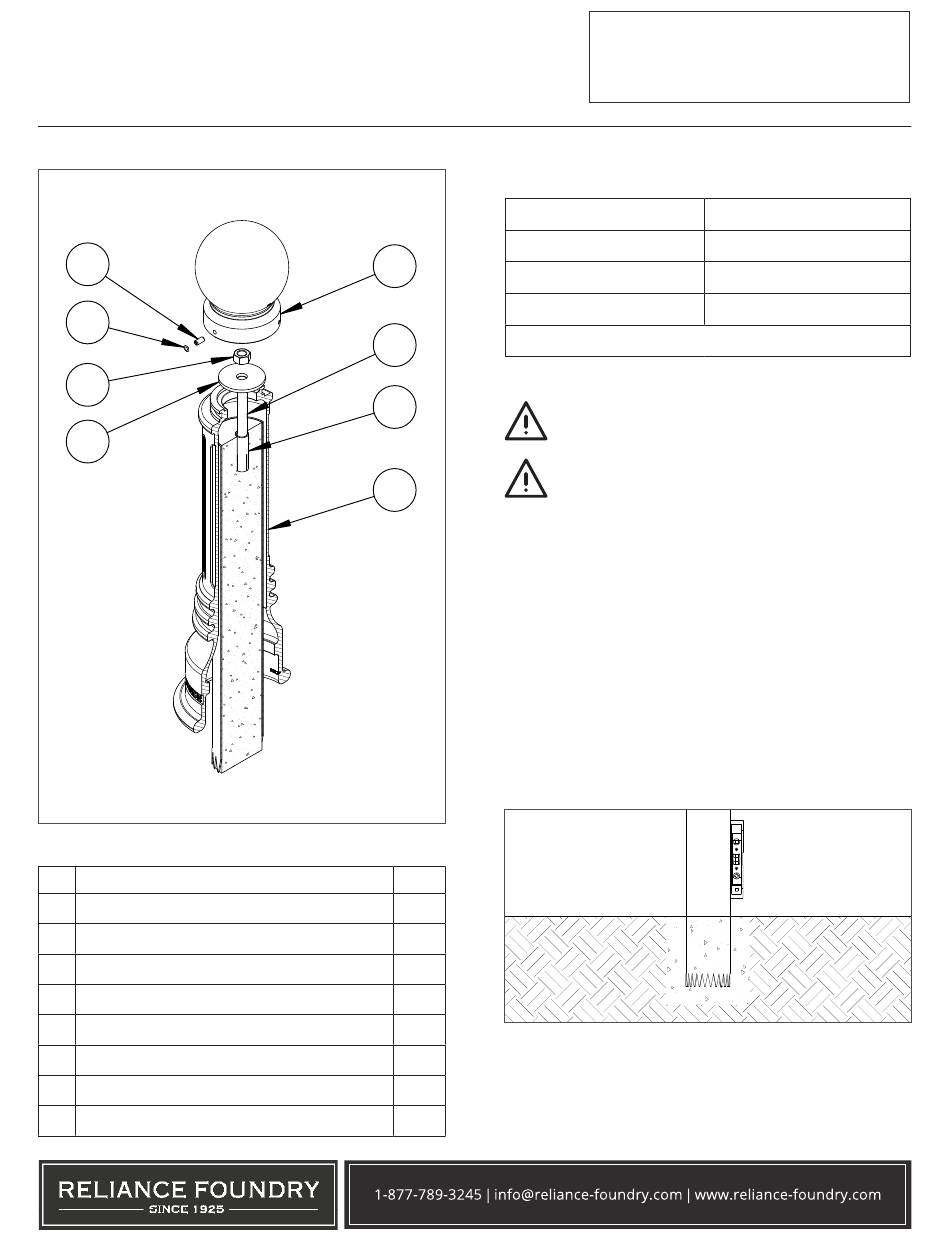

Reliance Foundry R-7593 Installation

Metal Decorative Bollard Cover
Installation
Bollards shown in the diagrams may not be the same model as the bollards shipped in this order. This does not affect the integrity of the installation.
7
8
6
5

Parts List

# PART
1 Decorative Bollard Cover
2 Decorative Bollard Cap
3 Drop-In Concrete Insert 3/4"
4 Threaded Rod 3/4"
5 Washer 3/4"
6 Hex Nut 3/4"
7
Hexagon Socket Set Screw
8 Plastic Plug

Installation Equipment

2
4
3
1

Before Installation

STEP 1: Examine the pre-installed pipe bollard for signs
of damage. Any rust should be removed, and abrasions
should be covered. If the damage is beyond repair, a
new pipe bollard may need to be installed.
STEP 2: Hold a level vertically against the side of the
pipe bollard and ensure that it is plumb. Note: Any
damage or tilting of the pipe bollard can affect the
performance of the bollard cover.
QTY
AA
1
1
1
1
1
STEP 3: Clean and dry the pipe bollard. Debris can offset
1
measurements and the placement of the bollard cover.
3
STEP 4: Use chalk to mark the center point on the
3
concrete inside the pipe bollard.
1-877-789-3245 | info@reliance-foundry.com | www.reliance-foundry.com
Drop-In Concrete
3/16" Hex Key
1-1/8" Wrench
1" Masonry Drill Bit
3/4" Setting Tool
Hammer Drill or Rotary Hammer
To protect the finish, keep bollard covers in
packaging until exact moment of installation.
Handle with care to avoid scratching or
damaging bollard cover surfaces as abrasions
will lead to rust.
Insert
Vacuum
Chalk
Hammer
Level
