Reliance Foundry R-7535 Installation

R-7535
Decorative Bollard Installation
6
7
5
4

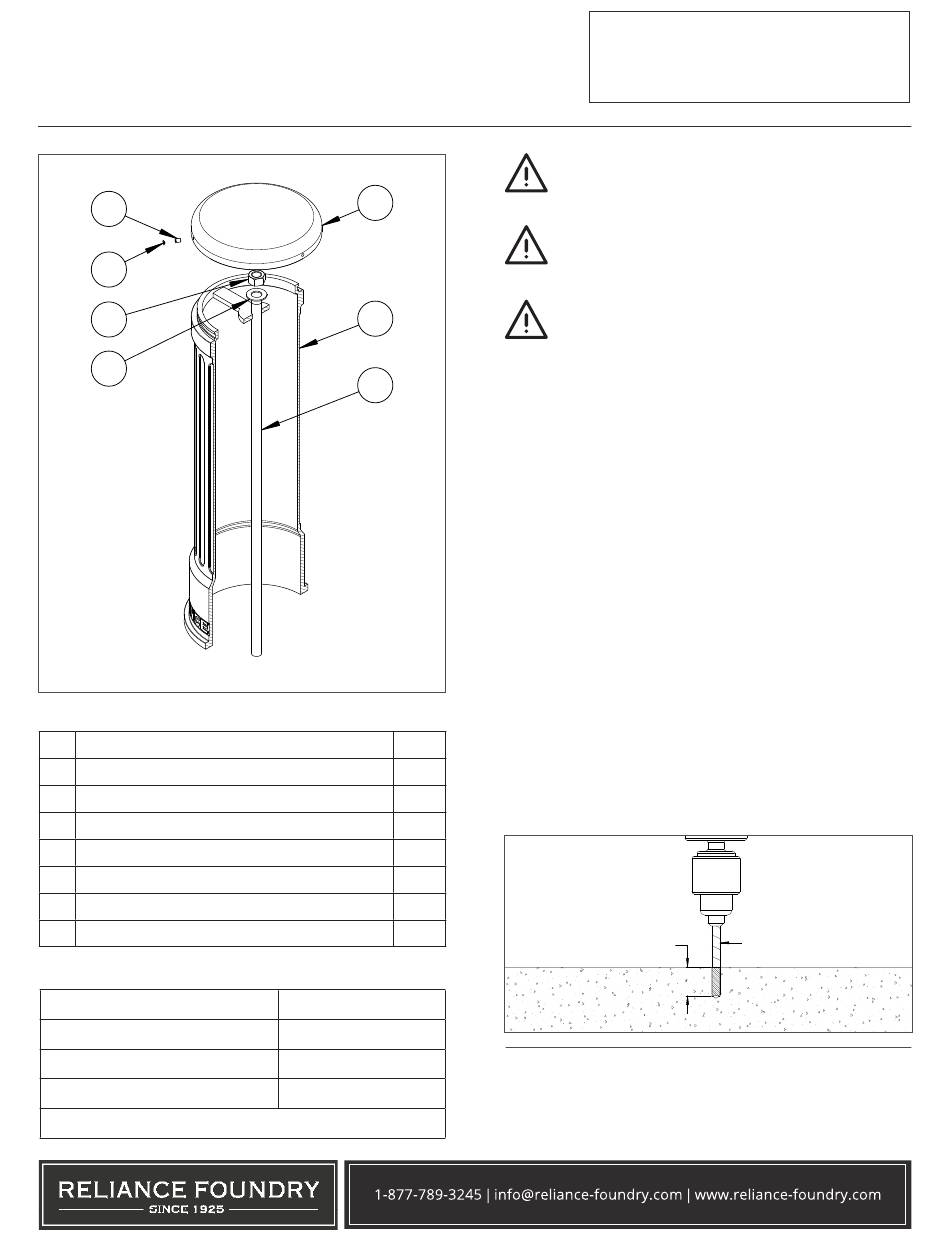

Parts List

# PART
1 Bollard Base
2
Bollard Cap
3
Threaded Bar 1"
4
Washer 1"
5 Hex Nut 1"
6 Hexagon Socket Set Screw
7 Plastic Plug

Installation Equipment

1-1/8" Masonry Drill Bit
1-1/2" Wrench
3/16" Hex Key
Hammer Drill or Rotary Hammer
Adhesive Anchoring System* (included)
2
1
3
QTY
1
1
1
1
1
3
3
Chalk
Caulking Gun
Level
Measuring Tape
1-877-789-3245 | info@reliance-foundry.com | www.reliance-foundry.com
Adhesive Anchoring
To protect the finish, keep bollards in original
packaging until exact moment of installation.
Handle with care to avoid scratching or damaging
bollard surfaces as abrasions will lead to rust.
Once scratched, bollards cannot be repaired
to original form without re-finishing the entire
surface.

Before Installation

STEP 1: Always check for hazards such as water pipes,
gas lines, and underground wiring before drilling.
STEP 2: Use a broom or pressure washer to clean the
concrete surface prior to bollard installation.
STEP 3: Study the site plans to locate and mark the
precise center point of each bollard. For secure
installation, ensure there is a minimum radius
concrete around each mark.

Drill the Hole

STEP 4: Tap a pilot divot hole in the center of each mark.
STEP 5: Set the depth control on the hammer drill (or
rotary hammer) to 4". If depth control is not available,
mark 4" on the masonry bit.
STEP 6: Drill a hole that has a 1-1/8" diameter and 4"
depth. Drill on high speed, using the hammer function
if available.
4"
Y
*
Please refer to the adhesive manufacturer's MSDS (included in
shipment) before using.
**
Adhesive anchor manufacturers such as www.powers.com
recommend a minimum radius of 5".
of solid
**
 1 1/8"
