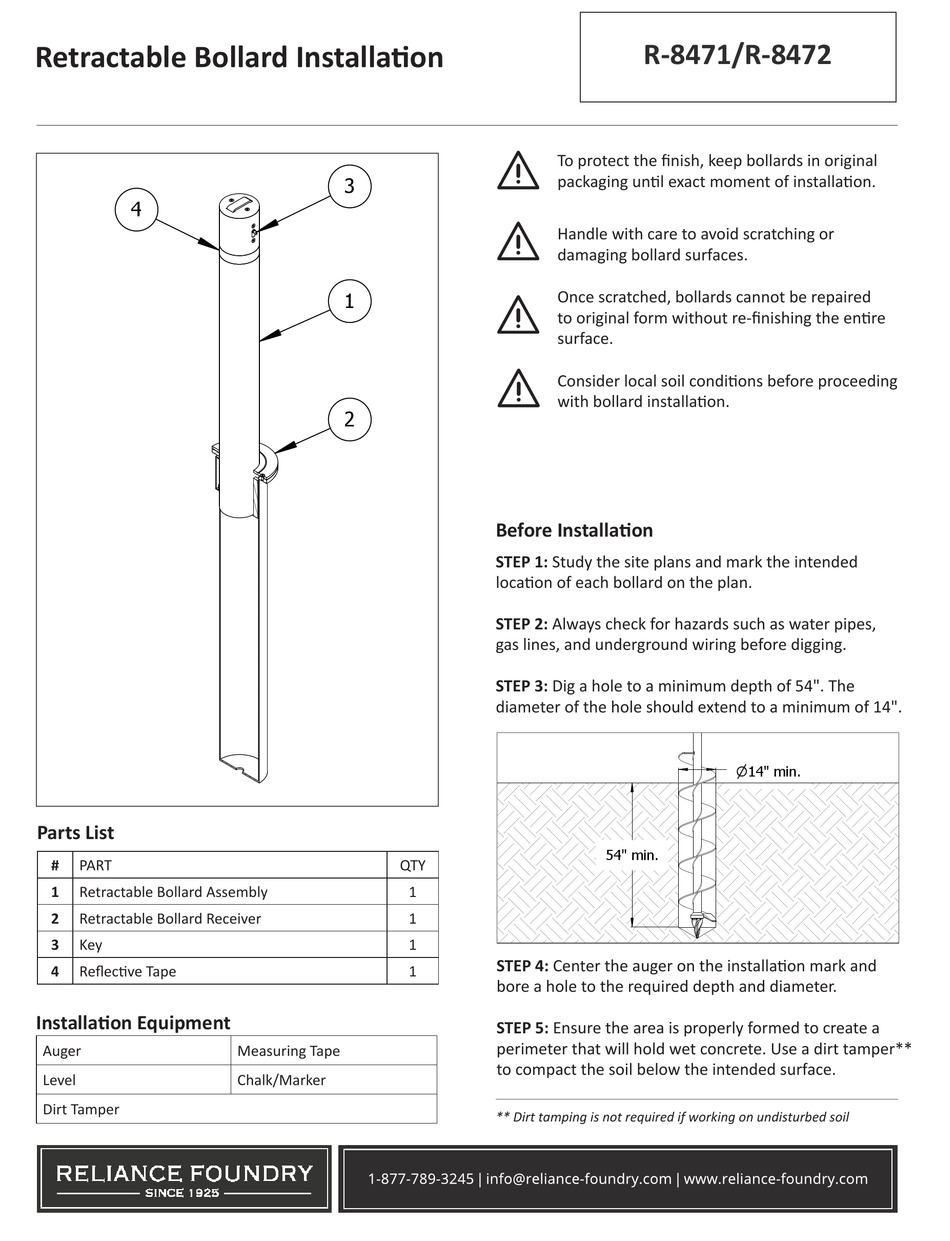

Reliance Foundry R-8471 Installation

Retractable Bollard Installation
4
Parts List
# PART
1 Retractable Bollard Assembly
2 Retractable Bollard Receiver
3 Key
4
Reflective Tape
Installation Equipment
Auger
Level
Dirt Tamper
3
1
2
QTY
1
1
1
1
Measuring Tape
Chalk/Marker
1-877-789-3245 | info@reliance-foundry.com | www.reliance-foundry.com
R-8471/R-8472
To protect the finish, keep bollards in original
packaging until exact moment of installation.
Handle with care to avoid scratching or
damaging bollard surfaces.
Once scratched, bollards cannot be repaired
to original form without re-finishing the entire
surface.
Consider local soil conditions before proceeding
with bollard installation.
Before Installation
STEP 1: Study the site plans and mark the intended
location of each bollard on the plan.
STEP 2: Always check for hazards such as water pipes,
gas lines, and underground wiring before digging.
STEP 3: Dig a hole to a minimum depth of 54". The
diameter of the hole should extend to a minimum of 14".
54" min.
STEP 4: Center the auger on the installation mark and
bore a hole to the required depth and diameter.
STEP 5: Ensure the area is properly formed to create a
perimeter that will hold wet concrete. Use a dirt tamper**
to compact the soil below the intended surface.
** Dirt tamping is not required if working on undisturbed soil
 14 " min.
