Reliance Foundry Martello Bollard Installation

R-7651-EM
Martello Bollard Installation
Revision A1

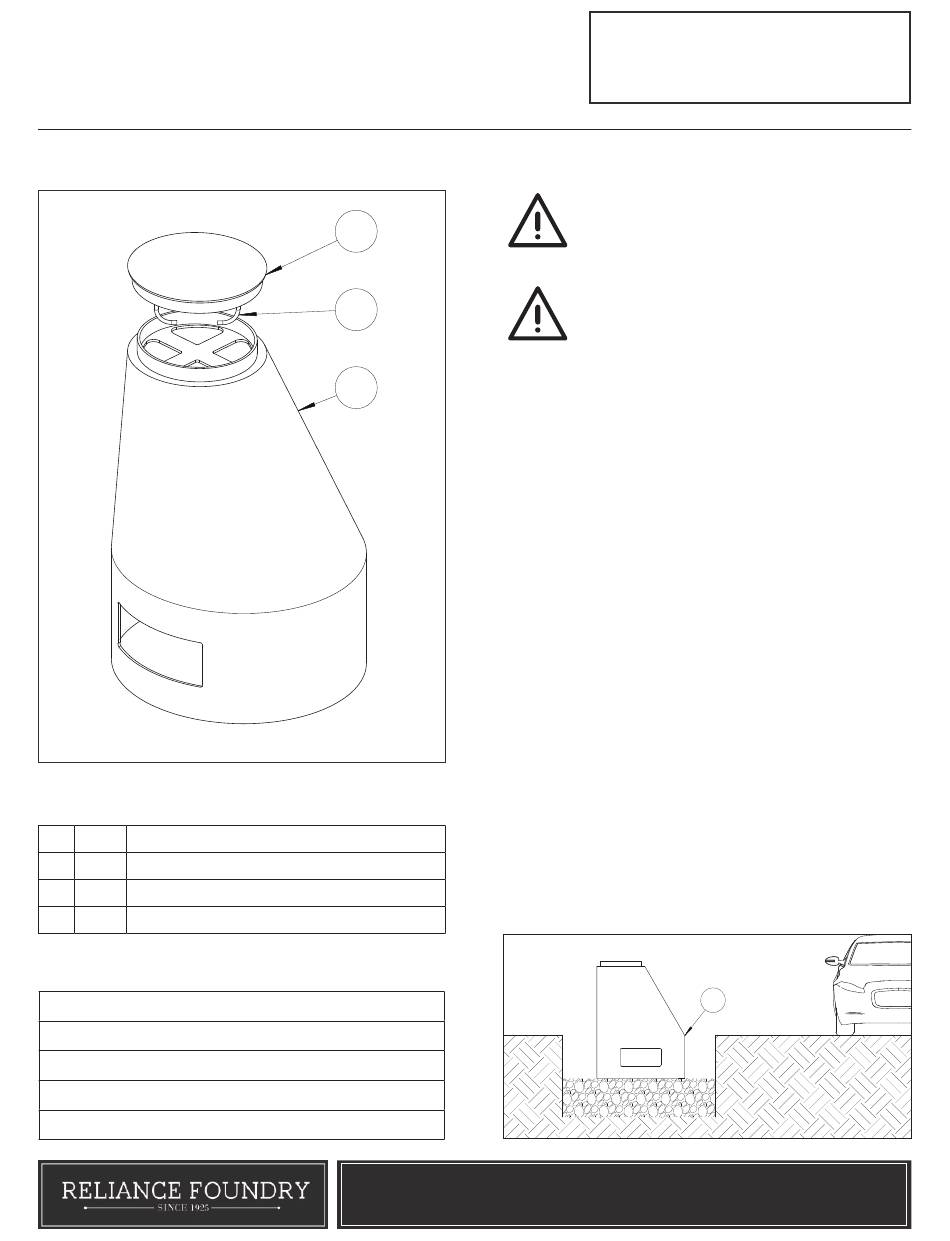

Parts Diagram
Parts List
# QTY PART
1 1 Bollard Base
Bollard Cover with Reflective Strip
2 1
Concrete Anchor
3 2
Installation Equipment
Measuring Tape
Trowel
Touch-up Paint
Chalk / Chalk Line
Shovel
Before Installation
2
3
STEP 1: Study Site Plans. Locate the intended center-
1
point of each bollard, then carefully measure and mark
each point to create a uniform arrangement.
Create Installation Holes
STEP 2: Dig a hole to create a foundation for the bollard.
The climate and the substrate will determine the size
requirements of the installation hole. In general, the
hole should be 12" deep, noting that the installation
hole should be dug to the depth of the area's frost line.
Local frost line depths can be obtained from the local
building inspection department. To determine the width
requirement of your hole, you may wish to consult a
professional engineer, however the hole should extend
a minimum of 8–12" from every side of the Martello
Bollard; larger width installation holes may be required
depending on location.
STEP 3: Position the bollard in the installation hole
so that the top of the footing will be flush with the
intended concrete surface. Ensure that the sloped side
of the Martello Bollard's body faces the road. If placed
at a corner, ensure that the sloped side faces the center
of the corner.
1 888 735 5680 | info@reliance-foundry.com | www.reliance-foundry.com
Embedded Footings
into Concrete
Bollards should be left in their packaging
until the exact moment of installation.
Ensure that the installation site does not
intersect any utility lines or other hazards
A
