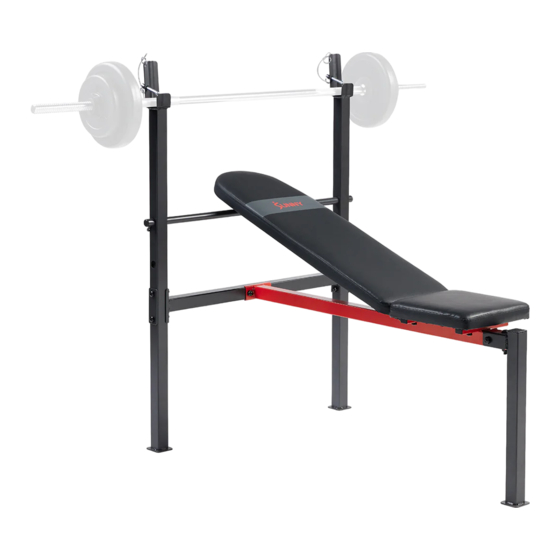

ADJUSTABLE STANDARD INCLINE
WEIGHT BENCH WITH RACK
SF-BH623008
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunny Health & Fitness SF-BH623008
Summary of Contents for Sunny Health & Fitness SF-BH623008

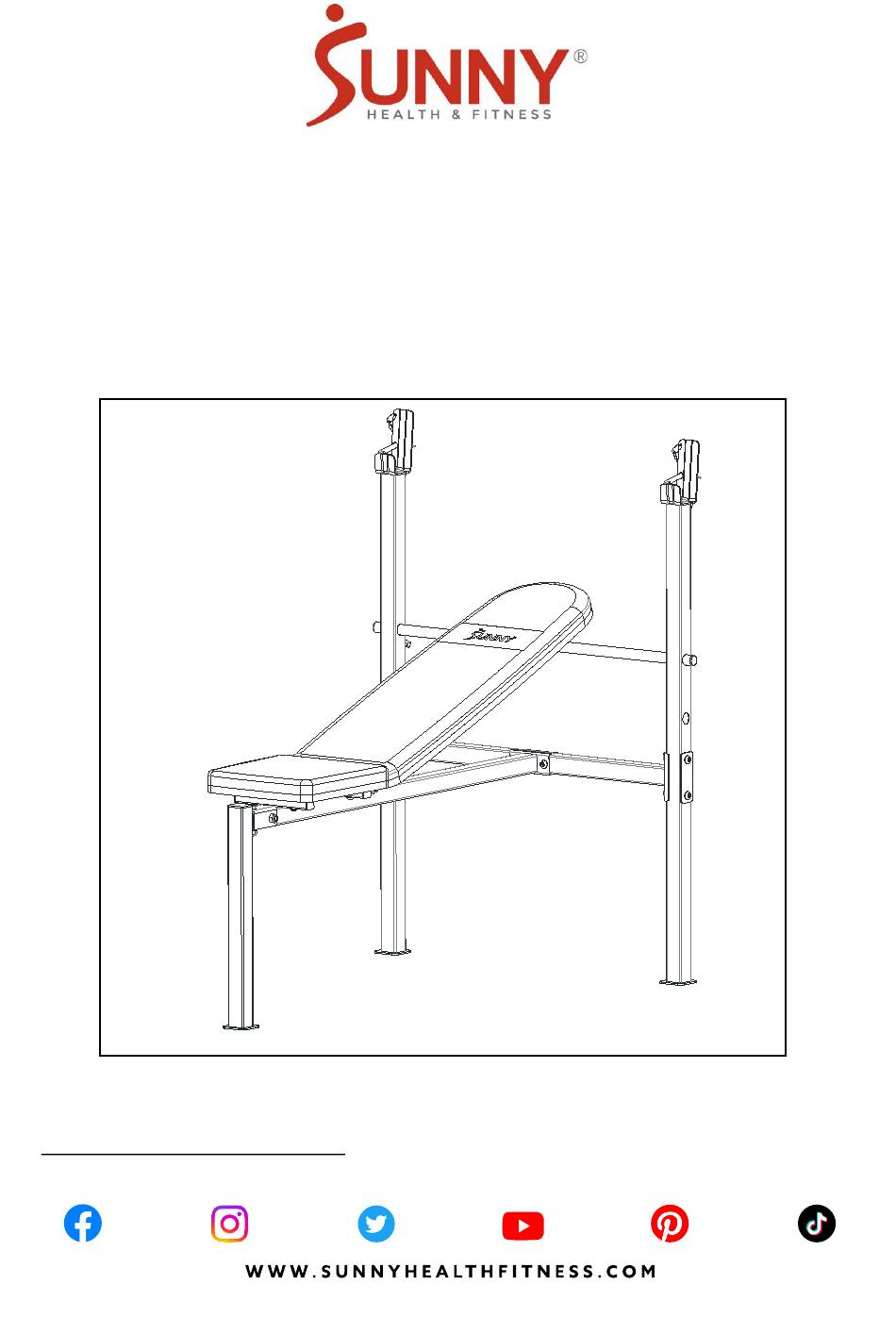

- Page 1 ADJUSTABLE STANDARD INCLINE WEIGHT BENCH WITH RACK SF-BH623008 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. -
Page 3: Pre-Assembly Check List
PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included. HEALTH & FITNESS ADJUSTABLE STANDARD INCLINE WEIGHT BENCH WITH RACK SF-BH623008 HARDWARE PACKAGE SF-BH623008 STEP 1 STEP 2 USER M ANU AL #8-M10*60mm 4PCS #10-M10 4PCS... -
Page 4: Hardware Package
HARDWARE PACKAGE SF-BH623008 HARDWARE PACKAGE STEP 1 STEP 2 #10-M10 4PCS #8-M10*60mm 4PCS #10-M10 4PCS #8-M10*60mm 4PCS #9- ∮ 20* ∮ 10.5*2.0mm 4PCS #9- ∮ 20* ∮ 10.5*2.0mm 4PCS STEP 3 #11-M12*145mm 1PC #13-M12 1PC #14-M8*45mm 10PCS #15-M8 10PCS #16- ∮ 16* ∮ 8.5*1.5mm 10PCS #12- ∮... - Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 1: #8-M10*60mm 4PCS Attach Rear Cross Tube (No. 3) to 2 #10-M10 4PCS #24-17-19mm 1PC Upright Posts (No.
- Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 3: #11-M12*145 1PC #14-M8*45mm 10PCS #16- ∮ 16* ∮ 8.5*1.5mm 10PCS Attach 2 Backrest Support Tubes (No. #24-17-19mm 2PCS #15-M8 10PCS 5) to the assembled Main Frame (No.
-
Page 7: Maintenance Instructions
MAINTENANCE INSTRUCTIONS DAILY MAINTENANCE Inspect and tighten all parts regularly. (Nuts, Bolts, Rubber Pads, Steel Brackets, etc.) Replace any worn or torn parts immediately. Check and ensure the equipment is levelled at all time. Check and tighten all adjustment pins/knobs regularly. WEEKLY MAINTENANCE Use damp cloth on plastic parts only, use dry cloth on metal frames. -
Page 8: Exploded Diagram
EXPLODED DIAGRAM 11 12... -
Page 9: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Hex Socket Head Main Frame M8*45mm Bolt Upright Post Spring Washer ∮16*8.5*1.5mm Rear Cross Tube Flat Washer ∮10*60mm Front Support Tube Safety Pin Backrest Support Alloy Wrap Tube Angle Adjustable □38*38*1.5mm Square End Cap ∮22*2.0mm Connection Plate Round End Cap...
