Summary of Contents for Sunny Health & Fitness SF-BH6811

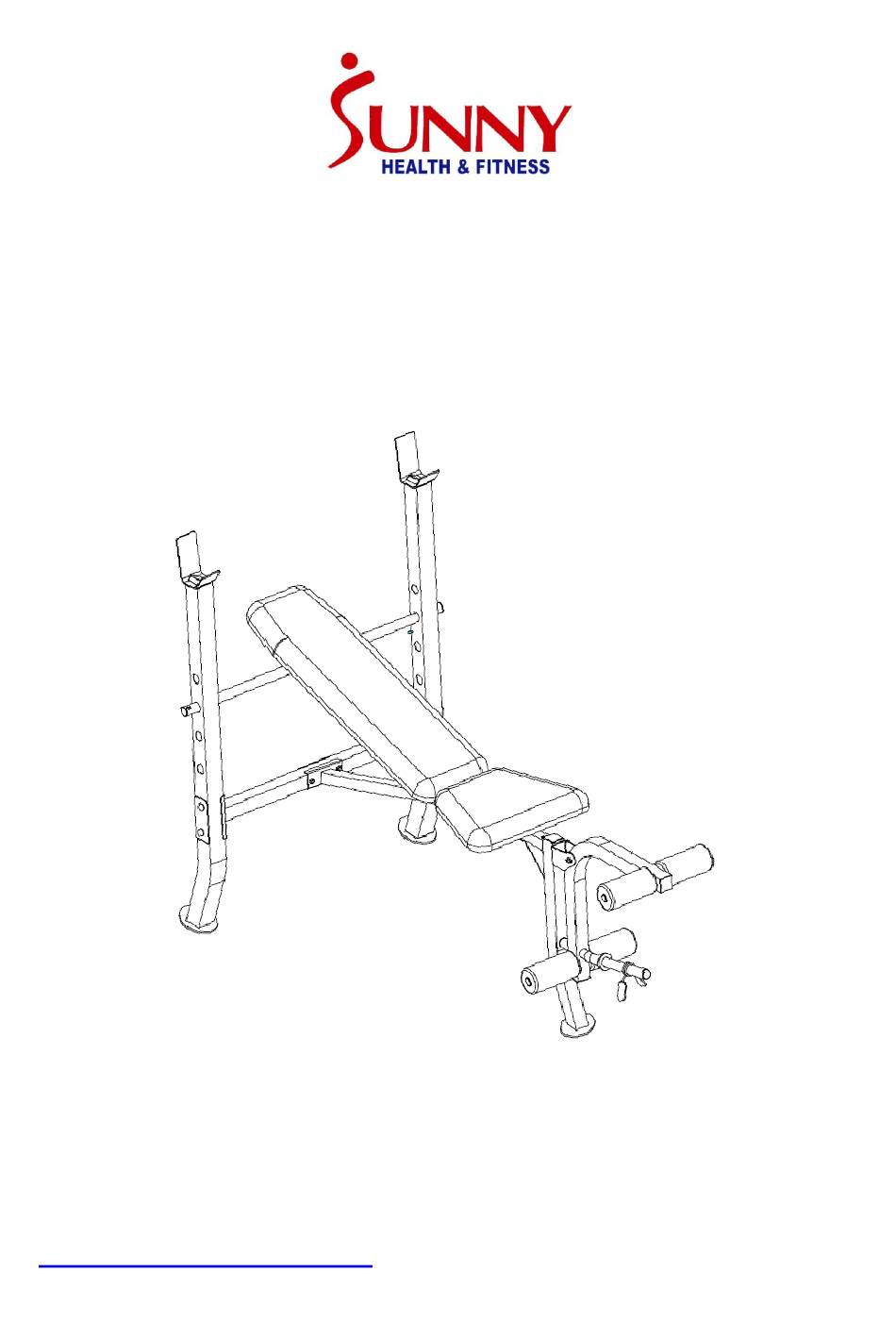

- Page 1 WEIGHT BENCH SF-BH6811 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL HAVE CONTACTED support@sunnyhealthfitness.com or 1- 877 – 90 SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. -
Page 3: Exploded Drawing
EXPLODED DRAWING... -
Page 4: Component Parts List
COMPONENT PARTS LIST... -
Page 5: Parts List
PARTS LIST Description Upright Beam Cross Brace Main Seat Support Diagonal Support Front Post Backrest Adjustment Bar Foam Roller Bar Backrest Support Leg Developer Seat Pad Backrest Board Bracket 4 3/8 x 3 3/8 Bracket 4 3/4 x 3 1/2 Spanner End Cap ○3/4... -
Page 6: Hardware Package
HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: The model number (found on cover of manual) The product name (found on cover of manual) ... - Page 7 ASSEMBLY INSTRUCTIONS #31 (3/4") (4pcs) #33 (M10) (4pcs) #21 (M10x2 5/8") 4pcs 31 33 STEP 1: Attach the Cross Brace (No. 2) to the Upright Beams (No. 1) using 2 Brackets (No. 13), 4 Carriage Bolts (No. 21), 4 Washers (No. 31) and 4 Aircraft Nuts (No. 33). Tighten and secure with Spanner (No.
- Page 8 #22 (M10x2 1/8") 2pcs #28 (M8x2 1/8") 1pc #32 (M8) (3pcs) #30 (5/8") (3pcs) #23 (M8x1 5/8") 1pc #33 (M10) (2pcs) #31 (3/4") (2pcs) #26 (M8x1 3/4") 1pc STEP 2: NOTE: All nuts for this step should only be hand tightened until assembly is completed. Attach the Main Seat Support (No.
- Page 9 #26 (M6x1 3/8") 4pcs #27 (M6x5/8") 4pcs #29 (1/2") (8pcs) STEP 3: IMPORTANT: The Backrest Supports (No. 8) must first be attached to the bar located on the Main Seat Support (No. 3) before continuing forward on this step. Slide the bottom ends (with holes) , of the Backrest Supports (No. 8) onto each side of the bar located on the Main Seat Support (No.
- Page 10 #25 (M10x2 3/8") 1pc #31 (3/4") (1pc) #33 (M10) (1pc) STEP 4: Attach the Leg Developer (No. 9) to the Front Post (No. 5) using 1 Hex Bolt (No. 25), 1 Washer (No. 31) and 1 Aircraft Nut (No. 33). Tighten and secure with Spanner (No. 14).
-
Page 11: Weight Capacity And Dimension
OPERATION & ADJUSTMENTS WEIGHT CAPACITY AND DIMENSION: 1. The maximum user weight on the bench is 250 lbs. 2. The maximum weight on the upright is 100 lbs. 3. The maximum weight capacity of the bench (including the user weight) is 350 lbs. 4. -
Page 12: Maintenance
MAINTENANCE IMPORTANT: Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. It is your responsibility to ensure that the equipment is maintained regularly. Any components found to be worn and/or damaged should be replaced before continuing use of the equipment.
