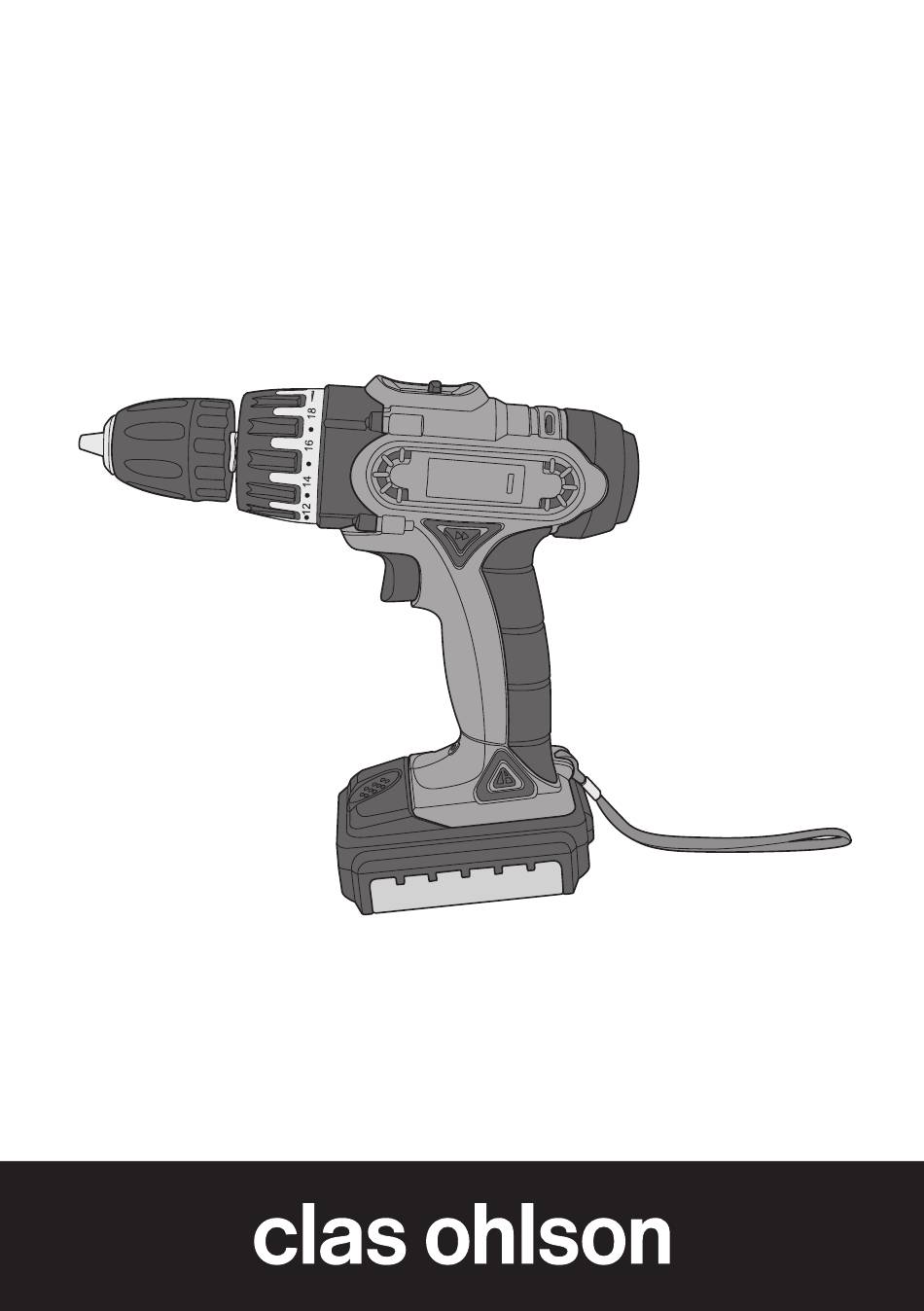

- Page 1 14.4 V Drill/Driver Art.no Model 18-3576 DJC124-144-UK Ver. 20170427...
-
Page 3: General Safety Instructions For Power Tools
14.4 V Li-ion Drill/Driver Art.no 18-3576 Model DJC124-144-UK Please read the entire instruction manual before use and save it for future reference. We reserve the right for any errors in text or images and for making any necessary technical changes to this document. If you should have any questions concerning technical problems please contact our Customer Services. -
Page 4: Personal Safety
d) Do not mistreat the mains lead. Never use the mains lead to carry or drag the power tool or to unplug it. Keep the mains lead away from heat, oil, sharp edges and moving parts. Damaged or tangled mains leads increase the risk of electric shock. e) When operating a power tool outdoors, use an extension lead suitable for outdoor use. - Page 5 e) Check for misalignment or binding of moving parts, for broken parts or anything else that may affect the operation of the power tool. If there is any damage it must be repaired before the tool can be used again. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean.
- Page 6 Special safety rules for rechargeable power tools • Use only the charger supplied. The product is only intended to be used indoors. • If a battery is warm, let it cool down before charging it. The temperature during battery charging should be between 0 °C and 40 °C (20–25 °C is recommended for optimum charging results).
-
Page 7: Description Of The Product
Description of the product 1. Keyless chuck 2. Torque setting, normal/hammer drill mode selector 3. Low/high gear selector 4. Forward/reverse selector 5. Trigger switch 6. LED light 7. Battery latch 8. Battery 9. Charger 10. To mains adaptor... -
Page 8: Operation
Charging Note: The mains adaptor is designed for indoor use only. 1. Press in the battery latch (7) on the battery and pull it forward out of the power tool. 2. Connect the lead to the charger (9) and the mains adaptor (10) to a wall socket. The green LED lights up, indicating that the mains adaptor is connected. -
Page 9: Troubleshooting
Hammer drill action • Used when drilling in masonry/concrete. Turn the control (2) all the way to the hammer symbol (after maximum torque and normal drilling mode settings). High/low gear selector • Select the gear you want with the selector (3) on the top of the power drill. Low 1 = 0 to 400 RPM High 2 = 0 to 1100 RPM •... -
Page 10: Care And Maintenance
When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner. Technical specifications DJC124-144-UK Model Supply voltage 14.4 V Rotation speed, stepless 0–400 RPM (low gear) -
Page 11: Declaration Of Conformity
Declares that this product complies with the requirements of the following directives and standards IMPACT DRILL/DRIVER 18-3576 DJC124-144-UK Machinery Directive EMC Directive 2006/42/EC 2014/30/EU EN 60745-1:2009 EN 55014-1:2006 +A11:2010 +A1:2009+A2:2011 EN 60745-2-1:2010 EN 55014-2:1997 EN 60745-2-2:2010 +A1:2001+A2:2008 Henrik Alfredsson Manager Technique & Quality Insjön, Sweden, 2017-04-27 CLAS OHLSON AB, SE-793 85 INSJÖN, SWEDEN... - Page 12 Norge Kundesenter tlf.: 23 21 40 00 faks: 23 21 40 80 e-post: kundesenter@clasohlson.no Internett www.clasohlson.no Post Clas Ohlson AS, Postboks 485 Sentrum, 0105 OSLO Suomi Asiakaspalvelu puh.: 020 111 2222 sähköposti: asiakaspalvelu@clasohlson.fi Internet www.clasohlson.fi Osoite Clas Ohlson Oy, Kaivokatu 10 B, 00100 HELSINKI...
