Summary of Contents for Clas Ohlson DJC123-108-UK

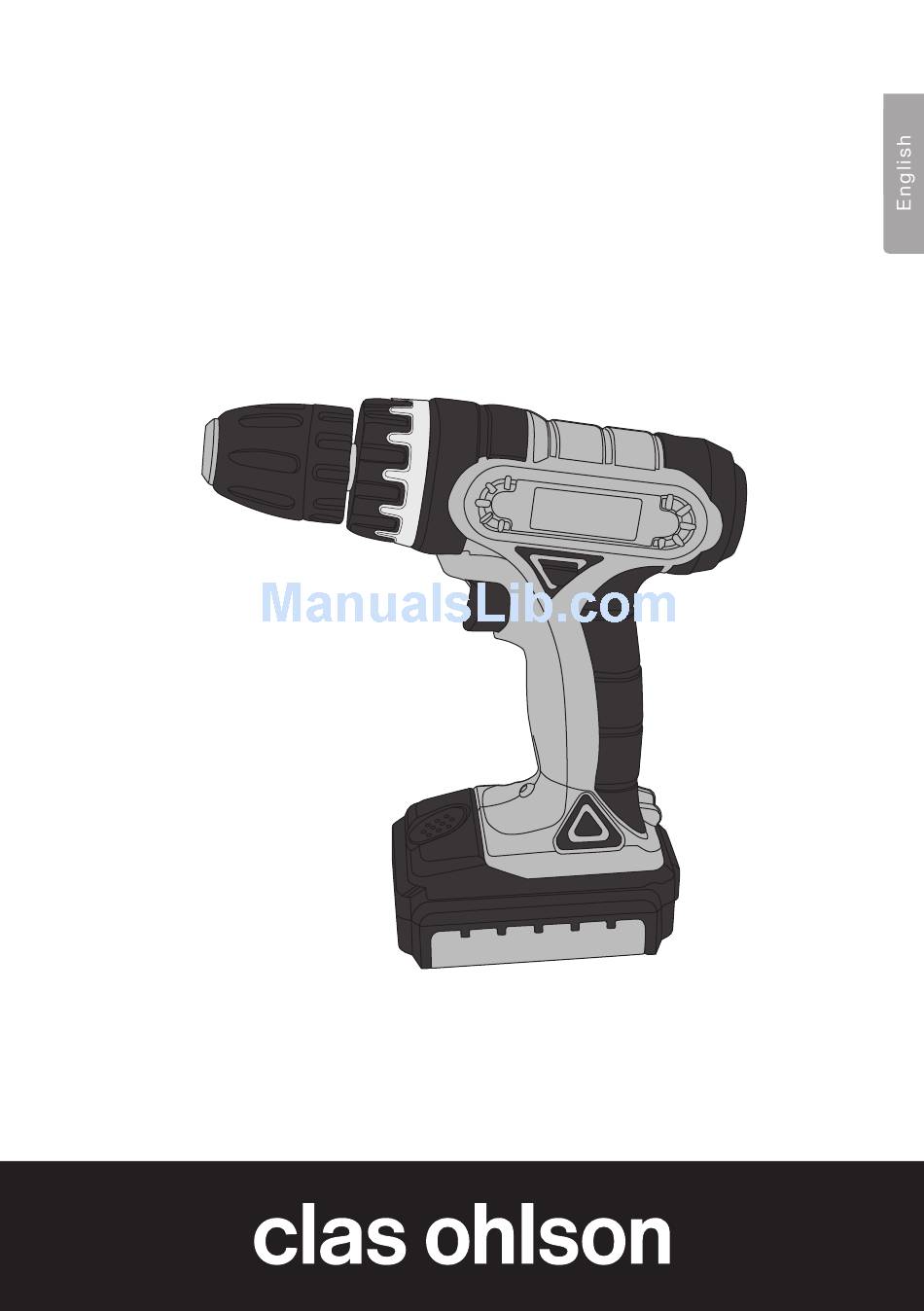

- Page 1 10.8 V Li-ion Drill Driver Art.no Model Ver. 20140922 18-3575 DJC123-108-UK Original instructions...
-
Page 3: Electrical Safety
10.8 V Li-ion Drill/Driver Art.no 18-3575 Model DJC123-108-UK Please read the entire instruction manual before use and save it for future reference. We reserve the right for any errors in text or images and for making any necessary technical changes to this document. If you should have any questions concerning technical problems please contact our Customer Services. -
Page 4: Personal Safety
e) When operating a power tool outdoors, use an extension lead suitable for outdoor use. Using an extension lead suitable for outdoor use reduces the risk of electric shock. If you need to use a power tool in a humid location, connect the tool to the power supply via a residual current device (RCD). - Page 5 g) Use the power tool, accessories, etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the type of work to be done. Using the power tool to do work for which it is not intended may result in a hazardous situation. 5) Using and servicing a rechargeable power tool a) Make sure that the switch is in the off position before you fit the battery.
-
Page 6: Care And Maintenance
• There is a risk of explosion if the battery is exposed to fire or high temperatures. Never put a battery in a fire. Never leave a battery in strong sunlight for a long time. • Before drilling in floors, ceilings or walls, check for hidden electric wiring, water pipes or anything else that might be damaged in the area where you intend to drill. -
Page 7: Description Of The Product
4. Description of the product 1. Keyless chuck 2. Torque setting 3. Forward/reverse selector 4. Trigger switch 5. LED lighting 6. Battery latch 7. Battery 8. Charger 9. Mains adaptor... -
Page 8: Description Of Operation
5. Charging Note: The mains adaptor is designed for indoor use only. 1. Press in the battery latch (6) on the battery and pull it forward out of the power tool. 2. Connect the mains adaptor (9) to a wall socket and connect the lead to the charger (8). -
Page 9: Troubleshooting
Setting the torque • The power tool has an adjustable clutch to set the required torque with the knob (2). When correctly set, the power tool stops tightening at the set torque to prevent the screw being over-tightened. • The setting depends on the type and size of the screw and the type of material. Always start with the lowest torque and increase the torque gradually for the result you want. -
Page 10: Technical Specifications
9. Technical specifications Model DJC123-108-UK Supply voltage 10.8 V Rotation speed, stepless 0–550 RPM Adjustable torque 19 step and drilling mode Max torque 11 Nm 0.8–10 mm Keyless chuck Ø 20 mm (wood), Ø 10 mm (steel) Drilling capacity Weight 1.3 kg... -
Page 11: Declaration Of Conformity
Declaration of Conformity CLAS OHLSON AB SE-793 85 INSJÖN, SWEDEN Declares that this product complies with the requirements of the following directives and standards DRILL/DRIVER 18-3575 DJC123-108-UK Machinery directive EMC directive Low Voltage directive 2006/42/EC 2004/108/EC 2006/95/EC EN 60745-1:2009 EN 55014-1:2006 +A11:2010... - Page 12 Norge Kundesenter tlf.: 23 21 40 00 faks: 23 21 40 80 e-post: kundesenter@clasohlson.no Internett www.clasohlson.no Post Clas Ohlson AS, Postboks 485 Sentrum, 0105 OSLO Suomi Asiakaspalvelu puh.: 020 111 2222 sähköposti: asiakaspalvelu@clasohlson.fi Internet www.clasohlson.fi Osoite Clas Ohlson Oy, Maistraatinportti 4 A, 00240 HELSINKI...
