TESA HEXAGON M4P-3 Instruction Manual

TESA HEXAGON M4P-3 Instruction Manual

4 probes conditioner with analog output

Advertisement

Quick Links

Instruction Manual
M4P-3
4 PROBES CONDITIONER WITH ANALOG OUTPUT
04130323
This document is confidential and only to be used internally by the company that has purchased one of the products
mentioned above. Before duplicating or transmitting it to third parties without any connection to the use of these instruments,
an official request has to be sent to TESA.
ME4812006 (4812.006.2303)
Version March 2023
Interface 4 probes inputs
:
TESA TECHNOLOGY
Measuring Instruments and Systems
Bugnon 38 – CH1020 Renens
Switzerland
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HEXAGON M4P-3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TESA HEXAGON M4P-3

  • Page 1 This document is confidential and only to be used internally by the company that has purchased one of the products mentioned above. Before duplicating or transmitting it to third parties without any connection to the use of these instruments, an official request has to be sent to TESA. TESA TECHNOLOGY Measuring Instruments and Systems Bugnon 38 –...
  • Page 2: Table Of Contents

    Instruction Manual for M4P-3 TABLE OF CONTENTS If you are using the PDF version of this document, you can directly access the required chapter by clicking on the respective line of the table of contents. INTRODUCTION ................................3 Introduction ................................3 Warning ...................................
  • Page 3: Introduction

    1.1 Introduction Dear user, We would like to thank you for having chosen TESA as your metrology partner. We thank you for your confidence in purchasing one of our 4 probes conditioner M4P-3 with analog output. Your metrological concerns are important to us and we are convinced that this instrument will meet your expectations.
  • Page 4: Presentation

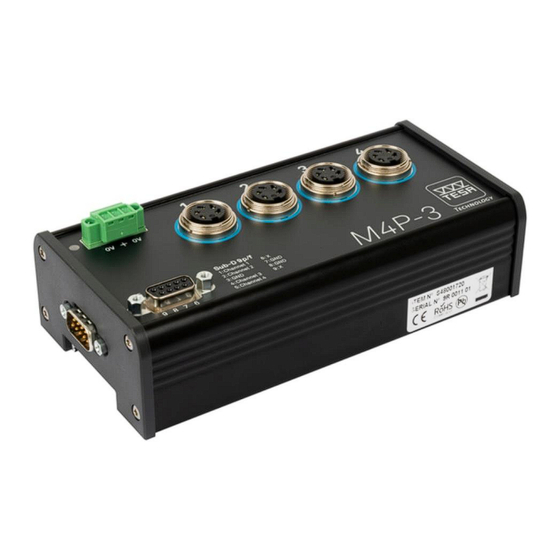

    Instruction Manual for M4P-3 PRESENTATION 2.1 General The M4P-3 is a conditioner module for TESA half-bridge type sensors. description Power supply is 24VDC (+/-9VDC), from an external power supply. The robust construction is made in an extruded aluminium for mechanical and electromagnetical properties.
  • Page 5: Dimensions

    Instruction Manual for M4P-3 2.3 Dimensions 155 mm 40 mm 75 mm 2.4 Power Possibility to connect up to 10 modules with same power supply as modules are supply interconnected. • External power supply (i.e PLC output): Please, close the ferrite filter (delivered in the box) until the clip snaps in. 10cm max.
  • Page 6: Gain Adjustment

    Instruction Manual for M4P-3 GAIN ADJUSTMENT !!!Caution!!! Do not open the box with power supply !!!Caution!!! 1. Dismount the cover carefully (4 screws TORX). 2. Remove the electronic card. 3. Put the jumper in the desired gain for each channel: 1V/mm (standard), 2.5V/mm, 5V/mm or 10V/mm.
  • Page 7 Instruction Manual for M4P-3 Example of the output signal according to the probes and selected gain: Compatible NOMINAL output signal for 100 µm stroke from 0 Probes Designation code Gain = 1 Gain = 2,5 Gain = 5 Gain = 10 03210904 GT 21 ±...
  • Page 8: Offset Settings

    Instruction Manual for M4P-3 OFFSET SETTINGS 1. Remove the electronic card. 2. Put the jumper in the desired offset for each channel: 0V (in standard) or 5V. Jumper for Jumper for 0V offset 5V offset 3. Mount electronic card and cover before use SETTINGS OFFSET AND GAIN (ADVANCED USER) !!!Caution!!! This operation may impact values delivered in the certificate...
  • Page 9: Declaration Of Conformity

    Quality Assurance WARRANTY TESA shall remediate any operating defects resulting from a manufacturing defect, within the limit of the following provisions. The regular warranty shall cover the first year from the date of sale. In justified warranty cases, TESA shall choose one of the following services: –...
