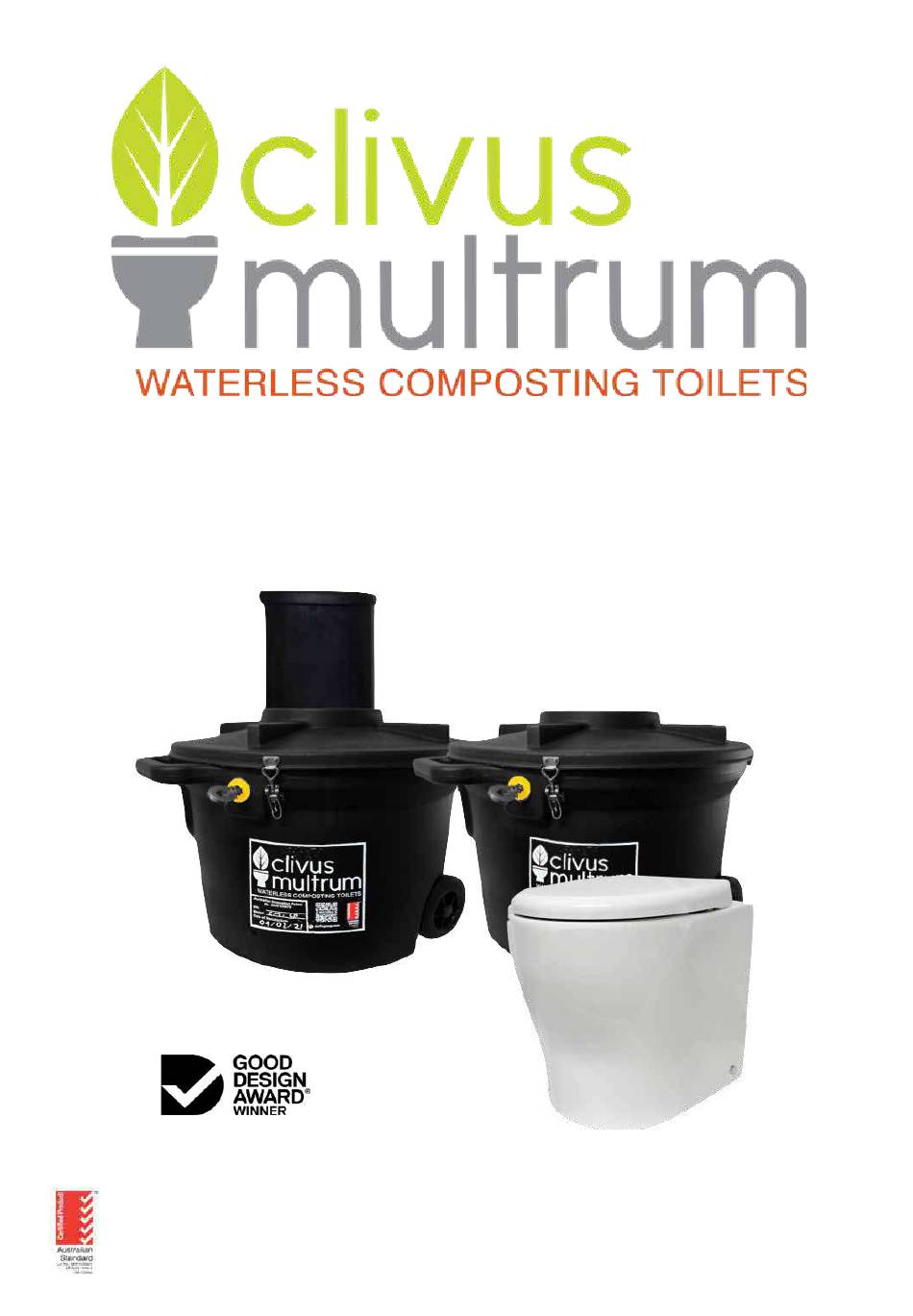

Thank you for purchasing the Clivus Multrum LP. Please read this manual carefully before installation.
"Clivus Multrum" is a brand of Ecoflo Wastewater Management Pty Ltd.
Visit our website at ecoflo.com.au.
IMCM-203.111021
CM LP
Installation and Operation manual
©Ecoflo Wastewater Management Pty Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM LP and is the answer not in the manual?

Questions and answers

Summary of Contents for clivus multrum CM LP

  • Page 1 CM LP Installation and Operation manual • Thank you for purchasing the Clivus Multrum LP. Please read this manual carefully before installation. • “Clivus Multrum” is a brand of Ecoflo Wastewater Management Pty Ltd. • Visit our website at ecoflo.com.au.
  • Page 2: Table Of Contents

    Table of Content WHAT’S IN THE BOX? CM LP SCHEMATICS INSTALLATION Step 1: Positioning the Pedestal Diagram Step 2: Positioning the Waste Chute Step 3: Installing the Waste Chute Step 4: Installing the Wheels to the Composting Chamber Step 5: Compost Mixer...
  • Page 3: What's In The Box

    WHAT’S IN THE BOX? Please check the packing slip to ensure everything has been delivered. If anything is missing, please notify your supplier within 72 hrs of receipt. Items you will need to complete your installation: • Wall brackets to fix the vent pipe to the building •...
  • Page 4: Cm Lp Schematics

    CM LOW PROFILE SCHEMATICS Vent installation option 1 Vent installation option 2 Optional If you are planning to excavate an area under the house for the compost chambers, please ensure the area is well-drained and any retaining walls are built to the satisfaction of the local authority.
  • Page 5: Installation

    INSTALLATION Step 1: Positioning the Pedestal Diagram Locate the approximate area where you want the pedestal to go before cutting the hole. The usual position for pedestals is centred between side walls. (Please note - due to the pedestals being man made the distance to the centre may vary from 245-255mm.
  • Page 6 Go to the underfloor area and look for the hole you have drilled, and the dangling string. Check to see if there is a floor joist, water pipe or electrical wiring under the area you are going to cut. NOTE: if there is a joist in the way, either reposition the waste hole OR install trimmer joists to each end of the cut joist, and fix all connections with galvanised framing anchors with 4 nails each leg.
  • Page 7: Step 3: Installing The Waste Chute

    Step 3: Installing the Waste Chute First ensure the pad or ground level on which the ‘In-service’ chamber will reside is at its final level beneath the toilet room. Insert the chute into the hole Mark position IMCM-203.111021 Page 7 ©Ecoflo Wastewater Management Pty Ltd...
  • Page 8: Step 4: Installing The Wheels To The Composting Chamber

    Extra Length Required for Under-floor Areas If the underfloor height exceeds 900mm (floor-to-floor), you will require additional lengths of chute, fixed together with small stainless steel self-tapping screws below the flange of the additional waste chute. As the chute joints are tappered, the top waste chute must be inserted through the toilet room floor first with additional waste chutes added from below.
  • Page 9: Step 5: Compost Mixer

    Step 5: Compost Mixer The compost mixer comes pre-assembled and installed in each chamber. Ring Gear Mixer Key Mixer Rake Crank handle for rotating the ring gear. (Simply place the hook in the eyelet and turn clockwise) Step 6: Installing the Compost Chamber •...
  • Page 10: Step 6: Installing The Compost Chamber

    Place brush seal on inside surface of Toggle latch chute extrusion as shown. Step 7: Connecting the Vent Pipe and Fan to the ‘In-service’ Chamber The fan runs 24 hours a day to continuously circulate air through the compost heap. Air is drawn down the toilet pedestal through the compost chamber and out the vent pipe.
  • Page 11: Connect The Flexible Air Hose & Excess Fluid Hose To The Chambers

    Connect the Flexible Air Hose & Excess Fluid Hose to the Chambers: IMCM-203.111021 Page 11 ©Ecoflo Wastewater Management Pty Ltd...
  • Page 12: Powering Your Fan

    POWERING YOUR FAN Mains Power A 240/12 volt regulated transformer is included to run the fan from mains power. Connect the fans to the transformer as follows: The positive wire on the transformer is marked with a white line. The fan has anti polarity protection and won’t run if connected incorrectly. We recommend a spare fan is kept on hand at all times, particularly after a year of use.
  • Page 13: Composting Accelerators

    COMPOSTING ACCELERATORS Whilst Clivue Multrum users report successful composting without the use of any additives, we strongly recommend the use of the following in order to optimise composting, particularly when the toilet is in permanent use by more than two people. Bulking Agent Should be added on a regular basis, preferably a handful after each solid use.
  • Page 14: Care & Maintenance

    CARE & MAINTENANCE Daily or Weekly • Clean restroom & toilet fixtures using only biodegradable cleaners. • Add 1 cup of bulking agent to toilet after every solid use. • Turn the Compost Mixer backwards and forwards once a week; or possibly more often. Please read “Compost Mixer”...
  • Page 15: Rotation Of Chambers

    Do not attempt to move the chambers on your own. The Clivus Multrum composting toilet chambers will need to be changed on a regular basis. A sufficient number of chambers must be purchased to allow the ‘Out-of-service’ chamber a min- imum 6 months;...
  • Page 16: Trouble Shooting

    Find more Trouble Shooting and FAQ information online at ecoflo.com.au/FAQ, or call us on 1300 138 182. Clivus Multrum toilets have proven themselves to be one of the easiest systems to manage. However, being a natural process, reliant on a number of factors beyond our control, it can occasionally need some help to maintain an appropriate balance.
  • Page 17 The odour from the ‘Out-of-service’ chamber is unpleasant: If the ‘Out-of-service’ chamber is not connected to the vent pipe it may smell immediately after it has been taken ‘Out-of-service’. Odours can be greatly reduced or eliminated by covering the top of the pile with straw or dry grass clippings. You may wish to do this before disconnecting the chamber.
  • Page 18: Product & Component Warranty

    PRODUCT & COMPONENT WARRANTY Ecoflo will furnish new parts to a customer whose toilet fails within the allotted warranty period for the particular component, provided that our inspection shows such failure is due to defective material or workmanship. Any part supplied is warranted for the balance of the original warranty period. The warranty period for a part begins from the date the original product was dispatched (plus 10 working days for transportation).
  • Page 19: Maintenance Schedule

    Please place this maintenance schedule close to your ‘In-service’ Chamber and complete the table as you rotate your chambers. Model: CM LP Date First Put into Service: _____/_____/________ The ‘Out-of-service’ chamber must compost for a minimum of 6 months from the date it was first rotated ‘Out-of-service’.
  • Page 20: Appendix 1

    APPENDIX 1 IMCM-203.111021 Page 20 ©Ecoflo Wastewater Management Pty Ltd...
  • Page 21 Ecoflo Wastewater Management Pty Ltd ecoflo.com.au clivusmultrum.com.au Phone: 1300 138 182 Phone: 07 3889 6144 Email: info@ecoflo.com.au Proudly Designed and Assembled in Australia by Ecoflo Wastewater Management IMCM-203.111021 Page 21 ©Ecoflo Wastewater Management Pty Ltd...
