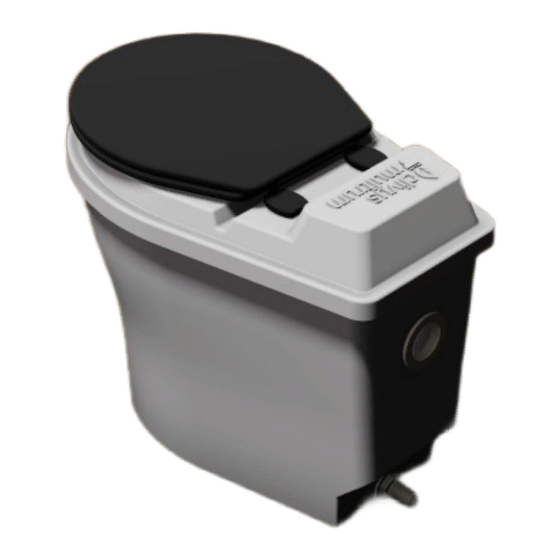

The CM2 is a composting toilet that
uses the natural process of aerobic
decomposition to transform human
faecal waste, urine and toilet paper
into humus that is safe to dispose of
in a manner compliant with local
health authority or as described in
this manual.
Go Green | Pay Less | No Mess
Clivus Multrum Australia
Phone:
1300 138 182
Phone:
07 3889 6144
Email:
info@clivusmultrum.com.au
OM-CM2.201104
CM2
Thank you for your purchase of a CM2 compost toilet. With proper installation and
maintenance we are certain it will offer you a convenience and reliability you would
expect from the manufacture of the best selling septic free toilet in the world.
Please, read these instructions carefully, as they will give you vital information
about installing and maintaining your CM2.
Capacity:
Specifications
Max Weight:
Material:
Dimension:
Operating Temperature: Subjected to temperature & number of
compost chambers
Ventilation Fan:
2W 12V DC
Electrical Requirements
Updated: 04/11/2018
Copyright © Ecoflo Wastewater Management
Owners Manual
2 person full time use
4 person part time use.
130kg
LDPE
620 L x 395 W x 500 H
Page 1 of 13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for clivus multrum CM2

Summary of Contents for clivus multrum CM2

  • Page 1 Thank you for your purchase of a CM2 compost toilet. With proper installation and maintenance we are certain it will offer you a convenience and reliability you would expect from the manufacture of the best selling septic free toilet in the world.

  • Page 2: Table Of Contents

    Signage Excess liquid Drain Installation 2.8.1 Option I—Absorption Trench 2.8.2 Option II—25 Litre Translucent Container USING THE CM2 Initial Setup MAINTENANCE General Care Removing The Chamber When Do I Empty The Secondary Chamber? How Do I Dispose The Composted End Product?

  • Page 3: Package Contents

    1.0 PACKAGE CONTENTS Please ensure that the package you received contains all items listed in the packing list document no: PSCM-002 that comes with your CM2 package. If anything is missing, please contact your supplier immediately. CHAMBER, PEDESTAL & SEAT...

  • Page 4: Installation

    Pedestal Installation The CM2 can be installed close to a wall with the vent pipe exiting directly through the rear wall (Figure 1) or alternatively the vent pipe can be installed on the inside exiting up through the ceiling (Figure 2).

  • Page 5: Ventilation Pipe

    The Ventilation system is used to help the composting process and to prevent odours from escaping into the toilet room Due to the variety of possible configurations, the vent kit supplied with your CM2 only includes the essential components. Additional DWV pipe and fittings may be required for a complete installation.
  • Page 6 2.0 INSTALLATION Figure 3: Ventilation pipe components break-out view OM-CM2.201104 Updated: 04/11/2018 Page 6 of 13 Copyright © Ecoflo Wastewater Management...

  • Page 7: Ventilation Fan

    Signage Your CM2 comes with an embossed logo and model number on the top of the unit. The serial number can be located on the back of the unit. Further details such as Clivus Multrum contact details, design capacity, operating condition, electrical requirement and basic notice and instructions are located in the front page of this manual.

  • Page 8: Excess Liquid Drain Installation

    This is the normal method for disposal of excess liquid, but refer to council for permit for any specific requirements. These instructions apply to installation of the drain kit items available from Clivus Multrum. Dig a trench in a position located in front of the liquid end product drain.

  • Page 9: Using The Cm2

    When Do I Empty The Secondary Chamber? As a general rule, you should leave the material in the compost chamber as long as possible. The CM2 has been designed for 2 people full time where the average monthly temperature is greater than 18° C in any given month.

  • Page 10: How Do I Dispose The Composted End Product

    Cleaning Use mild detergents on your CM2. Never use scouring powder or other strong detergents that could scratch the surface, or kill off your good bacteria. We recommend green friendly or septic safe products.

  • Page 11: How Composting Works

    Pathogens Pathogens are eliminated through the long retention times in the compost, the compost temperature and the activity of the micro-organisms. OM-CM2.201104 Updated: 04/11/2018 Page 11 of 13 Copyright © Ecoflo Wastewater Management...

  • Page 12: Warranty

    Powering the fan with unregulated power source exceeding 12V or using power supply not recommended by Clivus Multrum would void your warranty. • Any faulty fan during the warranty period should be returned to Clivus Multrum before replacement can be provided. All other components come with standard 12 months warranty.
  • Page 13 7 consecutive days. Always place a layer of wood shavings over the top of the pile in the out of service chamber to eliminate the possibility of insects laying eggs. OM-CM2.201104 Updated: 04/11/2018 Page 13 of 13...
