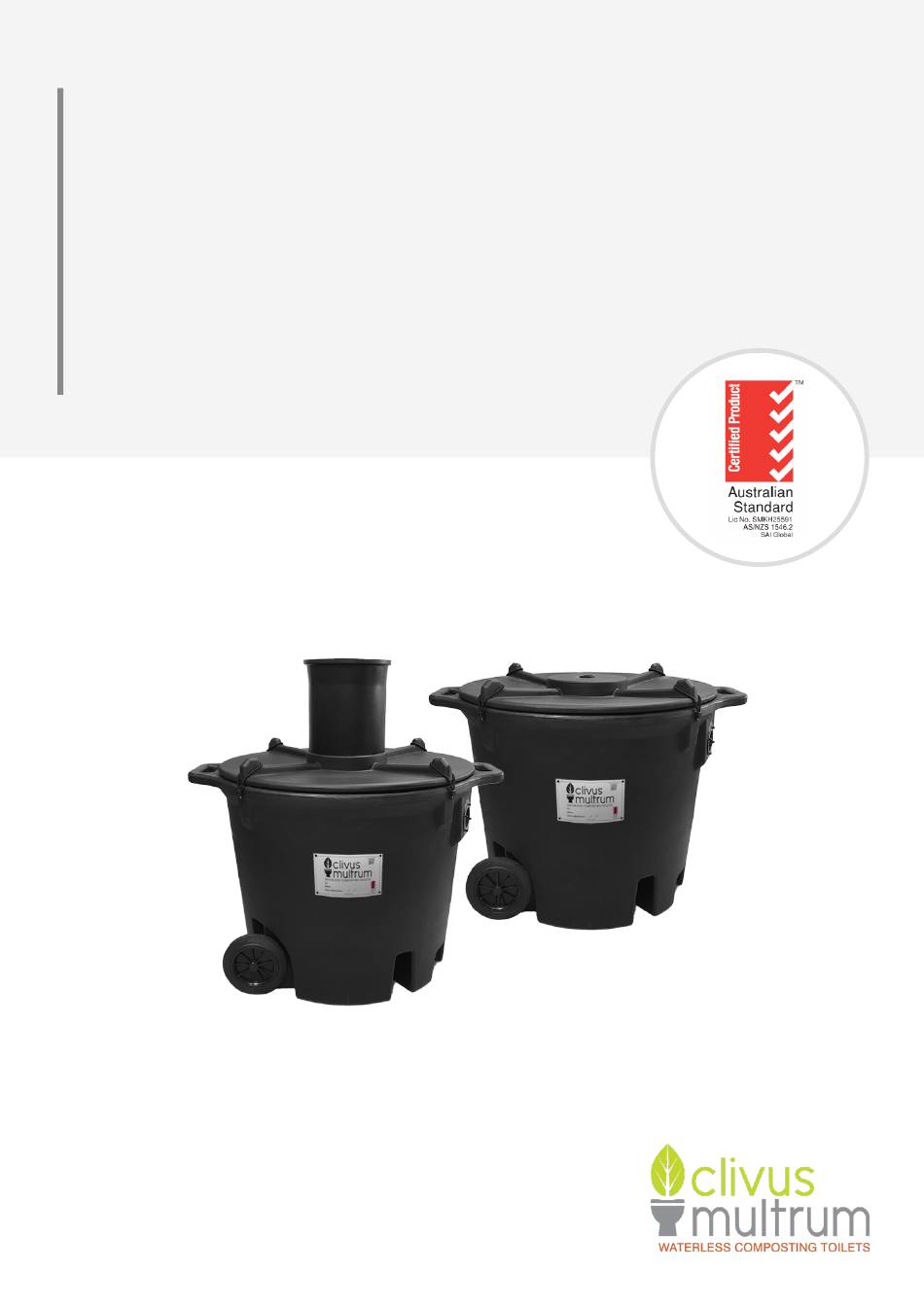

- Page 1 CLIVUS MULTRUM HIGH PROFILE INSTALLATION & OPERATION MANUAL IMCM-204-2024-01-30 ©Ecoflo Wastewater Management Pty Ltd...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ITEMS REQUIRED (NOT INCLUDED) TOOLS REQUIRED CM HIGH PROFILE SCHEMATICS INSTALLATION STEP 1: POSITION THE PEDESTAL STEP 2: POSITION THE WASTE CHUTE STEP 3: INSTALL THE WASTE CHUTE OPTIONAL EXTRA WASTE CHUTE LENGTHS OPTIONAL: Heater Pad STEP 4: INSTALL THE WHEELS... -
Page 3: Items Required (Not Included)
ITEMS REQUIRED (NOT INCLUDED) Please check the packing slip to ensure everything has been delivered. If anything is missing, please notify Ecoflo within 72 hrs of receipt. You will need the following items to complete your installation. Vent items • Wall brackets to fix the vent pipe to the building •... -
Page 4: Cm High Profile Schematics
CM HIGH PROFILE SCHEMATICS 100mm Vent cowl 600mm Optional Vent Installation 600mm Dektite (not included) 45° bend 100mm DWV pipe* Brackets* Pedestal Fan in housing L.I.T Reducer Vent pipe Chute 50mm Vent cowl In-service Out-of-service Min. 750mm chamber chamber Camlock fittings... -
Page 5: Installation
INSTALLATION STEP 1: POSITION THE PEDESTAL Locate the approximate area where you want the pedestal to go before cutting the hole. The usual position for pedestals is centred between side walls. NOTE: Due to the pedestals being man made, the distance to the centre may vary from 245 to 255mm. -
Page 6: Step 2: Position The Waste Chute
STEP 2: POSITION THE WASTE CHUTE A 240mm hole must be cut in the toilet room floor to accommodate the waste chute. Following the provided pedestal floor template, mark the location of the centre hole 245- 255mm (9.64” -10”) from the back wall. Drill a small hole. Side wall Back wall Go to the underfloor area and look for... -
Page 7: Step 3: Install The Waste Chute
STEP 3: INSTALL THE WASTE CHUTE First ensure the pad or ground level on which the ‘In-service’ chamber will reside is at its final level beneath the toilet room. Place the chamber (without the lid) next to the chute. Mark the height of the chamber onto the chute. -
Page 8: Optional Extra Waste Chute Lengths
OPTIONAL EXTRA WASTE CHUTE LENGTHS If the underfloor height exceeds 1200mm (floor-to-floor), you will require additional lengths of chute, fixed together with small stainless steel self-tapping screws below the flange of the additional waste chute. As the chute joints are tappered, the top waste chute must be inserted through the toilet room floor first with additional waste chutes added from below. -
Page 9: Step 5: Install The In-Service Chamber
STEP 5: INSTALL THE IN-SERVICE CHAMBER Add 50mm of bulking agent to the Slide the lid up the waste chute. chamber. Tip: Install bungee loops under the floor and knobs on the lid to help hold it up. Place the chamber underneath. Lower Hook the chamber bungee loops the lid onto the chamber, lining it up around the lid like below. -
Page 10: Step 6: Connect The Vent Pipe And Fan
100mm DWV pipe* STEP 6: CONNECT THE VENT PIPE AND FAN Vent cowl Brackets* 600mm The fan is IP68 rated so will not be effected by moisture. Pedestal 600mm Fan in housing Dektite L.I.T Reducer (not included) 45° bend Vent pipe Chute 50mm Do not glue the fan... -
Page 11: Step 7: Connect The Flexible Vent Pipe And Liquid Drain Hose
STEP 7: CONNECT THE FLEXIBLE VENT PIPE AND LIQUID DRAIN HOSE Air Vent Outlet Dip the ends of the vent pipe into hot water for easier insertion of the pipe connectors. MI Connector Slotted Pipe Flexible Vent Pipe Connector Dip the end of the hose into hot water for easier insertion of the barbed fitting. -
Page 12: Powering Your Fan
POWERING YOUR FAN ains OwEr A 240/12 volt regulated transformer is included to run the fan from mains power. The positive wire on the transformer is marked with a white line. The fan has anti-polarity protection and would not run if connected incorrectly. It is recommended to keep a spare fan, particularly after a year of use. -
Page 13: Leachate Drain
LEACHATE DRAIN A leachate drain kit (not including gravel) is available to purchase separately from Ecoflo Wastewater Management. Alternatively, if your council allows, you may wish to construct your own leachate drain. The liquid drain hose should run into either a 50mm PVC pipe (drilled to allow liquid to escape) OR a length of socked slotted Ag pipe, buried in an absorption trench as shown in the diagram below. -
Page 14: Compost Accelerators
COMPOST ACCELERATORS Whilst Clivus Multrum users report successful composting without the use of any additives, we strongly recommend the use of the following items in order to optimize composting, particularly when the toilet is in permanent use by more than two people. -
Page 15: Starting With An Empty Chamber
STARTING WITH AN EMPTY CHAMBER Before connecting your chamber to the waste chute, add an even 50mm layer of bulking agent and dampen slightly with water. Complete the installation of the chamber (refer to Step 5, Install the In-Service Chamber). You can start using your chamber now. Slightly dampen the bulking agent with water. -
Page 16: Operation
OPERATION AFTER EVERY LIQUID DEPOSIT Close the lid AFTER EVERY SOLID DEPOSIT Throw in a generous Spray 10 squirts of enzymes Close the lid cup of bulking agent around the bowl DO NOT DISPOSE INTO THE COMPOST CHAMBER Food waste Chemical products or Sanitary products and cleaning agents (including... -
Page 17: Maintenance
MAINTENANCE aily Or wEEkly • Clean restroom and toilet fixtures using only biodegradable cleaners (enzymes) • Add 1 cup of bulking agent to toilet after every solid use • We recommend mixing the compost (via the mixer and crank handle) about once a week Onthly •... -
Page 18: Rotating The Chambers
ROTATING THE CHAMBERS The chambers will need to be changed on a regular basis. A sufficient number of chambers must be purchased to allow the ‘out-of-service’ chamber a minimum of 6 months to compost (depending on the climate) from the time they are disconnected from the waste chute. - Page 19 Ow can tEll if My cOMpOst is rEaDy The size of the pile should have reduced in size by approximately 20%. Finished compost should appear crumbly and moist (similar to fresh potting mix), not sodden or dry. It should not have any offensive odour, just an earthy one. Also, the pile should not be producing high heat any longer.
-
Page 20: Troubleshooting
TROUBLESHOOTING Clivus Multrum toilets have proven themselves to be one of the easiest systems to manage. However, being a natural process, reliant on a number of factors beyond our control, it can occasionally need some help to maintain an appropriate balance. - Page 21 ‘ ’ hE ODOur frOM thE sErvicE chaMBEr is unplEasant If the ‘Out-of-service’ chamber is not connected to the vent pipe it may smell immediately after it has been taken ‘Out-of-service’. Odours can be greatly reduced or eliminated by covering the top of the pile with straw or dry grass clippings. You may wish to do this before disconnecting the chamber.
-
Page 22: Product & Component Warranty
PRODUCT & COMPONENT WARRANTY Ecoflo will furnish new parts to a customer whose toilet fails within the allotted warranty period for the particular component, provided that our inspection shows such failure is due to defective material or workmanship. Any part supplied is warranted for the balance of the original warranty period. -
Page 23: Maintenance Schedule
MAINTENANCE SCHEDULE Please place this maintenance schedule close to your ‘In-service’ Chamber and complete the table as you rotate your chambers. Model: ________________ Date first put into service: _____/_____/________ The ‘Out-of-service’ chamber must compost for a minimum of 6 months from the date it was first rotated ‘Out-of-service’. - Page 24 Ecoflo Wastewater Management Pty Ltd ecoflo.com.au clivusmultrum.com.au Phone: 1300 138 182 (07) 3889 6144 Email: info@ecoflo.com.au Proudly Designed and Assembled in Australia by Ecoflo Wastewater Management IMCM-204-2024-01-30 ©Ecoflo Wastewater Management Pty Ltd...
