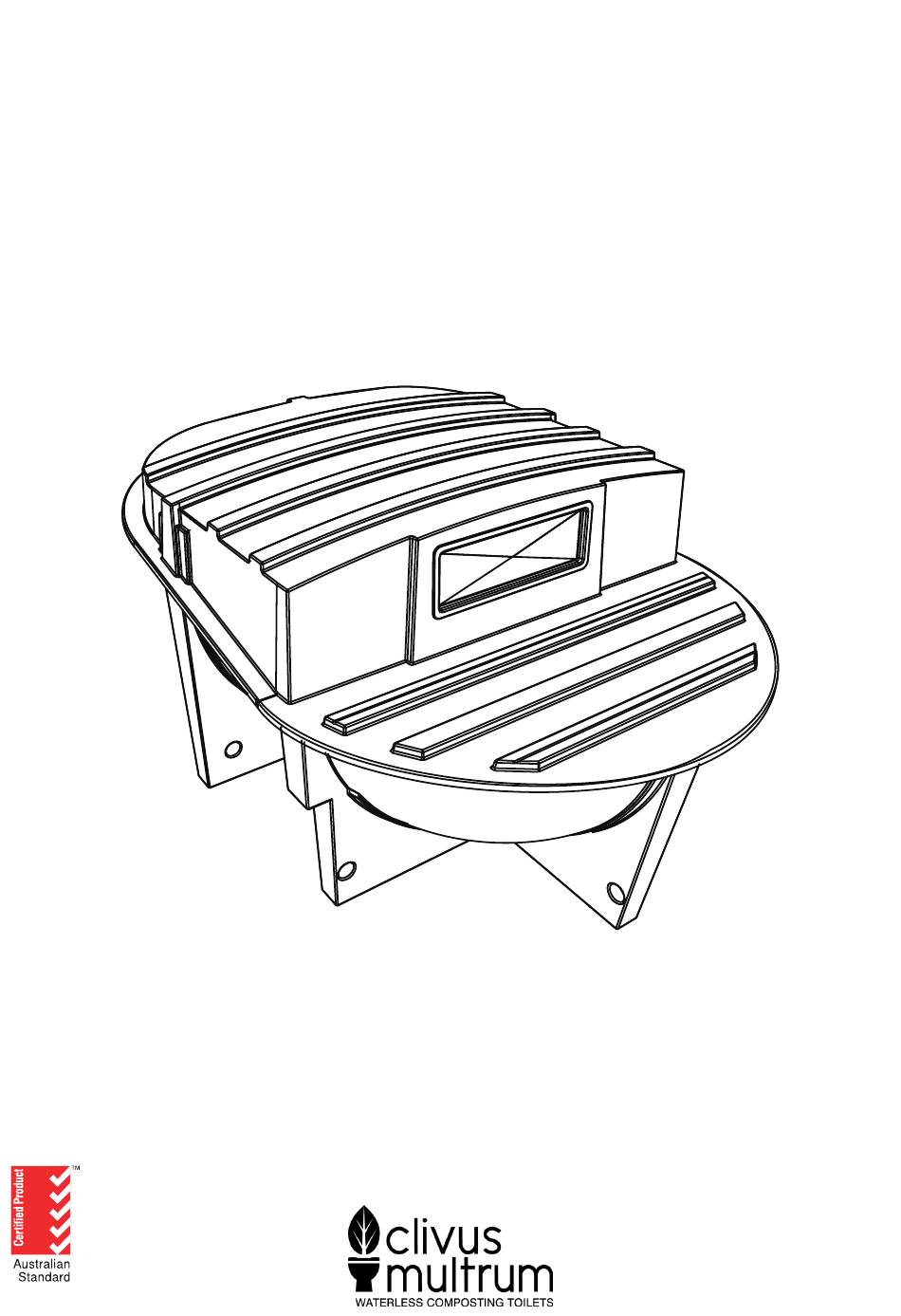

- Page 1 CM14 Next Gen. INSTALLATION MANUAL AUS | NZ Lic No. SMKH25591 IMCM-14-2023-12-04 AS/NZS 1546.2 SAI Global...
-
Page 2: Table Of Contents
TABLE OF CONTENTS CM14 TANK ITEMS PEDESTAL ITEMS DRAIN ITEMS VENT ITEMS CONSUMABLES OPTIONAL PACK FOR BURIED INSTALL ONLY TOOLS REQUIRED MATERIALS REQUIRED INSTALLATION SUMMARY CONDITIONS POSITIONING THE TANK TANK SUPPORT FOR BURIED INSTALL SYSTEM ONLY LEACHATE DRAIN INSTALLATION TOILET CHUTE & PEDESTAL POWERING YOUR FAN PEDESTAL INSTALLATION INSTALLATION OF VENTILATION SYSTEM... -
Page 3: Cm14 Tank Items
CM14 TANK ITEMS 1x MAINTENANCE RAKE 1x SILICONE SEALANT How to use: 1x CM14 TANK 1x ‘HOW TO USE’ SIGN PEDESTAL ITEMS 1x PEDESTAL & 1x WASTE TOILET SEAT CHUTE 12x DEKTITE SCREWS 1x DEKTITE #6 IMCM-14-2023-12-04 ecoflo.com.au 1300-138-182... -
Page 4: Drain Items
DRAIN ITEMS 2X MI CONNECTOR Ø50MM 1x THREADED ACCESS CAP Ø50MM 2x 45° BEND Ø50MM 1x SOCKED SLOTTTED PIPE Ø100MM 2M L, WITH LIT REDUCER Ø100-50MM 1x PVC DRAIN PIPE 1x TEE Ø50MM Ø50MM VENT ITEMS Domestic Installation: Ø100MM PIPING Commercial Installation: Ø150MM PIPING 2x VENT SUPPORT 2x 90°... -
Page 5: Consumables
CONSUMABLES BULKING SPRAY ENZYME MICROBES AGENT BOTTLE CONCENTRATE OPTIONAL PACK FOR BURIED INSTALL ONLY 2X PIPE Ø50MM 1.5M LONG 1X PIPE Ø50MM 1.2M LONG 1x DEKTITE IMCM-14-2023-12-04 ecoflo.com.au 1300-138-182... -
Page 6: Tools Required
TOOLS REQUIRED Spirit Level Caulking gun Screwdriver Spade (Philips/plain) Scissors/Knife Drill Jigsaw Tape Measure Marker Ladder MATERIALS REQUIRED • Water to wet starter material. • Additional 50mm PVC pipe (coupling and bends if absorption trench is to be located some distance away from tank). Additional pipe bends if needed for vent pipe. -
Page 7: Conditions
CONDITIONS Any decomposition process works better where temperatures are warmer. Over the winter months the composting process slows or can even temporarily stop where temperatures in the pile drop below 4°C. >13°C Ideal temperature for composting <13°C Composting process slows As the composting tank is black, it will absorb heat from the sun. -
Page 8: Positioning The Tank
POSITIONING THE TANK If there is very little room between the top of the tank and the floor of the building, the order of the installation can be changed as follows: Firstly, cut the hole for the pedestal in the floor of the building (refer to page 9, Toilet Chute & Pedestal). Position the tank under the hole and then mark the position of the hole onto the tank. -
Page 9: For Buried Install System Only
FOR BURIED INSTALL SYSTEM ONLY For a buried system it is required to hold the tank down with galvanised rods. These are slid into the slots provided on both sides and the front of the CM14 tank. LEFT SIDE VIEW Installation of Ø50mm Pipe 1.2M Long... -
Page 10: Leachate Drain Installation
LEACHATE DRAIN INSTALLATION Threaded Access Cap 45° Bend Leachate Drain 90° Junction Drain Options Socked Slotted Pipe 450 min 150 min Geofabric layer 20mm Gravel 300 min ø100mm Agi Drain Trench Arch 500 min 150 min Geofabric layer Gravel 230 min Leachate drain IMCM-14-2023-12-04 ecoflo.com.au... -
Page 11: Toilet Chute & Pedestal
TOILET CHUTE & PEDESTAL Please refer to the separate FRONT pedestal installation manual for instructions on how to locate the pedestal in your bathroom. A3 Template to cut chute hole at the correct size. BACK < 5mm of sideways play around the hole. - Page 12 Enlarge the hole in the rubber chute collar so it will stretch snugly around the toilet chute without gaps. Mark and cut chute. Drip Edge Max 100mm SECTION VIEW Viewpoint/ Maintenance Access IMCM-14-2023-12-04 ecoflo.com.au 1300-138-182...
- Page 13 TOP FLOOR Lift the toilet chute slightly and put sealant between the toilet chute and the floor then press chute down again to seat firmly onto the floor. Lift up Push down Bend and move the metal edging strip of the chute collar to the tank.
-
Page 14: Powering Your Fan
POWERING YOUR FAN Mains Power A 120 /12 volt regulated transformer is included to run the fan from mains power. The positive wire the transformer is marked with a white line. The fan has anti-polarity protection and would not run if connected incorrectly. If you have a solar panel, refer to the instructions provided with it. -
Page 15: Pedestal Installation
PEDESTAL INSTALLATION See separate instruction manual for pedestal installation. INSTALLATION OF VENTILATION SYSTEM Note: As air flow is essential to the operation of the unit, the fewer bends that are used when installing the vent system the better. Plan the vent pipe layout. - Page 16 Secure Wallace seal into position. Tip: Putting the wallace seal in hot water for 5 minutes can help when installing the PVC pipe. Secure pipe fittings according to building/roofing instructions. Complexity may vary. Position the fan housing so that it can be easily accessed and secure with silicon.
- Page 17 Install the vent cowl or optional turbo vent (1). Secure with 3 self- tapping screws. Min. 900mm Attach the upper section of the vent pipe. The pipe should be supported against the wall of the building with the brackets provided (2, 3).
-
Page 18: Starter-Bed Of Organic Matter
STARTER-BED OF ORGANIC MATTER SUITABLE BULKING MATERIAL Wood shavings Peanut or Hemp Dry Leaves coconut husk NOT SUITABLE BULKING MATERIAL Large wood Lawn clippings Fine sawdust Sugar cane chips mulch Starter bed of bulking material to underside of baffle. Dampen down well with water. - Page 19 IMCM-14-2023-12-04 ecoflo.com.au 1300-138-182...
