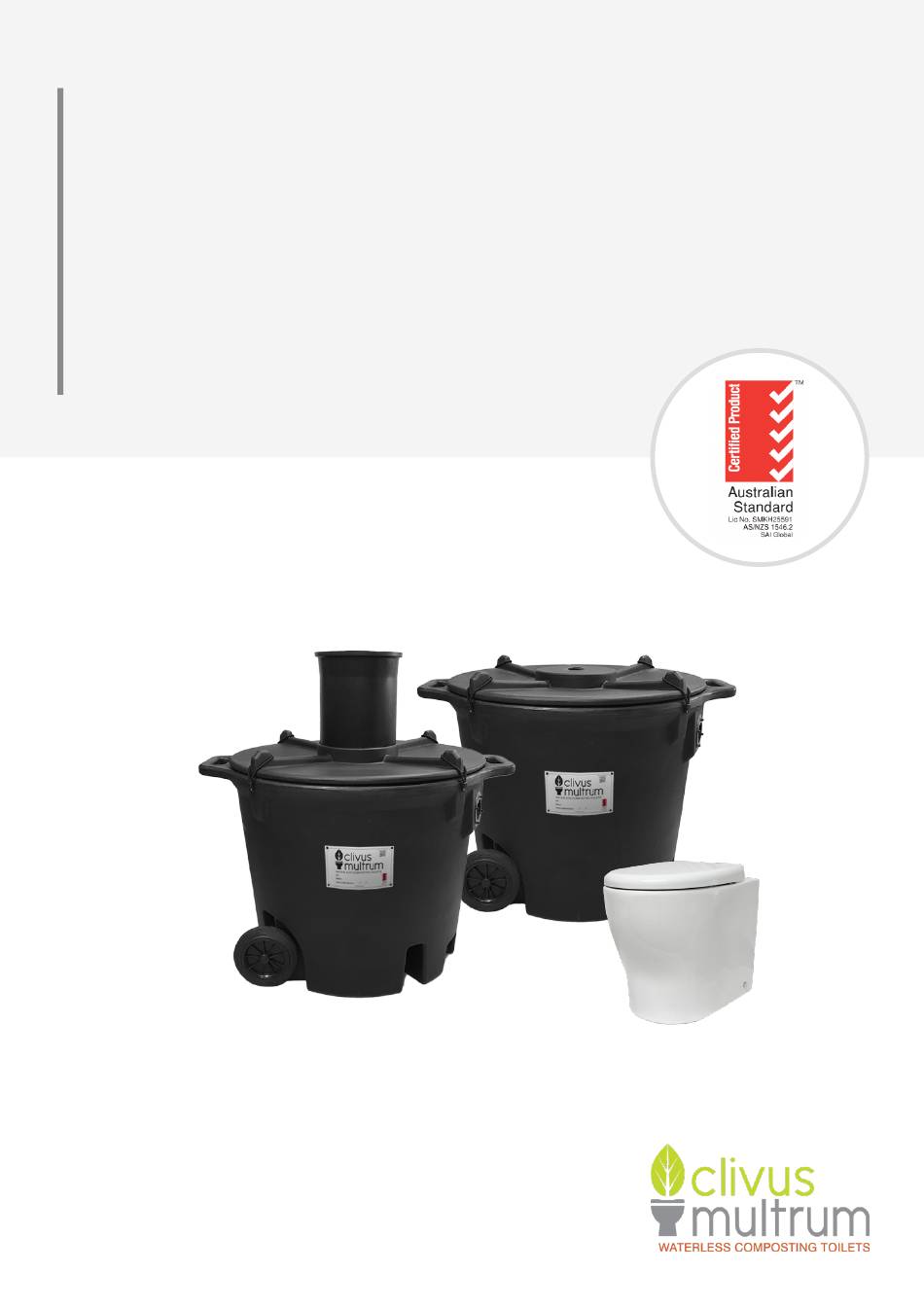

- Page 1 CLIVUS MULTRUM HIGH PROFILE INSTALLATION & OPERATION MANUAL IMCM-204-2023.04.24 ©Ecoflo Wastewater Management Pty Ltd...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ITEMS REQUIRED (NOT INCLUDED) TOOLS REQUIRED CM HIGH PROFILE SCHEMATICS INSTALLATION STEP 1: POSITION THE PEDESTAL STEP 2: POSITION THE WASTE CHUTE STEP 3: INSTALL THE WASTE CHUTE STEP 4: INSTALL THE WHEELS STEP 5: INSTALL THE COMPOST CHAMBER... -
Page 3: Items Required (Not Included)
ITEMS REQUIRED (NOT INCLUDED) Please check the packing slip to ensure everything has been delivered. If anything is missing, please notify Ecoflo within 72 hrs of receipt. You will need the following items to complete your installation. Vent items • Wall brackets to fix the vent pipe to the building •... -
Page 4: Cm High Profile Schematics
CM HIGH PROFILE SCHEMATICS 100mm Vent cowl Optional Vent 600mm Installation 600mm Dektite (not included) 45° bend 100mm DWV pipe* Brackets* Pedestal Fan in housing L.I.T Reducer Vent pipe Chute 50mm Vent cowl In-service Out-of-service Min. 750mm chamber chamber Camlock fittings... -
Page 5: Installation
INSTALLATION STEP 1: POSITION THE PEDESTAL Locate the approximate area where you want the pedestal to go before cutting the hole. The usual position for pedestals is centred between side walls. NOTE: Due to the pedestals being man made, the distance to the centre may vary from 245 to 255mm. Please check before cutting the hole. - Page 6 Go to the underfloor area and look for the hole you have drilled. Check to see if there is a floor joist, water pipe or electrical wiring under the area you are going to cut. If there is a joist in the way, either reposition the waste hole OR install trimmer joists to each end of the cut joist, and fix all connections with galvanized framing anchors with 4 nails each leg (refer to diagram below).
-
Page 7: Step 3: Install The Waste Chute
STEP 3: INSTALL THE WASTE CHUTE First ensure the pad or ground level on which the ‘In-service’ chamber will reside is at its final level beneath the toilet room. Insert the chute into the hole Note: Remove lid before measuring. Mark position IMCM-204.2023.04.24 ©Ecoflo Wastewater Management Pty Ltd... - Page 8 xtra Ength EquirEd for ndEr Loor rEas If the underfloor height exceeds 1200mm (floor-to-floor), you will require additional lengths of chute, fixed together with small stainless steel self-tapping screws below the flange of the additional waste chute. As the chute joints are tappered, the top waste chute must be inserted through the toilet room floor first with additional waste chutes added from below.
-
Page 9: Step 4: Install The Wheels
STEP 4: INSTALL THE WHEELS STEP 5: INSTALL THE COMPOST CHAMBER 1. Add 50mm Bulking Agent to the 2. Slide the lid up the waste chute, Chamber. position the chamber under the lid, then slide the lid down onto the chamber. hook the bungee loops around the lid. -
Page 10: Step 6: Connect The Vent Pipe And Fan
100mm DWV pipe* STEP 6: CONNECT THE VENT PIPE AND FAN Vent cowl Brackets* 600mm The fan is IP68 rated so will not be effected by moisture. Pedestal 600mm Fan in housing Dektite L.I.T Reducer (not included) 45° bend Vent pipe Chute 50mm Vent cowl... -
Page 11: Step 7: Connect The Flexible Vent Pipe And Liquid Drain Hose
STEP 7: CONNECT THE FLEXIBLE VENT PIPE AND LIQUID DRAIN HOSE Air Vent Outlet MI Connector Slotted Pipe Flexible Vent Pipe Connector Nipple Female Male Barbed Liquid Drain Hose Camlock Camlock IMCM-204.2023.04.24 ©Ecoflo Wastewater Management Pty Ltd Page 9... -
Page 12: Powering Your Fan
POWERING YOUR FAN ains owEr A 240/12 volt regulated transformer is included to run the fan from mains power. The positive wire on the transformer is marked with a white line. The fan has anti-polarity protection and would not run if connected incorrectly. -
Page 13: Leachate Drain
LEACHATE DRAIN A leachate drain kit (not including gravel) is available to purchase separately from Ecoflo Wastewater Management. Alternatively, if your council allows, you may wish to construct your own leachate drain. The liquid drain hose should run into either a 50mm PVC pipe (drilled to allow liquid to escape) OR a length of socked slotted Ag pipe, buried in an absorption trench as shown in the diagram below. -
Page 14: Composting Accelerators
COMPOSTING ACCELERATORS Whilst Clivus Multrum users report successful composting without the use of any additives, we strongly recommend the use of the following items in order to optimize composting, particularly when the toilet is in permanent use by more than two people. -
Page 15: Maintenance
MAINTENANCE aiLy or wEEkLy • Clean restroom and toilet fixtures using only biodegradable cleaners (enzymes) • Add 1 cup of bulking agent to toilet after every solid use onthLy • Inspect the ‘In-service’ chamber, depends on usage, prepare another ‘In-service’ chamber for use once the chamber becomes full (refer to Rotation of Chambers, page 14). -
Page 16: Rotation Of Chambers
ROTATION OF CHAMBERS our first rotation of thE chaMBErs The Clivus Multrum composting toilet chambers will need to be changed on a regular basis. A sufficient number of chambers must be purchased to allow the ‘Out-of-service’ chamber a minimum 6 months to compost;... -
Page 17: Troubleshooting
TROUBLESHOOTING Clivus Multrum toilets have proven themselves to be one of the easiest systems to manage. However, being a natural process, reliant on a number of factors beyond our control, it can occasionally need some help to maintain an appropriate balance. - Page 18 ‘ ’ hE odour froM thE sErvicE chaMBEr is unPLEasant If the ‘Out-of-service’ chamber is not connected to the vent pipe it may smell immediately after it has been taken ‘Out-of-service’. Odours can be greatly reduced or eliminated by covering the top of the pile with straw or dry grass clippings.
-
Page 19: Product & Component Warranty
PRODUCT & COMPONENT WARRANTY Ecoflo will furnish new parts to a customer whose toilet fails within the allotted warranty period for the particular component, provided that our inspection shows such failure is due to defective material or workmanship. Any part supplied is warranted for the balance of the original warranty period. The warranty period for a part begins from the date the original product was dispatched (plus 10 working days for transportation). -
Page 20: Maintenance Schedule
MAINTENANCE SCHEDULE Please place this maintenance schedule close to your ‘In-service’ Chamber and complete the table as you rotate your chambers. Model: ________________ Date first put into service: _____/_____/________ The ‘Out-of-service’ chamber must compost for a minimum of 6 months from the date it was first rotated ‘Out-of-service’. - Page 21 Ecoflo Wastewater Management Pty Ltd ecoflo.com.au clivusmultrum.com.au Phone: 1300 138 182 (07) 3889 6144 Email: info@ecoflo.com.au Proudly Designed and Assembled in Australia by Ecoflo Wastewater Management IMCM-204.2023.04.24 ©Ecoflo Wastewater Management Pty Ltd Page 19...
