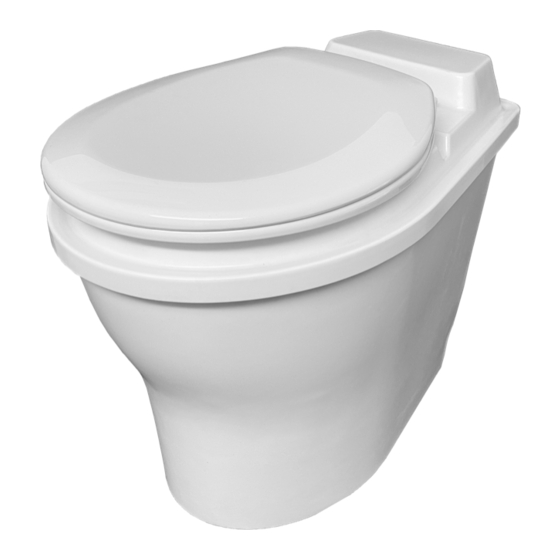

- Page 1 AUS|NZ Specifications Capacity: 2 person full time use Max Weight: 130kg Material: LDPE Dimension: 620 L x 395W x 500W Electrical Requirements Ventilation Fan: 5W 12V DC OWNERS MANUAL...
-
Page 2: What In The Box
WHAT IN THE BOX? CHAMBERS NL2 PEDESTAL WITH SEAT & SPYGOT. 12V TRANSFORMER VENT COWL FAN HOUSING 90° 50 DWV BEND 50mm DWV PIPE - LONG REDUCER... - Page 3 50mm WALLACE SEAL HOSE TAIL 25mm SULLAGE HOSE MOUNTING BLOCKS TOILET ROLL BAG OF MICROBES HEMP BULKING MATERIAL ‘HOW TO How to use: USE’ SIGN ENZYMES & SPRAY BOTTLE...
- Page 4 WHAT YOU MAY NEED Depending on the circumstances of your installation you may require the following items. FOR THE EXCESS FLUID DRAIN TRENCH ARCH AGI DRAIN WITH GRAVEL DRAIN SOCK Note: A Drain Kit can be purchased from Ecoflo. FOR THE VENT PIPE PIPE BRACKETS PVC GLUE DEKTITE...
- Page 5 VENTILATION A 12V DC transformer is supplied with Vent Cowl your system which can plug directly into a 240V power point (GPO). The transformer needs to be located under cover. The power leads from the 12V transformer must be connected to the fan in the housing.
-
Page 6: Installation
(Min. sizes) PEDESTAL INSTALLATION The NL2 can be installed close to a wall with the vent pipe exiting directly through the rear wall (Figure 1) or alternatively the vent pipe can be installed on the inside exiting up through the ceiling (Figure 2 - this must be indicated at the time of purchase). - Page 7 EXCESS LIQUID DRAIN INSTALLATION The drainage system to be chosen depends entirely on the soil condition, ground water level, and local regulation. Please ensure you choose your location with this in mind. Absorption Trench This is the normal method for disposal of excess liquid, but refer to council for permit for any specific requirements.
- Page 8 INSTALLATION Mark holes on rear BACK VIEW wall with pencil. Ensure the hole is sloping downwards to the outside. Drill 65mm Ø hole Drill 38mm Ø hole SIDE VIEW...
- Page 9 Insert rubber wallace seal (use soapy water if difficult to insert) 50mm DWV Pipe Hose clamp & hose barb 25 Sullage Hose Feed vent pipe & sullage hose through the wall. Ensure the hose end point is lower than the pedestal outlet.
- Page 10 Secure pedestal to wall with mounting blocks Cut PVC if required EXTERIOR PIPE CONNECTOR OUTDOOR VIEW...
- Page 11 Min 600mm OUTDOOR VIEW...
-
Page 12: Installation Complete
INSTALLATION COMPLETE... -
Page 13: Maintenance
As a general rule, you should leave the material in the compost chamber as long as possible. The NL2 has been designed for 2 people full time where the average monthly temperature is greater than 18° C in any given month. - Page 14 Bulking material: Hemp, wood shavings or other carbon rich fibrous material. (Sawdust is not recommended) CLEANING Use mild detergents on your NL2. Never use scouring powder or other strong detergents that could scratch the surface, or kill off your good bacteria. We recommend green friendly or septic safe products.
-
Page 15: How Composting Works
HOW COMPOSTING WORKS GENERAL Composting involves the biological decomposition of organic matter using natural occurring organisms such as bacteria, fungi and other micro-organisms into compost which is a humus- like product. The composting process can be aerobic or anaerobic however aerobic decomposition is desirable because it is efficient and does not produce unpleasant odours. -
Page 16: Warranty
PATHEGENS Pathogens are eliminated through the long retention time within the compost, the temperature of the compost and the activity of the micro-organisms. WARRANTY Pedestal • 10 years warranty. • Any damage caused by exceeding the maximum recommended weight listed in specifications will/may void your warranty. - Page 17 WHY IS THE COMPOSTING PROCESS SLOW TO COMPLETE? Composting process is dependent on temperature and humidity. 1. Is your compost pile too wet? The addition of bulking agent is an imperative part of the operation of a composting toilet. Bulking agent will assist with the absorption of liquid in your composting toilet and will aid in improving the carbon/nitrogen ratio (important for composting) and will allow air to flow more freely through the system as it loosens the compost pile.
