Summary of Contents for CSO OFTALMOMETRO

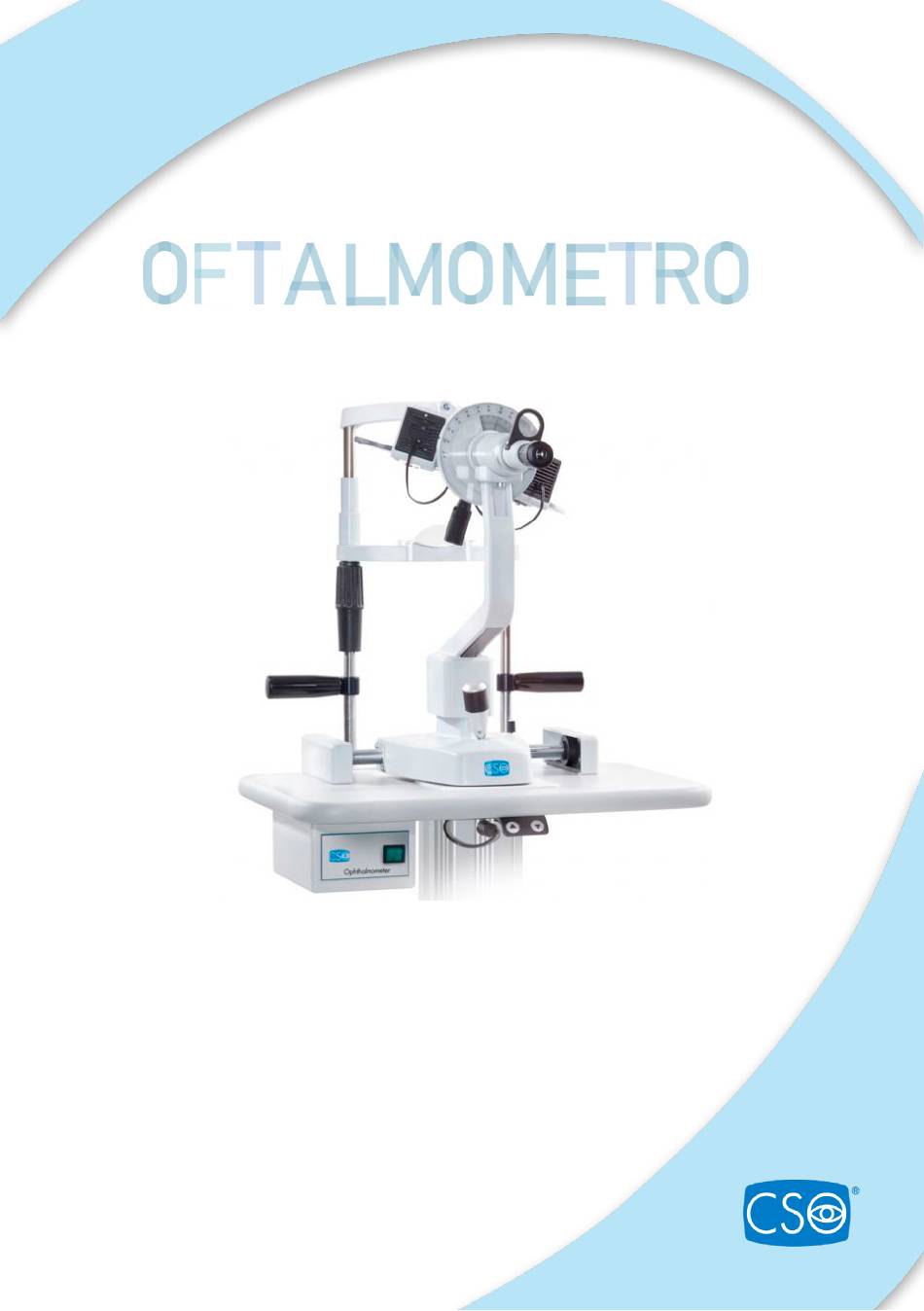

  • Page 1 USER’S MANUAL...
  • Page 3: Table Of Contents

    INSTRUCTIONS FOR USE CONTENTS 1. GENERAL WARNINGS........................4 1.1. SYMBOLS.........................4 1.2. INTENDED USE AND OPERATIN G PROCEDURES..........5 1.2.1. CLASSIFICATION....................5 1.2.2. ENVIRONMENTAL CONDITIONS..............6 1.2.3. REFERENCE STANDARDS................6 1.2.4. WARRANTY......................7 1.3. SAFETY WARNINGS....................8 1.4. DISPOSAL AT THE END OF LIFE................8 2. SUPPLY PACKAGE........................9 2.1. IDENTIFICATION NAMEPLATE................11 2.2.
  • Page 4: General Warnings

    Please carefully read this manual before using the device. All CSO products have been manufactured with the greatest attention to functionality and safety. In particu- lar The JVL/1 Keratometer is a high-performance device. To use the device effectively and safely, please read this user manual carefully before installing and using the device, and follow the instructions and warnings reported in the manual and on the device.
  • Page 5: Intended Use And Operating Procedures

    INSTRUCTIONS FOR USE 1.2. INTENDED USE AND OPERATING PROCEDURES The Keratometer according to the Javal Model JVL/1 • Corneal curvature radius • Cornea refractive power is an instrument used for the measurement and calcu- • Corneal astigmatism lation with maximum accuracy of: •...
  • Page 6: Environmental Conditions

    INSTRUCTIONS FOR USE 1.2.2. ENVIRONMENTAL CONDITIONS As long as the device is kept in its original packaging, it can be exposed to the following environmental con- ditions without being damaged, and for a maximum period of 15 weeks during shipping and storage. Operating conditions of use: •...
  • Page 7: Warranty

    CSO S.r.l. warrants this product for a period of 24 months as stated by the date of manufacturing. The manu- facturer agrees to provide, upon request, diagrams, lists of components, specific technical instructions useful to authorised and pre-trained personnel for maintenance and calibration.
  • Page 8: Safety Warnings

    INSTRUCTIONS FOR USE 1.3. SAFETY WARNINGS WARNING! • Make sure the electric system power supply voltage matches the voltage indicated on the computer data label. If the voltage does not match, contact the customer service or the manufacturer itself. (see chapter on INSTALLATION).
  • Page 9: Supply Package

    INSTRUCTIONS FOR USE • in the event that a new piece of equipment is purchased from the same manufacturer to replace an old one placed on the market before 13 August 2005, equivalent and with the same functions of the new equipment, the distributor or manufacturer is legally required to collect the old piece of equipment;...
  • Page 10 INSTRUCTIONS FOR USE • Control sphere with 50D contact lenses support • Chinrest paper • Protective fuses Optionals • Fixation point at 30° to aim the patient’s gaze du- ring specific exams code. 100101300. Legend Orthogonally moving base Head Chinrest module Chinrest lifting handle Occlusor for the eye not being examined Joystick for base orthogonal movements and...
  • Page 11: Identification Nameplate

    Other maintenance operations (repairs, components replacement, assessment of internal components, etc.) fall within the exclusive competence of CSO Technical Service WARNING! Do not use any thinners or solvents. WARNING! If the product needs maintenance, contact the Technical Service authorised by CSO Srl. 11/24...
  • Page 12: Usage

    INSTRUCTIONS FOR USE 4. USAGE JVL/1 Keratometer: Turn on the device using the switch on the transformer box. Insert the tester cornea in its compartment. Set the bow to 90° (horizontal) Centre the telescope on the tester cornea looking through the grading mark, viewfinder, and tester cornea.
  • Page 13: Technical Features

    INSTRUCTIONS FOR USE 5. TECHNICAL FEATURES - JVL/1 KERATOMETER Measurement field Dioptres 30.00 to 60.00 D- radius 5.6 to 11.3 mm Resolution Dioptres 0.25 D - Radius 0.05 mm Measurement useful diameter 3.4 mm equal to 9 mm2 Scaling TABO and INTERNAZIONALE Javal mires Instrument base...
  • Page 14: Guidance And Manufacturer 'S Declaration

    INSTRUCTIONS FOR USE 6. GUIDANCE AND MANUFACTURER ’S DECLARATION 6.1. ELECTROMAGNETIC EMISSION TABLE 1 - Guidance and manufacturer’s declaration – electromagnetic emission The equipment JLV/1 KERATOMETERS is intended for use in the electromagnetic environment specified below. The customer or the end user of the JLV/1 KERATOMETERS should assure that it is used in such an environment.
  • Page 15: Electromagnetic Immunity

    INSTRUCTIONS FOR USE 6.2. ELECTROMAGNETIC IMMUNITY Table 2 - Guidance and manufacturer’s declaration – electromagnetic immunity. The equipment JLV/1 KERATOMETERS is intended for use in the electromagnetic environment specified below. The customer or the end user of the JLV/1 KERATOMETERS should assure that it is used in such an environment.
  • Page 16 INSTRUCTIONS FOR USE TABLE 3 - Guidance and manufacturer’s declaration – electromagnetic immunity The equipment JLV/1 KERATOMETERS is intended for use in the electromagnetic environment specified below. The customer or the end user of the JLV/1 KERATOMETERS should assure that it is used in such an en- vironment.
  • Page 17: Installation

    INSTALLATION B1. INSTALLATION AND COMMISSIONING All equipment composing the system is always delivered packaged in optimal conditions to withstand standard transport and storage conditions. In the event that, when removing the device from its packaging, damages due to transport are detected, please contact the installer com- pany or the manufacturer directly.
  • Page 18: B2. Functional Block Diagram

    INSTALLATION B2. FUNCTIONAL BLOCK DIAGRAM TRANSFORMER INSULATING CASE 25VA POWER SUPPLY 18/24...
  • Page 20 COSTRUZIONE STRUMENTI OFTALMICI S.r.l. Costruzione Strumenti Oftalmici Via degli Stagnacci 12/E 50018 Scandicci (FI) - ITALY phone: +39 055 722191 · fax: +39 055 721557 cso@csoitalia.it www.csoitalia.it 90000012 r e v . 0 0 1 0 3 / 2 0 1 4...
