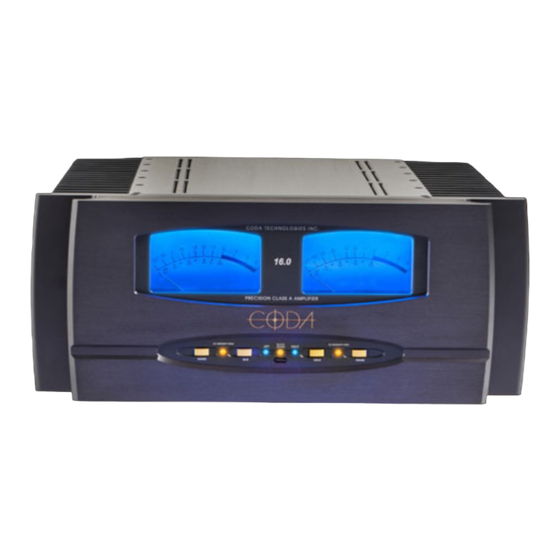

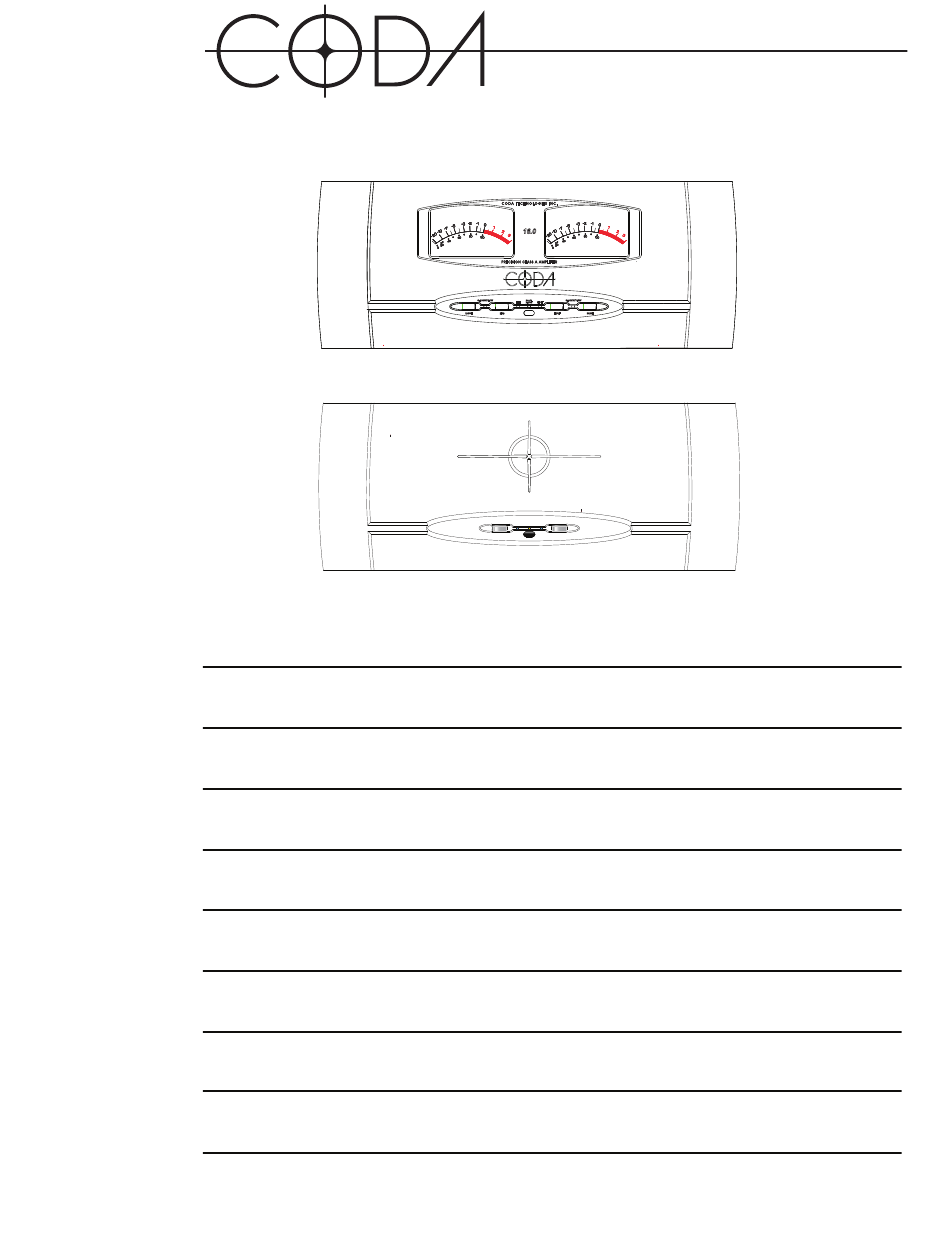

AMPLIFIER 16.0 OPERATION MANUAL 16.0 G-300W/Y-5W G-300W/Y-5W RANGE RANGE RCA/YL LEFT XLR/GN RIGHT BIAS INPUT CODA TECHNOLOGIES INC. 16.0 PRECISION BIAS AB AMPLIFIER SAFETY PRECAUTIONS INTRODUCTION INITIAL SETUP DETAILED INSTALLATION DESIGN PHILOSOPHY TECHNICAL DATA CARE & HANDLING WARRANTY & DISCLAIMER... -
Page 2: Safety Precautions
SAFETY PRECAUTIONS CAUTION CAUTION WARNING WARNING CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. THIS SYMBOL IS TO ALERT YOU OF THE PRESENCE OF UNINSULATED DANGEROUS VOLTAGE WITHIN THE UNIT'S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing the AMPLIFIER 16.0. This amplifier is a precision device, designed in an effort to provide the listener with unmatched sound quality through superb design and construction. Although its operation is fairly simple, in order to operate your amplifier properly and to realize all of the capabilities of the amplifier we recommend that you read this entire manual carefully. -
Page 4: Amplifier 16.0
Connecting or disconnecting cables while the amplifier is powered on could cause damage to your speakers. The diagram below shows the default connections necessary to operate the 16.0 as a stereo amplifier. This is the simplest and most common mode of operation, and the quickest way to get started. -
Page 5: Detailed Installation
When changing voltages, ensure that the power cable is disconnected from the amplifier. NOTE: If the fuse in your amplifier blows, contact a Coda dealer or call Coda directly before attempting to use the amplifier again. - Page 6 RIGHT XLR/GN BIAS INPUT 16.0 CODA TECHNOLOGIES INC. PRECISION BIAS AB AMPLIFIER Note: If a power interruption occurs to the system the amplifier will power on with the bias off. Press the bias button to resume use of the amplifier.
- Page 7 The 16.0 normally operates in stereo mode, providing a maximum output power of 150 watts Class AB (into an 8-ohm load) per channel. In bridged mode, both channels act as one amplifier providing a maximum output power 600 watts.
- Page 8 DETAILED INSTALLATION IV. BRIDGED SETUP DIAGRAM...
- Page 9 DETAILED INSTALLATION REMOTE OPERATION The 16.0 can be operated by remote control. The MX-450 Learning Remote is included with the amplifier. For instructions on using the MX-450 itself see the on screen manual included in the remote.
- Page 10 DETAILED INSTALLATION LOGO LIGHT CONTROL WARNING: Disconnect the amplifier’s power cord from the AC supply and set the power switch to OFF before making any internal adjustments to avoid personal injury due to high internal voltages. The light behind the logo on the front panel of your amplifier can be enabled and disabled by setting internal switches inside the amplifier’s chassis.
-
Page 11: Design Philosophy
The subtlety of the design process at this level of performance makes it impossible to easily explain all of the advantages inherent in the 16.0. However, we present here an overview to give you an understanding of some of its unique features and an idea of the listening experience you can expect. - Page 12 The 16.0 uses six massive aluminum heat sinks without fans for efficient, noiseless and clean thermal relief. The thermal coefficient of the 16.0 heat sinks is one of the lowest and most effective in the audio industry.
- Page 13 DESIGN PHILOSOPHY II. Material Quality The amplifier’s chassis is made from machined aluminum. All exterior metal parts are anodized or powder coated for durability. Printed circuit boards are fiberglass epoxy with gold plating over a tin/nickel barrier. The gold layer will not corrode, while the barrier layer prevents the gold from migrating to the lower copper layer.
-
Page 14: Technical Data
TECHNICAL DATA STEREO Rated Power: 150 Watts class AB (100 Watts class A) @ 8 Ohms, 300 Watts class AB @ 4 Ohms Frequency Response: DC to -3dB @ 100kHz Distortion: < .02 percent from 10Hz to 20kHz @ rated power Gain: 26dB Maximum Current:... -
Page 15: Care & Handling
If a cleaner is necessary, any dilute commercial ammonia based product will be appropriate. NEVER use any abrasive rags, cleaners or chemical solvents on Coda products. When handling the unit, take care not to mar the aluminum. Aluminum is a medium hardness metal and can be scratched by the harder tool steels. -
Page 16: Warranty & Disclaimer
Coda Technologies without charge for parts or labor, for a period of ten years from date of original purchase. Coda Technologies will provide for surface transportation to and from the factory for a period of one year from date of original purchase. -
Page 17: Warranty Registration
WARRANTY REGISTRATION Fill in this registration sheet and fax or mail it to Coda Technologies to ensure you are in our warranty system. This will facilitate warranty service should it become necessary. It is recommended that you retain a copy of this form for your own records. Coda Technologies’... - Page 18 WARRANTY REGISTRATION Fill in this registration sheet and fax or mail it to Coda Technologies to ensure you are in our warranty system. This will facilitate warranty service should it become necessary. It is recommended that you retain a copy of this form for your own records. Coda Technologies’...
- Page 19 7850 CUCAMONGA AVENUE #34 SACRAMENTO, CA 95826 USA +01 916.383.3653 +01 916.455.3653 phone CODA.CC on the web at info@coda.cc email us at...
