Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
Assemble the product as close to its intended final location/room as possible.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Further instructions are on the following pages.
Please keep these instructions for future reference.

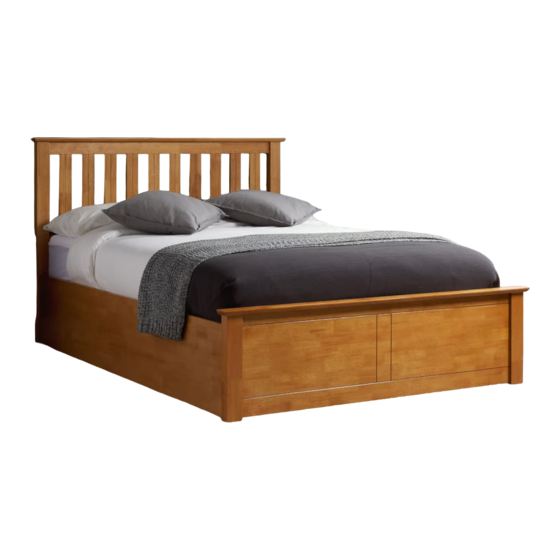

Phoenix Ottoman Bed -
Double
Assembly Instructions
.
www.happybeds.co.uk
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Happy Beds Phoenix
Summary of Contents for Happy Beds Phoenix
- Page 1 Phoenix Ottoman Bed - Double Assembly Instructions Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
- Page 2 These tools are not necessary, but may help to assemble the product. Do NOT use any power tools as this may damage the frame. (Not metal) This product or some parts of this product will be heavy. Please use an assistant when lifting. Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints.
- Page 3 Important for Ottoman and other gas lift beds Note: The bed base is in the upright position when first assembled as the gas lifts are fully extended during shipment for safety. After assembly a firm downward push will be required to overcome any resisitance in the gas lifts as these may initially stick.
- Page 4 Parts List Parts Description Top Bar 震 Headboard Frame ¼ ---� 迁 Left Wooden Post ¾ 夕 乡 乡 Right Wooden Post 多 [:JO Footboard ¼ L - '. · .. � Left Side Rail 仁 二 二 了 Right Side Rail 仁...
- Page 5 Hardware List (Found in box#) Parts Description Q t y ~渗恁 Mini Fix 怎 8 x 30 mm Wooden Dowel 尸 Metal Corner Block - ＿ M6 x 90 mm Barrel Nut �� M6 x 16 mm JCBC Bolt 沪 M8 x 20 mm JCBC Bolt �...
-
Page 6: Front View
Step 1: Attach the headboard frame (2) and back storage panel (9) to the left wooden post (3) and right wooden post (4). Secure the headboard frame using hardware parts B, D and 0, then secure the back storage panel with hardware parts B,E and I. FRONT VIEW Step 2: Firstly screw the minifit part A to the top bar (1) as shown and then fix the top bar (1) to the headboard frame (2) and L/R wooden post (3)(4) using hardware parts A;then paste the sticker Y. - Page 7 Step 3: Firstly screw the minifit part A to the top bar (1) as shown and then fix the top bar (1) to the footboard frame (5) using hardware parts A;then paste the sticker Y. Step 4: Firstly, fix the hydraulic pump to each hydraulic base as shown in diagram 4.1. Next fix the left and right hydraulic spacer together with the hydraulic base supports on to both side rails using bolts H.
- Page 8 Step 5: Join together the left side rail (6) and right side rail (7) with the centre storage panels (8) using hardware parts A and B. Step 6: Fix side rail to the headboard and footboard with hardware as shown.
- Page 9 Step 7: Fix metal corner block C to the edge of footboard and side rails with bolt G as shown. Step 8: Join together all the bed base parts (11),(12),(13),(14) and (15) using hardware parts G,X & Rand also slide part P onto Part 14 before bolting together. And then attach hardware parts J as shown. Important note : Please assemble follow arrow direction.
- Page 10 Step 9: Insert the slats (17) to hardware parts M and N then press into the base making sure they are secure. Step 10: Assemble the bed base on the right & left hydraulic frame and fix bolts L starting from'1'to'3'as shown and fix the support leg (16) to the bed base as shown .
- Page 11 Step 11: Adjust the bed base making sure that the distance to the footboard is approximately 15 mm to above. Tighten all bolts and screws now. HEADBOARD 15 mm to above FOOTBOARD...
- Page 12 CAUTION : PLEASE USE HYDRAULIC PUMP STOPPER FOR SAFETY PURPOSE. HYDRAULIC PUMP STOPPER (LOCK IN) (LOCK OUT)
- Page 13 Important for Ottoman and other gas lift beds Please follow these final steps to ensure the best experience with your new bed • Please ensure the pistons are fitted to the bed frame. • Please place the mattress on top of the bed frame. •...
-
Page 14: General Care And Maintenance
Please dispose of all packaging safely. General Care & Maintenance Wipe clean with a slightly damp cloth. Avoid the use of all household cleaners and abrasives. Periodically check all screw & fixings to ensure they are secure. When moving your product, carefully lift into place. Never drag or push the product across the floor as this will cause damage to the joints.
