Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
Assemble the product as close to its intended final location/room as possible.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Further instructions are on the following pages.
Please keep these instructions for future reference.

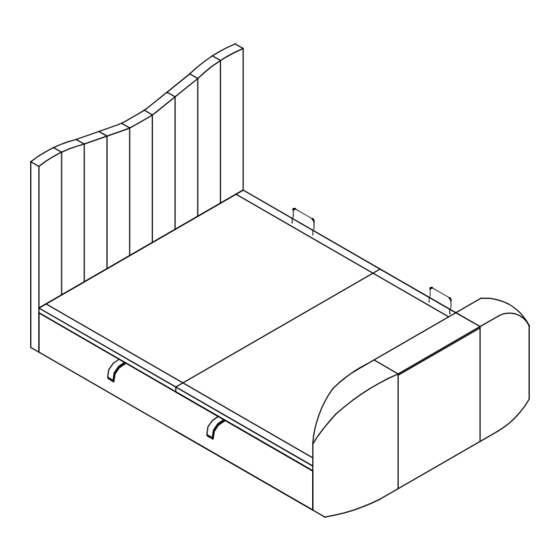

Prince Ottoman TV Bed
Assembly Instructions
.
.
www.happybeds.co.uk
Page 1 of 14
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Happy Beds Prince
Summary of Contents for Happy Beds Prince
- Page 1 Prince Ottoman TV Bed Assembly Instructions Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
- Page 2 No Part List No Part List Mattress stoppers Headboard 1 pc 2 pcs 1 pc Footboard 1 pc Mattress base board 2 pcs Side rails Mattress base board 1 pc Double 2 pcs “U” shaped cross bar 1 pc Mattress base board support rail &...
- Page 3 HARDWARE NEEDED FOR BED ASSEMBLY (PACK A) Hardware List Hardware List 24 pcs Bolt (M8x20mm) Allen key for M8 bolts 1 pc Plastic spacer for lift 4 pcs 8 pcs Bolt (M8x65mm) mechanism (7a & 7b) Double 12 pcs & King Hook bracket 2 pcs Bolt (M8x45mm)
- Page 4 Step 1: Hook bracket 12 pcs 2 pcs Bolts (M8x20mm) Allen key for 1 pc Hook bracket 2 pcs M8 bolts Headend A x3 Footend A x3 Step 2: Allen key for 8 pcs Bolts (M6x35mm) 1 pc M6 bolts Page 4 of 14...
- Page 5 Note: Please choose which side of the slat-frame to lift up to reach into the storage area Step 3a: then depending which size of bed you have purchased. Bolts (M8x35mm) 4 pcs 4 pcs Bolts (M8x65mm) Allen key for Plastic spacer for lift 1 pc 8 pcs M8 bolts...
- Page 6 Step 4: Allen key for 12 pcs Bolts (M8x35mm) 1 pc M8 bolts E x3 E x3 Step 5: Allen key for Bolts (M8x45mm) 4 pcs 1 pc M8 bolts C x2 Make certain the bed is squared up as shown in the diagram then tighten all bed assembly bolts 100%.
- Page 7 Step 6: Fit the fabric base cover (9) evenly around the inside of the bed. Step 7: Connect the mains power lead (17) to your wall socket - for safety this must be an earthed power supply. Press the “UP” button to raise the TV lift.
- Page 8 Step 11: Note: For illustration purposes only, TV connections may vary. Tip: Before fitting the TV, push cables through each duct from the top choosing the best side to use depending on where the connection ports are on back of your TV. Never cross cables from one side of the footboard to the other unless cable is threaded behind the TV supports, in front of the TV Lift.
- Page 9 Step 13: If the TV is supplied with Vesa bolts and spacers, please use those in preference to those provided Check the hardware supplied with the TV BRACKET television and if Vesa bolts and spacers are supplied please use these to fit the TV. When spacers are provided it is very important that these are fitted in the correct place, fit between TV...
- Page 10 Note: For illustration purposes only, TV connections may vary. Step 15: TV power lead Keep all leads tight, peel supplied with your TV off cover from cable clips & adhere to back of TV. KEEP ALL CABLES TIGHT BY USING CLIPS &...
- Page 11 Step 15: Double 8 pcs Allen key for & King Bolts (M8x45mm) 1 pc M8 bolts 12 pcs Super King C x4 C x4 C x4 C x4 C x4 Step 16: Allen key for 6 pcs 1 pc Bolts (M8x20mm) M8 bolts A x2 &...
- Page 12 Step 15: Flanged M8 lock-nuts Spanner for flanged 4 pcs 1 pc M8 lock-nuts for gas-lift piston SMALL GAP Step 16: Allen key for 6 pcs Bolts (M8x20mm) 1 pc M8 bolts & A x3 Page 12 of 14...
- Page 13 TURN AMPLIFIER ON or OFF. 1) Turn on the mains power to the TV Bed. 2) Press the Remote Control (RC) ON button for 2 seconds to synchronise and prepare the system, system voice shall say 'Power On'. 3) When finished press the OFF button for 2 seconds. LIFT or LOWER THE TV.
-
Page 14: Technical Specifications
Technical Specifications Overall Dimensions (LWH mm) Double : 2200 x 1380 x 1300 King: 2300 x 1530 x 1300 Super King: 2300 x 1830 x 1300 Internal Dimensions (LWH mm) Double: 1900 x 1330 x 280 King : 2030 x 1480 x 280 Super King: 2030 x 1780 x 280 Ottoman Piston Strength &...
