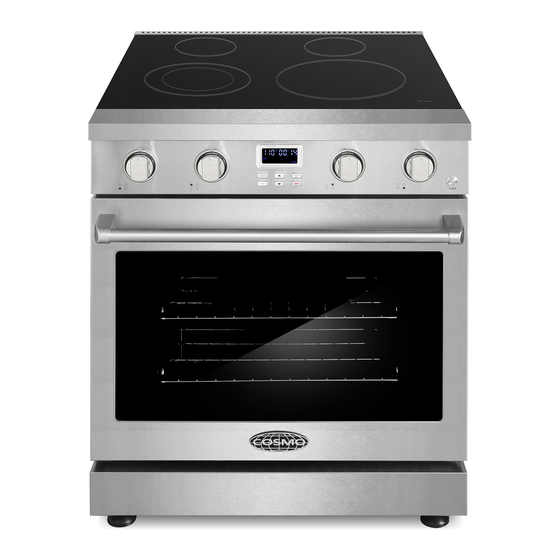

- Page 1 ELECTRIC RANGE COS-ERC304KBD COS-ERC365KBD SLIDE-IN RANGE INSTALLATION INSTRUCTIONS IMPORTANT: READ AND SAVE THESE INSTRUCTIONS. FOR RESIDENTIAL USE ONLY. INSTALLER: PLEASE LEAVE THESE INSTRUCTIONS WITH THIS UNIT FOR THE OWNER. OWNER: PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. Rev.24.03...
- Page 2 COSMO Appliances are designed according to the strictest safety and performance standard for the North American market. We follow the most advanced manufacturing philosophy.
-
Page 3: Table Of Contents
TABLE OF CONTENTS RANGE SAFETY....................4 Anti-tip Device ......................5 INSTALLATION REQUIREMENTS ................ 7 Tools and Parts ......................7 Location Requirements .................... 9 Product Specifications ....................11 Product Dimensions ....................12 Clearances ......................... 14 Electrical Requirements ................... 16 INSTALLATION INSTRUCTIONS ................. 19 Remove Old Appliance ................... -
Page 4: Range Safety
RANGE SAFETY READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. -
Page 5: Anti-Tip Device
ANTI-TIP DEVICE WARNING TIP OVER HAZARD • A child or adult can tip the range and be killed. • Install anti-tip bracket to floor or wall per installation instructions. • Slide range back so rear range foot is engaged in the slot of the floor- mounting anti-tip bracket or rear range pin is engaged under the wall- mounting anti-tip bracket. - Page 6 WARNING • This appliance is intended for normal residential use. It is not approved for commercial use, outdoor installation, or any other application not specifically allowed by this manual. • This appliance requires connection to a 3-prong or 4-prong, 240VAC single-phase (split-phase), 60Hz grounded electrical source dedicated to the appliance.
-
Page 7: Installation Requirements
INSTALLATION REQUIREMENTS TOOLS AND PARTS Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here. TOOLS NEEDED • Tape measure • Adjustable wrench or pliers • Phillips screwdriver • Marker or pencil •... - Page 8 PARTS SUPPLIED Control knobs Oven door handle 30" Model: COS-ERC304KBD (4) 36" Model: COS-ERC365KBD (6) Handle end caps with set screws (2) Rear rubber pads (2) Floor-mounting anti-tip bracket Wall-mounting anti-tip bracket with mounting screw s with mounting scre w s 30"...
-
Page 9: Location Requirements
LOCATION REQUIREMENTS IMPORTANT: Observe all governing codes and ordinances. Do not obstruct flow of combustion and ventilation air. • It is the installer's responsibility to comply with installation clearances specified on the model/serial/rating plate. The model/serial/rating plate is located behind the oven door on the oven frame, and is also on the back panel of the range. - Page 10 IMPORTANT: To avoid damage to your cabinets, check with your builder or cabinet supplier to make sure that the materials used will not discolor, delaminate, or sustain other damage. Mobile Home - Additional Installation Requirements • The installation of this range must conform to the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD Part 280).
-
Page 11: Product Specifications
PRODUCT SPECIFICATIONS Model COS-ERC304KBD Description 30" Electric Range Oven Capacity 4.8 cu. ft. Electrical Requirements 120/240VAC 60Hz, 120/208VAC 60Hz Power Ratings Refer to Rating Plate Exterior Dimensions (WxDxH) 29 ⁄ " x 29 ³⁄ " x 36 ¹⁄ " (75.9 x 75.5 x 91.8 cm) Height to Cooking Surface 36"... -
Page 12: Product Dimensions
PRODUCT DIMENSIONS Your model may appear different from the model depicted. Dimensions given are maximum dimensions. COS-ERC304KBD 27 ³⁄ in 29 ⁄ in (70.4 cm) (75.9 cm) 36 ¹⁄ in (91.8 cm) (68.6 cm) 48 ⁄ (123.5 cm) Door fully open 29 ⁄... - Page 13 COS-ERC365KBD 35 ⁄ in (91.1 cm) 27 ⁄ in (70.1 cm) 36 ¹⁄ in (91.6 cm) (68.6 cm) 48 ⁄ (123.5 cm) Door fully open 35 ⁄ in 29 ¹ ⁄ in (91.1 cm) (76.1 cm) 36 ¹⁄ in 36 in (91.6 cm) (91.4 24 ³⁄...
-
Page 14: Clearances
(76.2 cm) (15.2 cm) (15.2 cm) 18 in to left to right (45.7 cm) wall wall 36 in 24 in (91.4 cm) (61 cm) Lower Cabinet Depth Model Horizontal Clearance COS-ERC304KBD (30") 30" (76.2 cm) COS-ERC365KBD (36") 36" (91.4 cm) - Page 15 IMPORTANT: An electrical outlet in the floor, may be either recessed or surface mounted, but an electrical outlet in the wall must be recessed to make the connection. 5" 24" 5" Electric supply area 7" 2" Model Horizontal Clearance COS-ERC304KBD (30") 30" (76.2 cm) COS-ERC365KBD (36") 36" (91.4 cm)
-
Page 16: Electrical Requirements
ELECTRICAL REQUIREMENTS WARNING ELECTRICAL SHOCK HAZARD • Do not use an extension cord with this appliance. • Remove house fuse or open circuit breaker before beginning installation. ELECTRICAL GROUNDING INSTRUCTIONS • This appliance must be properly grounded. • All new constructions, mobile homes, recreational vehicles and installations where local codes do not allow grounding through neutral, require a 4-conductor UL-listed range cord. - Page 17 ELECTRICAL CONNECTION If codes permit and a separate ground wire is used, it is recommended that a qualified electrical installer determine that the ground path and wire gauge are in accordance with local codes. WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
- Page 18 • Using an extension cord to connect the power is prohibited. Connect the power cord and plug directly. • Wire sizes and connections must conform with the rating of the range. • If using a GFI breaker, the ground wire must be installed correctly to prevent breaker from tripping.
-
Page 19: Installation Instructions
INSTALLATION INSTRUCTIONS IMPORTANT: This appliance shall be installed only by authorized persons and in accordance with the manufacturer's installation instructions, municipal building codes, and electrical wiring regulations. REMOVE OLD APPLIANCE WARNING ELECTRICAL SHOCK HAZARD • Remove house fuse or open circuit breaker to disconnect power before servicing. -
Page 20: Unpack Range
Move appliance to access the electrical connection and gas connection if applicable. Disconnect electrical connection and gas connection if applicable, and move appliance out of and away from installation space. UNPACK RANGE WARNING EXCESSIVE WEIGHT HAZARD • Use two or more people to move and install range. Failure to do so can result in back or other injury. -
Page 21: Install Rear Rubber Pads (Optional)
INSTALL REAR RUBBER PADS (OPTIONAL) 1. Locate the rubber pads from the parts bag. 2. Install the rubber pads to the back panel of range. Do not overtighten. Rubber pads... -
Page 22: Install Anti-Tip Device
INSTALL ANTI-TIP DEVICE WARNING TIP OVER HAZARD • A child or adult can tip the range and be killed. • Install anti-tip bracket to floor or wall per installation instructions. • Slide range back so rear range foot is engaged in the slot of the floor- mounting anti-tip bracket or rear range pin is engaged under the wall- mounting anti-tip bracket. - Page 23 FLOOR-MOUNTING ANTI-TIP BRACKET (30" MODEL: COS-ERC304KBD ONLY) Anti-tip bracket Range foot 1. Locate and remove the anti-tip bracket and mounting screws from the parts bag. 2. Locate the preferred location for installation of the anti-tip bracket and mark the location of the screw holes. Bracket may be installed at either the back-left or back-right corner of the installation space.
- Page 24 Rear rubber pad ¹³⁄ " (20.0 mm) Rear range foot 1 ³⁄ " Anti-tip bracket (43.6 mm) 3. Follow the instructions specific to your construction. Wood Construction • Drill an appropriate hole where screws are to be located. Screw must enter wood.
- Page 25 4. Secure anti-tip bracket to floor with the screws provided. WALL-MOUNTING ANTI-TIP BRACKET (36" MODEL: COS-ERC365KBD ONLY) Anti-tip bracket 1. Locate and remove the anti-tip bracket and mounting screws from the parts bag.
- Page 26 2. Locate the pin on the back of the range near the bottom corner. ⁄ " (16.5 mm) 3" (76.1 mm) Leveling Leg 3. Locate the preferred location on the wall for installation of the anti-tip bracket. The pin must be engaged under the arm of anti-tip bracket when sliding range into final position.
- Page 27 Rear Rubber Pad ¹³⁄ " (20.0 mm) 3 ¹⁄ " 1 ³⁄ " (80 mm) (35.4 mm) 1 ¹³⁄ " (46.1 mm) 4. Mark the location of the anti-tip bracket screw holes on the wall. 5. Drill an appropriate hole where screws are to be located. Screw mus t enter wood.
-
Page 28: Electrical Connection
ELECTRICAL CONNECTION WARNING ELECTRICAL SHOCK HAZARD • Remove house fuse or open circuit breaker to disconnect power before servicing. • This appliance must be properly grounded. • Do not use an adapter or an extension cord. • Failure to do so can result in death, fire, or electrical shock. IMPORTANT: •... -
Page 29: Connecting The Power Cord / Conduit
CONNECTING THE POWER CORD / CONDUIT 1. Access the range electrical terminal block by removing the screws attaching the lower terminal block access cover on the back of the range. Terminal block Screw access cover 2. Install the power cord or conduit. NOTE: •... - Page 30 For conduit installations • Strip outer covering back 3" (7.6 cm) to expose wires. • Strip the insulation back 3/8" (1.0 cm) from the end of each wire. • Insert the conduit strain relief in the conduit hole below the terminal block.
-
Page 31: 3-Wire Connection: Power Cord
3-WIRE CONNECTION: POWER CORD Use this method only if local codes permit connecting chassis ground conductor to neutral wire of power supply cord. WARNING • The neutral or ground wire of the power cord must be connected to the neutral terminal located in the lower center of the terminal block and the ground strap must connect the neutral terminal to the ground plate. -
Page 32: 4-Wire Connection: Power Cord
4-WIRE CONNECTION: POWER CORD Use this method for: • New branch-circuit installations (1996 NEC) • Mobile homes • Recreational vehicles • Areas where local codes prohibit grounding through the neutral WARNING • The neutral wire of the supply circuit must be connected to the neutral terminal located in the lower center of the terminal block. -
Page 33: 3-Wire Connection: Conduit
4. Insert the 3 terminal screws through each power cord terminal ring and into the lower terminals of the terminal block. Make sure that the neutral (white) wire is connected to the lower center position of the terminal block. 5. Tighten the 3 terminal screws securely into the terminal block, and replace the terminal block access cover. -
Page 34: 4-Wire Connection: Conduit
2. Insert the bare neutral (white) wire end into the lower center terminal block opening. 3. Insert the two remaining bare wire ends into the lower left and the lower right terminal block openings. 4. Tighten the 3 terminal screws securely into the terminal block, and replace the terminal block access cover. -
Page 35: Install/Remove Oven Door Handle
1. Loosen the lower left and lower right terminal screws from the terminal block. 2. Remove the lower center terminal screw and the ground screw. Remove or cut part of metal ground strap. 3. Attach the bare ground (green) wire end to the range frame and secure it in place with the ground screw. - Page 36 2. Attach handle end cap over each end of the handle, and slightly tighten the set screws for handle. 3. Place the handle on the door by fitting the handle end cap footprints over the mounting fasteners and tightening all set screws with the Hex key. Removing the Handle 1.
- Page 37 2. Loosen the set screw on one end with the Hex key while supporting the handle. Do not remove the set screw from the handle end cap. 3. Keep supporting the handle while loosening the set screw on the other handle end cap.
-
Page 38: Install/Remove Control Knobs
Be very careful not to scratch the surface of the unit. The appearance of the knobs may vary from what are shown below. Cooktop Knob Cooktop Knob Oven Light Knob (Dual Element) (Single Element) (36" Model Only) COS-ERC304KBD (30") Dual Single Single Oven element element element light COS-ERC365KBD (36") - Page 39 Installing the Control Knob 1. Hold the knob in an upright position with the OFF marking facing upward. Observe the open part centered on the back of the knob. 2. Place and align the open part on the back of the knob over the control stem that is sticking out of the control panel.
-
Page 40: Complete Installation
COMPLETE INSTALLATION PLACEMENT AND LEVELING RANGE WARNING ELECTRICAL SHOCK HAZARD • Plug into a grounded outlet. • Do not use an adapter or an extension cord. • Failure to do so can result in death, fire, or electrical shock. WARNING EXCESSIVE WEIGHT HAZARD •... - Page 41 • Use a belt when moving the range to prevent damaging the floor, or use cardboard, plywood, or stiff plastic to protect floors if sliding is necessary. • Be careful not to pinch or kink the electrical connection. If unit does not move in smoothly, check for obstructions.
-
Page 42: Verify Anti-Tip Bracket Engagement
VERIFY ANTI-TIP BRACKET ENGAGEMENT Do not operate the range if its rear foot is not engaged in the slot of the floor- mounting anti-tip bracket or its rear pin is not engaged under the arm of wall-mounting anti-tip bracket. IMPORTANT: If the range is pulled away from the wall for any reason, always verify anti-tip bracket engagement again. -
Page 43: Removing/Assembling Oven Door
REMOVING/ASSEMBLING OVEN DOOR For normal range use, it is not suggested to remove the oven door. However, if removal is necessary, make sure the oven is off and cool. NOTE: • The oven door is heavy. • If door is removed, confirm that door operates correctly and seals properly when reinstalled. - Page 44 Assembling Door 1. Firmly grasp both sides of the door. 2. With the door at the same angle as the removal position, which is approximately five degrees or 2-3 inches from being fully closed, seat the indentation of the hinge arms into the bottom edge of the hinge slots.
-
Page 45: Checking Operation Of The Surface Heating Elements
CHECKING OPERATION OF THE SURFACE HEATING ELEMENTS COS-ERC304KBD (30") COS-ERC365KBD (36") -
Page 46: Checking Operation Of The Oven
STANDARD SURFACE HEATING ELEMENTS • Turn each knob to the "Hi" position to check that the surface heating elements are working properly. The elements should glow red and radiate heat, and they should cycle on and off periodically even when the knob is in the "Hi" position. DUAL SURFACE HEATING ELEMENTS •... - Page 47 To Check Bake Heating Element: 1. Keep the oven door closed. The oven heating elements will turn off when oven door is open. 2. Press repeatedly to select Bake mode, and press START/OK. 3. Press/Hold to adjust bake temperature setting to 175°F while it is flashing, and press START/OK.
- Page 48 IMPORTANT Do Not Return This Product To The Store If you have a problem with this product, please contact COSMO Customer Support at +1 (888) 784-3108 DATED PROOF OF PURCHASE, MODEL #, AND SERIAL # REQUIRED FOR WARRANTY SERVICE. IMPORTANT Ne pas Réexpédier ce Produit au Magasin...
- Page 49 MEMO...
- Page 50 MEMO...
- Page 51 MEMO...
- Page 52 APPLIANCES Cosmo is constantly making efforts to improve the quality and performance of our products, so we may make changes to our appliances without updating this manual. Electronic version of this manual is available at: www.cosmoappliances.com...
