Prev: go to the previous step
Max/Current display: The digital display beneath the Max current label shows the current number of
steps and the maximum number the sequencer will reach before looping. Click on the label to see the
sequencer's preset name. In this mode you can click into the display to edit and change the name.
Clicking on the maximum step number will increase (left click) or decrease (right click). Clicking on
the current step number will increase or decrease it which means that the sequence will begin from that
point.
To help with your creative workflow, independent
sequencer presets can be saved and recalled.

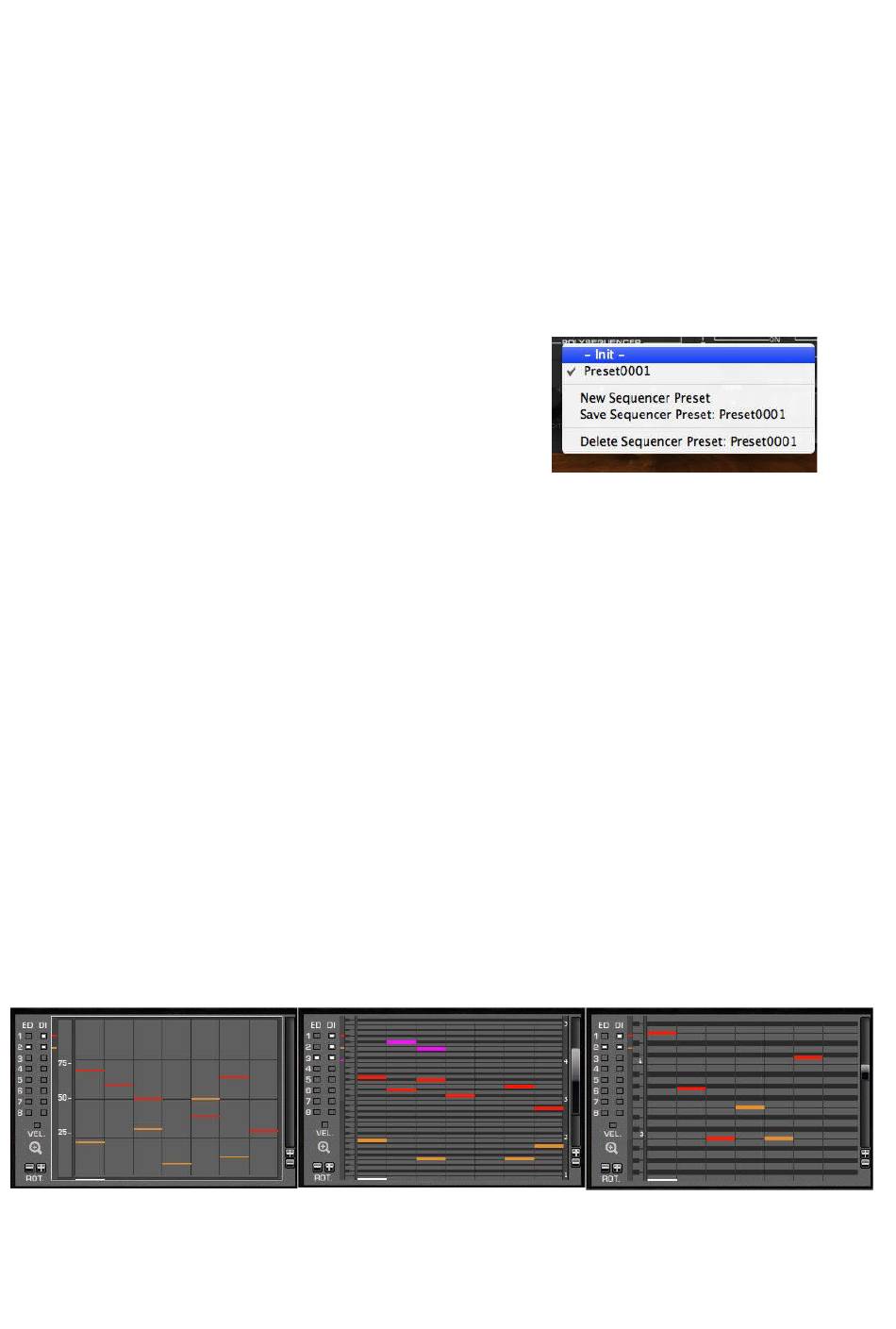

Preset: This button opens a menu that shows you the
available sequencer presets for recall:
6.3.1

Sequencer display module

The PolyKB's sequencer display panel makes it easy to create, verify and modify your sequences.
Three zoom modes can be used to display the internal values, selected by the '+' and '–' buttons. Zoom
1 shows the entire range of values, useful when using the sequencer to modulate parameters such as
filter frequency, oscillator level or shape. Zoom 2 and Zoom 3 show four and two octaves respectively.
The slider allows you to move the displayed part inside the whole range.
The current time slot is shown as a white cursor line at the bottom of the view.
Each of the current sequences is displayed in a different color. The sequences can be highlighted or
hidden by checking or un-checking the corresponding colored boxes to the left of the event display.
You can also modify the sequencer with the mouse: select the sequence you want to adjust (Ed check
boxes) with the left button, click on the panel to add or modify a step, with the right button, click to
erase a step.
Zoom 1 Zoom 2 Zoom 3
