Xils lab PolyKB III User Manual page 21

hold). Then when the note in off, it goes into the "release" stage, while the output continuously
decreases to zero, depending to the Release setting.

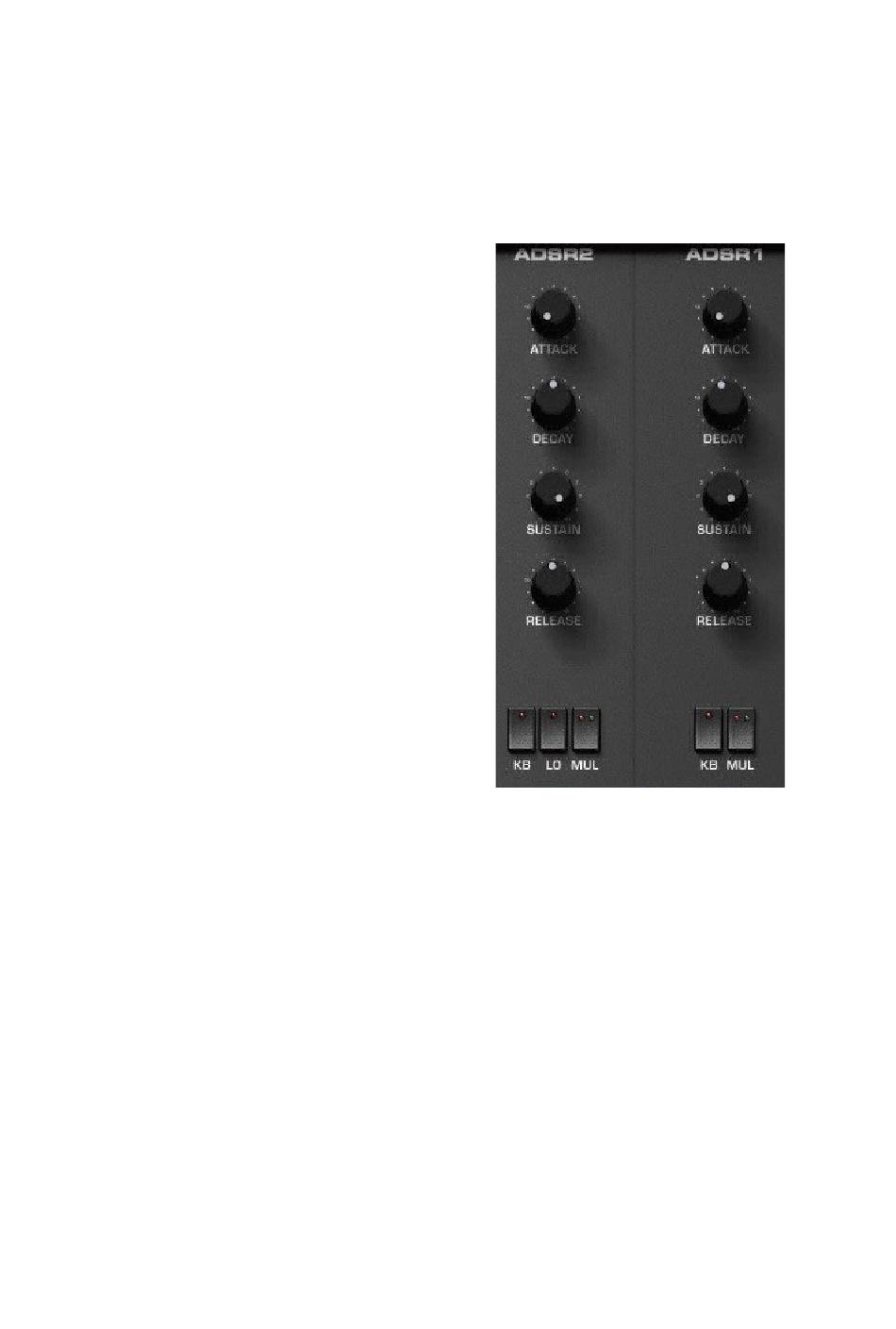

ATTACK: set the time over which the output
increases.
DECAY: set the time the output decreases to the
sustain level.
SUSTAIN: set the sustain level, maintains while
the EG is gated (the note is held)
RELEASE: set the time the output decrease to
zero after the note is released.
While knobs control the last 4 parameters, there
are additional features, which are all controlled by
switches. As always a function is active when the
diode is lit.
KB : Key track, Connect keyboard follow to the
EG's parameter modulation. The highest the note
played, the shortest the attack will be.
LO : Loop, set the ADSR 2 or 3 in a loop mode.
This means that as long as the note is held, the EG
cycles from attack to release, while bypassing the
sustain stage
MUL : Multiplies the ADSR parameters by a
factor 2, 3 or 4. This parameter is especially
handy when you need very long attack times, or
decays ( Example : Pads )
