6.5.2.2 VOICE XY Destinations
The points on the four axis can control the same destination parameters than described in the User-
modulation panels (section 6.1.6.3)

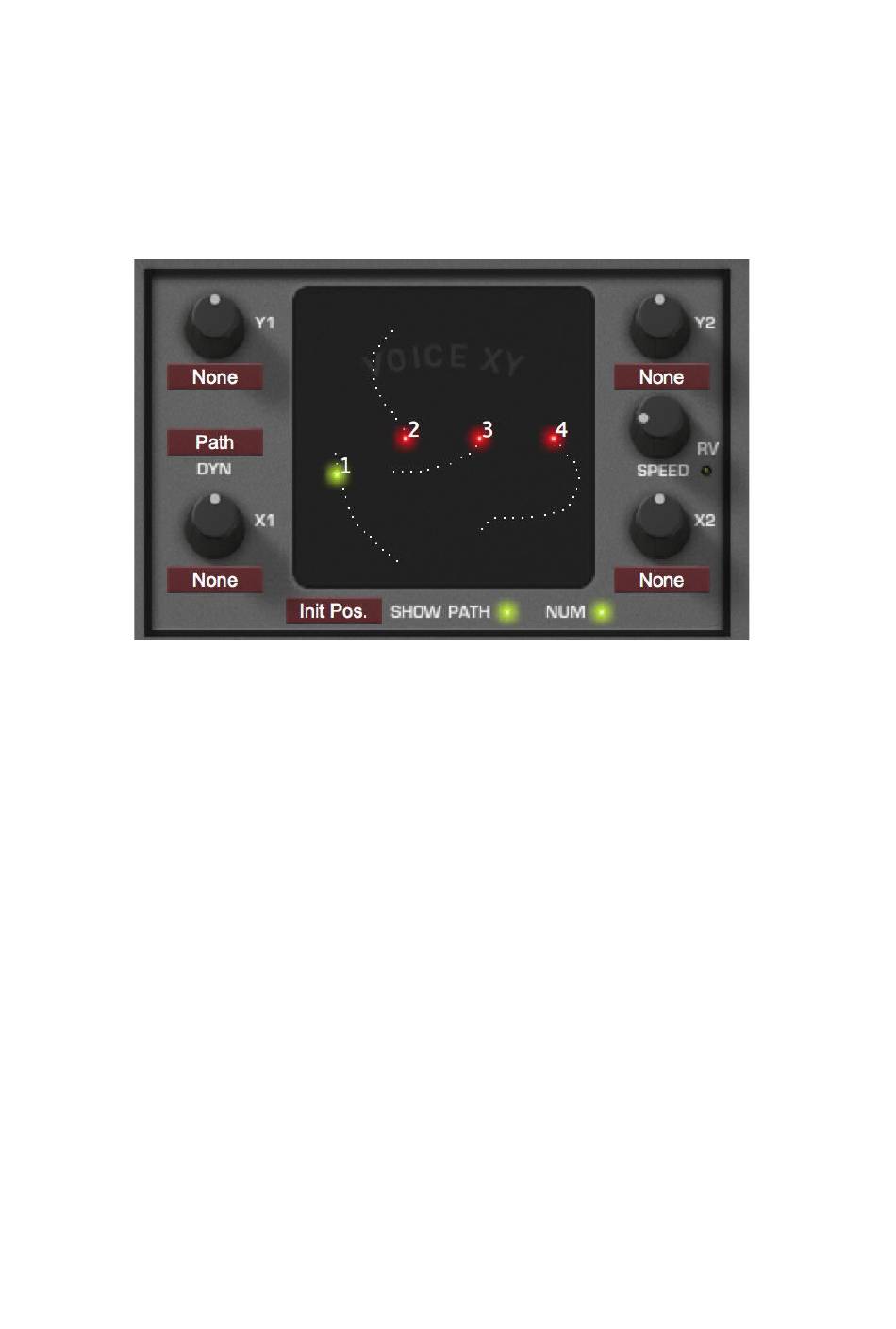

6.5.2.3 Operating the VOICE XY :
Each voice is represented by a Red Circle, just move the points across the Pad to give them the position
you wish.
Please note that you can monitor each voice in real time when playing, as the status of the current voice
will change from a red circle to a green one when this voice is active.
Please note that the Polyphony assignation mode works together with the Unison mode: If a Unison of
two voices have been selected, each note pressed on the keyboard will trigger TWO voices, and
therefore two circles will become green. ( So a 4 notes chord will make 8 circles or voices become
active and turn to the green status ).
This module, Polyphonic Modulation YX pad, allows you to position each available voice inside the
modulation space. Click on a voice inside the 2-D positioning screen and move it. You can put it left, right,
but also up or down.
The X or Y axis are used to modulate two destinations according to their dedicated amount level, specified by
the 4 amount knobs located at the corners of the XY Pad.
Init.Pos.: This opens a menu to set voices in pre-recorded places. "Random Wide" puts them randomly
within all the available space while "Random Tiny" in a smaller space, keeping voices close to each
other.
DYN: Path for the voice to follow a recorded path, OFF for not moving the dots
