6.3 Sequencer

The PolyKB has a powerful polyphonic sequencer that can help you to create complex sequences and
incredible special effects.
As the output values of the PolyKB's sequencer are hidden, it can perhaps be a little confusing at first.
But the power and versatility of this concept, in contrast to most other analogue sequencers of the time,
is a good reason to get to know it!
First to know, this sequencer is polyphonic. That means that you can record/play up to 8 voices with
different sequences. The switch Voices Select allow you to choose which voices will be recorded or
played. When both record and play are selected, then you will hear all the already recorded voices while
record only the selected voice.

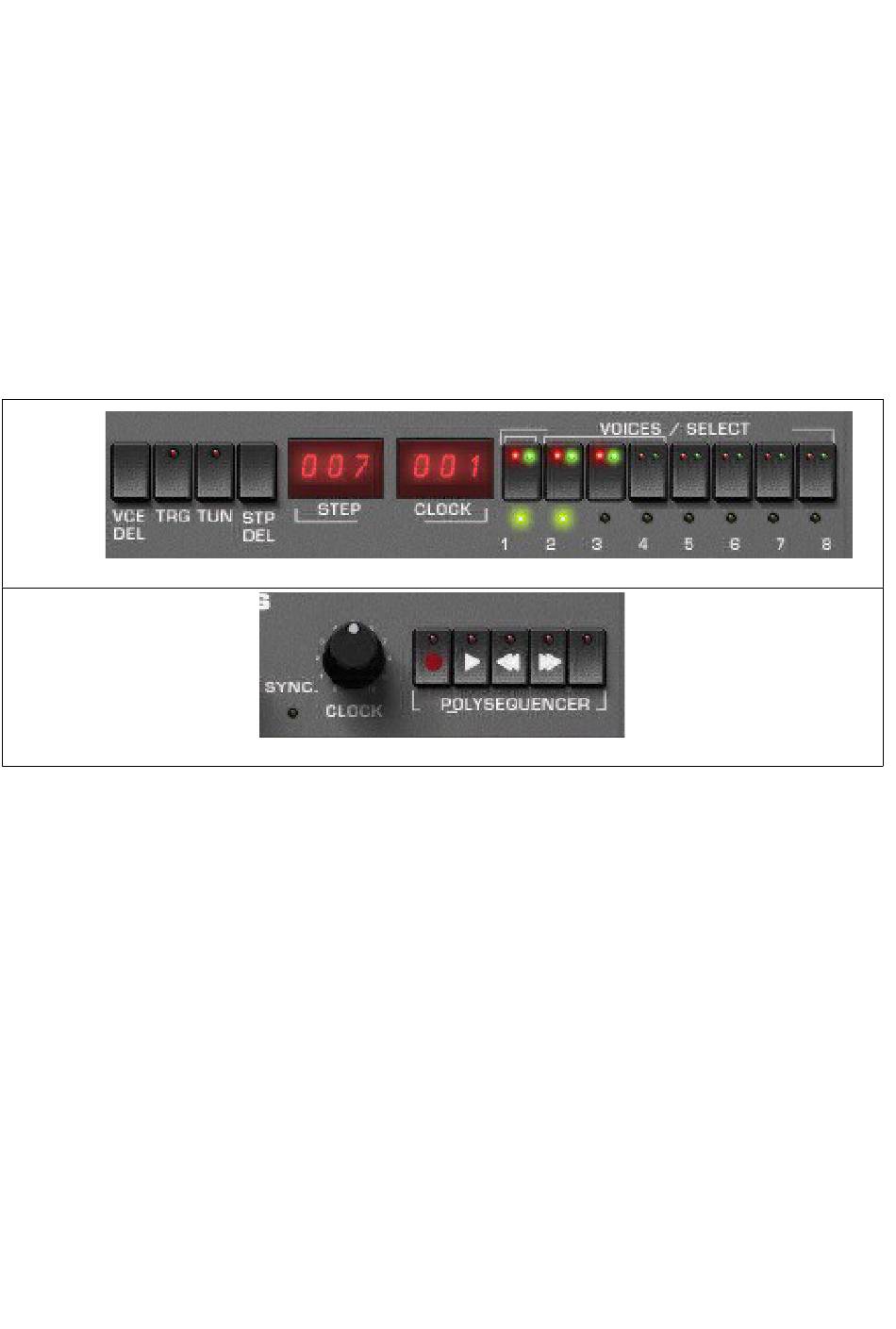

Voices select: select the voices to be recorded or played.
VCE DEL : (Voice delete) delete all the selected voice. A confirmation panel opens, but be careful,
there is no undo.
STP DEL : (Step delete) delete the current step of the voices selected. Be careful, there is no
confirmation panel.
TRG : (Triggered) When on, this switch will start the sequencer (in play mode only) when a note is
held. It stops when the note in released.
TUN : (Tuned) When on, this switch allows the tuning of the sequences according to the lowest note
played on the keyboard.
Step/Run: When on, this switch allows the sequencer to run step by step (record or play).
Each note recorded increments the step by one.
Next: go to the next step
