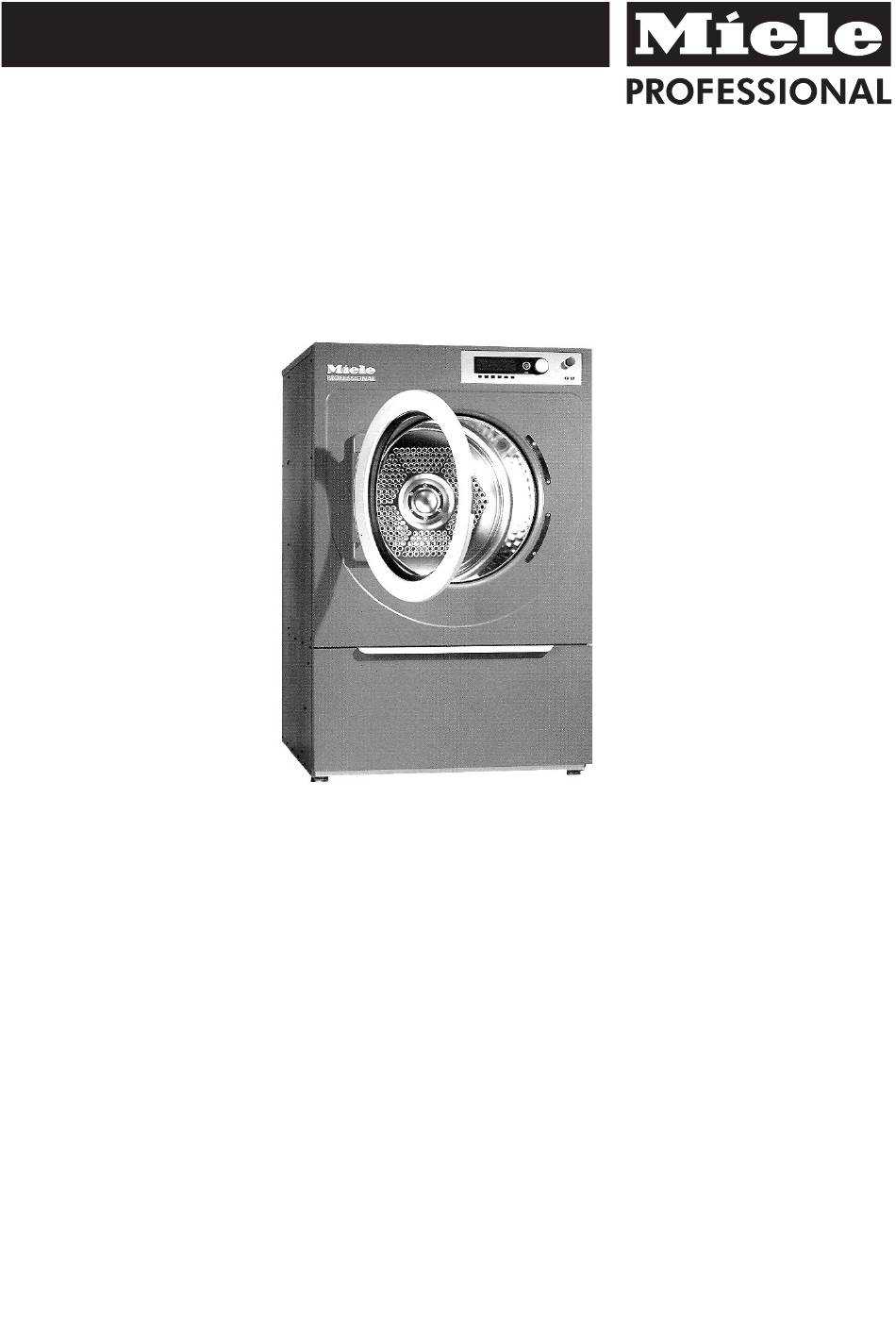

- Page 1 Operating and Installation instructions PT 7251 PT 7331 PT 7401 PT 7501 To prevent accidents en - US and machine damage read these instructions before M.-Nr. 06 578 551 installing or use.
-
Page 2: Table Of Contents
Contents IMPORTANT SAFETY INSTRUCTIONS ......... . . 3 Guide to the tumble dryer . -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: For your safety the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or death. Do not store or use gasoline or other flammable vapors –... - Page 4 IMPORTANT SAFETY INSTRUCTIONS Repairs to electrical and gas appliances Installation, repair and maintenance work should only be carried out by a Miele should be performed by a Miele Service Technician in accordance with local authorized service technician. Work by and national safety regulations. unqualified persons could be dangerous Unauthorized repairs could cause injury or and may void the warranty.
- Page 5 IMPORTANT SAFETY INSTRUCTIONS Some textiles get very hot during drying which may pose a risk of ignition. Remove the laundry at the end of the This appliance is intended for use only program and after a power failure. Keep a with fabrics that have been washed with fire extinguisher near the machine at all water as a cleaning agent.
- Page 6 IMPORTANT SAFETY INSTRUCTIONS Gas heated dryers Do not use the machine without the built-in filter in place. Fire hazard. Close the gas valve and the shut-off A damaged lint filter must be replaced device at the gas meter if there is a immediately.
-
Page 7: Guide To The Tumble Dryer
Guide to the tumble dryer a Control panel f Electrical connection b Emergency Stop button g Air intake opening h Vent connector Pressing the red button turns the machine off immediately. Only use in case of i Communication module emergency. j Equalizer c Drum door Pull the door rim to open the drum door. -
Page 8: Operating Panel
Guide to the tumble dryer d Optical interface PC Operating panel For data transfer between the machine’s a Display* controls and a PC. Hot W. / Cot. extra dry e Jog shuttle Hot Wash / Cottons dry Turn the jog shuttle for display selections Hot Wash / Cottons moist and input fields. - Page 9 Guide to the tumble dryer Control keys Operator card f Stop / End No programs are saved on this card. To Press to stop a selected program or end an transfer the data from the control to the card already stopped program. and vice versa see the Programming Manual.
-
Page 10: Use
Before first use Important ^ Wipe the interior of the drum with a soft dry – Do not tumble dry articles made from pure cloth. wool and wool mixtures, they may become matted and shrink, unless they were professionally wet cleaned. –... -
Page 11: Turn On The Dryer
1. Turn on the dryer 2. Load the laundry ^ Open the gas or steam valve (on site). ^ Open the drum door. ^ Turn on the power main (on site). ^ Load the laundry loosely into the drum. ^ Press the l "On" button to turn the dryer on. Check that there are no foreign objects in the drum, e.g. -
Page 12: Select A Program
4. Select [ "Blockplus" 3. Select a program (if desired) The dryer uses an electronic sensor system which monitors the residual moisture in the (Not available for standard programs) laundry and a timer for extra safety. ^ Confirm the selected program by pressing Once the required level of dryness has been the jog shuttle. -
Page 13: Adjust The Program (If Desired)
5. Adjust the program (if desired) Residual moisture To change program settings before starting In 1 % steps from -4 to 40 %. the program: ^ Turn the jog shuttle to "Residual moisture" ^ Confirm the selected program by pressing (0 %) and press to confirm the selection. -
Page 14: Select Delay Start (If Desired)
6. Select Delay Start (if desired) The program will start at the selected time. Use the m "Delay start" button to start a Hot Wash / Cottons dry 22.0 lb program at a later time. Drying 2:07pm -2.13.2006 Start: 2:10pm-2.13.2006 Setting the delay start ^ Select a program. -
Page 15: Start A Program
7. Start a program 8. End of program ^ Press the h "Start" button to begin the Hot Wash / Cottons dry program.. Program end Anti-crease Finish at 12:35 The program end is shown in the display and the buzzer sounds. If the laundry is not removed from the machine at the end of the program an anti-crease cycle will automatically start. -
Page 16: Extra Features
Extra features Add or remove laundry during a Skip or repeat program sequences program Sequences of a program in progress can be skipped or repeated. The drum door can be opened during a program to add or remove laundry. ^ Press the f "End" button to stop the ^ Open the door. -
Page 17: Program Stop
Extra features K Information Program stop ^ Press the f "End" button to stop the ^ Press the K "Information" button during the program. program to see program information. Examples: Hot Wash / Cottons dry Program stop Hot Wash / Cottons dry Delay start: 10.7.2003 ü... -
Page 18: Peak Load Cut-Off (Optional)
The outlet for the module is on the back of Hot Wash / Cottons dry the machine. Hot Wash / Cottons moist This requires a special Editor Program which is available from the Miele Professional ^ Press the FC function button. Department. Settings Back <-... -
Page 19: Program Guide
Multilayered cotton and linen (Normal+) items which are not completely dry when using "Hot wash / Cottons dry". PT 7251 10 kg PT 7331 13 kg 2 Hot Wash / Cottons dry 0% Single and multilayered cotton PT 7401 16 kg... -
Page 20: Chip Card Use / Coin Mechanism
If the card is not suitable for this type of machine Card operation Card programs are only applicable for machine type PT 7251. ^ Insert a card suitable for this machine type. Drying using the coin mechanism C 4060 / C 4065 / C 4070 Follow the instructions strictly or the money / token will be lost. -
Page 21: Cleaning And Care
Cleaning and Care Cleaning the lint filter Dryer Before cleaning, disconnect the machine Clean the lint filter at least once a day from the power supply via the power main and when the "Clean lint filter" display switch. Shut of the gas supply at the gas shows. - Page 22 Cleaning and Care Check and clean once a year – Heat coils and heat duct (for electric heated dryers), burner and the burner compartment (for gas heated dryers), – The complete dryer interior – The impeller of the exhaust vent –...
-
Page 23: Frequently Asked Questions
Frequently asked questions Fault messages After turning the machine on at the mains or if the program list was selected the control carries out a system analysis. All modules Repairs to electrical, gas or steam and their sensors, data from the operating appliances should only be carried out by system, drying programs and languages are a Miele authorized technician in... - Page 24 Frequently asked questions Pressure sensor fault § Call Technical Service if restart w/o success. ^ Call Technical Service, if restart is not If the display remains off, the dryer has no power. successful. ^ Check the plug, the main switch and the Gas system fault fuses on-site.
-
Page 25: After Sales Service
After sales service ^ In the event of a fault which you cannot correct yourself, please contact Technical Service. ^ When contacting Technical Service please quote the type and serial number (Fabr.-Nr.) and part number (M.-Nr.) of the machine. These can be found on the data plate on top of the door, or on the back panel of the machine. - Page 27 Installation instructions...
-
Page 28: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Installation and Repair The exhaust must not be led into a chimney used by another gas, coal or oil Any installation, service or repair work is heated appliance. It must not be connected to be done by a Miele Service to any gas vent, chimney, wall, ceiling, or Technician. - Page 29 IMPORTANT SAFETY INSTRUCTIONS The dryer must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of ½ psi (3.45 kPa). The dryer must be isolated from the gas supply piping system by closing the equipment shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less...
-
Page 30: Installation Instructions
Installation Instructions Leveling the machine The dryer must be installed and serviced by Miele's Technical Service Department. The dryer must not be transported without the transport pallet. Do not install the machine in rooms where temperatures below freezing may occur. Use flexible metal pipe or rigid metal pipe for venting. - Page 31 ^ Only operate the dryer if it is connected to The electrical equipment for the dryers proper venting ductwork and there is PT 7251, 7331, 7401, 7501 and 7801 sufficient air ventilation. For more meets the standards UL 2158 and information see the installation diagram UL 1240.
-
Page 32: Guide To The Data Plate Symbols
Guide to the data plate symbols 1 Machine type Noise level 2 Serial number PT 7251 68 dB 3 Voltage / Frequency PT 7331 67 dB 4 Mains fuse PT 7401 72 dB 5 Motor PT 7501 72 dB 6 Plate diameter/ Number of disks *... -
Page 33: Help To Protect The Environment
Help to protect the environment Disposal of the packing materials Disposal of an old appliance The cardboard box and packing materials Old appliances may contain materials that protect the appliance during shipping. They can be recycled. Please contact your local are environmentally friendly for disposal and recycling authority about the possibility of can be recycled. -
Page 34: Quick Guide
Quick Guide 1. Sort the laundry Not all fabrics are suitable for drying in a tumble dryer. Pay attention to the manufacturer’s instructions on the wash care label. q = Dry at normal temperature r = Dry at low temperature s = Do not tumble dry ^ Sort the laundry by fabric and color 2. - Page 36 All rights reserved / 2509 06 578 551 / 00...
