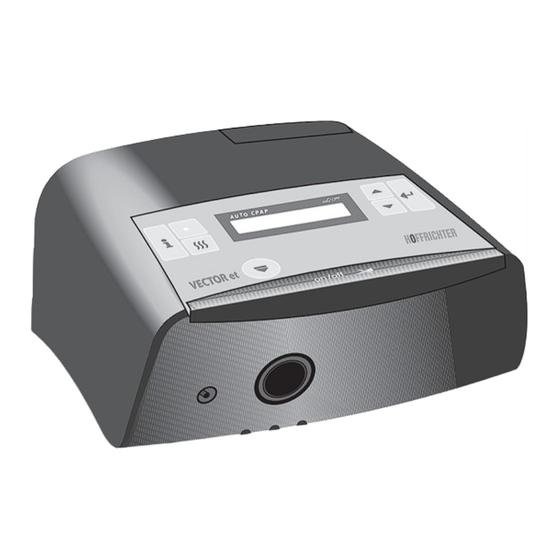

Hoffrichter VECTOR et AUTO CPAP User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HOFFRICHTER
VECTOR
et
AUTO CPAP
User´s Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VECTOR et AUTO CPAP and is the answer not in the manual?

Questions and answers

Related Manuals for Hoffrichter VECTOR et AUTO CPAP

Summary of Contents for Hoffrichter VECTOR et AUTO CPAP

  • Page 1 HOFFRICHTER VECTOR AUTO CPAP User´s Manual...
  • Page 2 SERIAL NUMBER HOFFRICHTER GmbH delivers all its systems with a serial number in order to ensure traceability. The serial number is indicated on the type label on the rear of the system. Please always specify the serial number in inquiries and complaints.

  • Page 3: Table Of Contents

    CONTENTS Legend of Symbols Safety Instructions Intended Use Contraindications Technical Description Notes prior to first Use Components of the Device Accessories Use of the Device Use of Oxygen Cleaning and Change of the Filter Alarm Funktions Funktions of the Device Troubleshooting Display Messages Maintenance...

  • Page 4: Legend Of Symbols

    LEGEND OF SYMBOLS Observe the accompanying documentation Applied part type BF Electric safety class II (with protective insulation) Observe the Operating Instructions Manufacturer CE Declaration of Conformity Do not dispose of the device with normal domestic waste. For information on the proper disposal of the device, please contact your responsible customer service.

  • Page 5: Safety Instructions

    POWER SUPPLY device. VECTOR et Auto CPAP VECTOR et Auto CPAP has an external switched • the device is used in a way that is...
  • Page 6 In order to prevent potential hazards, please fol- • Immediately see your physician if, while using low the instructions below: the device, you develop one or more of the following symptoms: dryness of the mucous • Exclusively use the device for your own membranes in nose and throat, frontal sinus therapy, which must have been prescribed by complaints, earache, a running nose,...
  • Page 7 STANDBY-MODE To maintain electrical safety, please observe the following instructions: The device is in the standby mode as long as the • Do not put the device into operation if its turbine is turned off. The standby mode is indicated housing and/or cables are damaged.

  • Page 8: Intended Use

    INTENDED USE VECTOR et Auto CPAP is intended for treating obstructive sleep apnea in patients with a weight of 30 kg and higher. The device generates a continuous positive airway pressure in order to keep the upper respiratory tract unobstructed.

  • Page 9: Contraindications

    CONTRAINDICATIONS Respiratory therapy may be contraindicated in patients with the following preexisting diseases: • Bullous lung diseases • Pneumothorax • Very low blood pressure • Air accumulation after open craniocerebral trauma or other head injuries In case of an inflammation of the paranasal sinuses or the middle ear, it might be indicated to stop the therapy.

  • Page 10: Technical Description

    TECHNICAL DESCRIPTION • Increase of pressure for obstructive events VECTOR et Auto CPAP is a therapy device for • Decrease of pressure for central events and treating obstructive sleep apnea. Within a certain normal respiration pressure range the device automatically controls...
  • Page 11 comfort functions include a soft start ramp, the automatic start-stop function and the adjustable display brightness. While passing through the device, the air is heated a little, so that it has a higher water absorbency. When indoor air is dry in the heating period, the mucous membranes in mouth and nose may become particularly dry.

  • Page 12: Notes Prior To First Use

    NOTES PRIOR TO FIRST USE Please strictly observe the following setup instructions: Never turn the device on if you kept it in a very cold environment. Wait for approx. 1 hour until its • Do not place the device in the vicinity of a temperature compensation is completed.

  • Page 13: Components Of The Device

    COMPONENTS OF THE DEVICE FRONT VIEW Program keys Filter cassette Display Heater LED Info key Heater key Release button Measuring tube connection Air outlet Contactors for humidifier Control key (ON/OFF button) VECTOR et Auto CPAP...
  • Page 14 REAR VIEW Power connection RS232 interface Type identification plate VECTOR et Auto CPAP...

  • Page 15: Accessories

    ACCESSORIES Carrier bag Air Filter Cassette Car Cabel Power Supply Unit Power cord Measuring Tube Stoppers Breathing Mask There are various mask systems available Therapy Tube y Tube Exhalation valve (Length 1,80 m) ,80 m) VECTOR et Auto CPAP...
  • Page 16 SCOPE OF DELIVERY OPTIONAL ACCESSORIES Art.-No.: Art.-No.: VECTOR et Auto CPAP 0000 2046 AquaDROP et 0000 2015 User´s manual 5000 0037 Car cabel 0000 9212 Power supply 0000 2020 12 V to 24 V converter 0000 7133 Power supply cable...

  • Page 17: Use Of The Device

    USE OF THE DEVICE 1. After having set up the device properly, connect will then slowly increase the pressure automati- the power supply unit to the device and, using cally to the prescribed value, allowing you to fall the supplied power cord, to a grounded outlet. asleep at a lower pressure.

  • Page 18: Use Of Oxygen

    USE OF OXYGEN ATTENTION! Oxygen promotes combustion processes. If you also have to inhale oxygen during your CPAP For that reason, please observe the valid fire therapy, please be absolutely sure to follow the protection regulations for the use of oxygen. instructions from the manufacturer or the dealer Keep oxygen fittings free from fat, do not smoke, delivering the oxygen to you.

  • Page 19: Cleaning And Change Of The Filter

    Patient menu (page 25). CHANGE OF THE FILTER NOTE: If the filter is polluted or the display shows the mes- Never operate the device without filter cassette. HOFFRICHTER sage “change filter” the filter cassette must be Only and exclusively use original filter changed.
  • Page 20 CLEANING THE DEVICE For reasons of hygiene the device must be cleaned on a weekly basis: 1. Disconnect the power plug 2. Wipe the device with a cloth slightly moistened with soapy water. Then use a dry cloth to wipe the device dry You do not have to disinfect the device or parts of the device chemically or thermally.

  • Page 21: Alarm Funktions

    ALARM FUNCTIONS MASK ALARM POWER FAILURE This alarm function is activated only if the automatic function is turned off. If the mask has slipped off If a power failure at night would go unnoticed as a your face or if the tubing is pulled off the device, result the patient would breathe used air from the the device is not turned off automatically, but emits therapy tubing all night.
  • Page 22 PRESSURE ALARM If during the therapy a hardware error occurs or the pressure becomes too high (e.g. due to a bent measuring tube) the device will generate an alarm sound and turn off the turbine. The alarm is turned off by pushing the operating button and the therapy can be continued after solving the error.

  • Page 23: Funktions Of The Device

    FUNCTIONS OF THE DEVICE The device has three different menus: You can program the functions of the device with the following three keys: 1. Info Menu: In this menu the set parameters can be = enter key displayed. = programming key = programming key 2.
  • Page 24 3. Ramp The value of pressure increase and pressure Shows the remaining time of the soft start decrease depends on the value of the breath ramp flow, the set FLEX levels and the set therapy pressure. The three FLEX levels (1-3) are for AUTO CPAP individual adjustment to the patients require- ments:...
  • Page 25 PATIENT MENU After leaving the menu the alarm clock can be activated and deactivated with the help of the Press and hold the enter key (at least 1 second) to buttons. Press to activate the move to the programming mode. The Patient menu alarm function.
  • Page 26 To reset the filter counter, go to the Patient In particular if you are not yet used to the menu (press the button for approx. 1 respiration therapy the soft start can help you second), then select »Reset filter« with the get accustomed to the device and fall asleep buttons .
  • Page 27 4. Mask test To set the mask test, first go to the Patient This parameter determines the time when the menu (press the button for approx. 1 device performs a mask test. Put on the mask second), then select »Mask test« with the and start the device.
  • Page 28 5. Automatic mode If you want to end the therapy simply take off This parameter determines if the device starts the mask. After 5 seconds the device will the therapy automatically as soon as you put switch off automatically. on the mask. In the automatic mode, the device is turned off if the mask or the tubing slip off unnoticed AUTO CPAP...
  • Page 29 6. Brightness 7. Date In this menu item you can set the brightness of Use this menu item to set the date. the display. AUTO CPAP AUTO CPAP To do so go to the Patient menu (hold down To do so go to the Patient menu (hold down button for approx.
  • Page 30 CLINIC MENU 8. Time Use this menu item to set the time. In addition to the parameters in the Patient menu, AUTO CPAP in the Clinic menu parameters relevant for the therapy can be set. This menu is used only by health and service professionals.
  • Page 31 2. P-Unit 3.2 Filter VECTOR et Auto CPAP can show the pres The counter indicates the operating hours of sure in the pressure units hectopascal (hPa), the filter since the last reset. millibar (mbar), and und centimeters of water AUTO CPAP...
  • Page 32 4. Mode After entering the last digit of the PIN you can The device can be operated in the APAP-mode, switch between the CPAP-, APAP- and FLEX- in the CPAP-mode, and in the FLEX-mode. The mode by pressing the button. Leave the FLEXLINE-mode is a comfort mode of the menu once the desired mode is selected.
  • Page 33 6. FLEX-Level The FLEX level is shown only if the FLEX-mode For changing the FLEX level go to the Clinic is activated. menu (hold down the button for approx. 1 second). Then select »FLEX-Level« by pressing AUTO CPAP the buttons .
  • Page 34 7. P-Start (Only if mode APAP is activated) AUTO CPAP You have to activate the Clinic menu first for changing the start pressure. Then select »P-start« by pressing the buttons Press the button. Now the device will prompt you to enter the PIN. By pressing the buttons you can now set the start pressure.
  • Page 35 MENU OVERVIEW Info-Menu Patient-Menu Clinic-Menu Therapy Wake Time Mode Filter Reset Filter Pressure Ramp Ramp FLEX-Level P-Ramp Mask Test P-Start Mode Automatic P-Min Pressure Brightness P-Max FLEX-Level Date Ramp P-Ramp P-Start Time P-Min Mask Test P-Max Automatic Brightness Language P-Unit Turbine Filter Therapy...

  • Page 36: Troubleshooting

    TROUBLESHOOTING Problem Possible cause Remedy Pain in nose, paranasal sinuses Inflammation Stop therapy and contact your or ears physician Unpleasant feeling of too high Unwellness with prescribed If you think there is a mistake, pressure high pressure values consult a physician. Pressure tolerance not comple- Relax, use or alter the soft start tely acquired yet...
  • Page 37 Problem Possible cause Remedy Blower constantly at maximum Measuring tube not connected Check the measuring tube speed or clogged Device leaky Return the device to the service to have it checked Water in the measuring tube Remove the water Therapy pressure not steady Water in the measuring tube Remove the water Device defective...

  • Page 38: Display Messages

    AUTO CPAP DISPLAY MESSAGES The sections below describe the most important display messages. All further messages will be There will be 1 min and 18 sec left until the alarm clear from their context. clock will waken you again. AUTO CPAP AUTO CPAP You have 45 sec left for seating the mask properly.
  • Page 39 AUTO CPAP AUTO CPAP The therapy pressure is too high and the turbine The PIN you have entered is wrong. Please enter switches off. the correct PIN. AUTO CPAP AUTO CPAP There was an attempt to turn off the device manu- There has been an error during the system start ally while the automatic function was activated.

  • Page 40: Maintenance

    MAINTENANCE Proceed according to the following check list: Although all parts of the device have a very long • Visually check whether the device is damaged service life, the device should be maintenanced and/or dirty on its outside from time to time. The device should be maintenanced when the •...

  • Page 41: Technical Data

    TECHNICAL DATA Dimensions (W x D x H) 230 x 212 x 107 mm Weight ca. 2,0 kg Power supply 100 V~... 240 V~, 50...60 Hz, 24 V DC / 2,1 A Pressure range 4 … 20 hPa (mbar) Max. limit pressure in the event of an error <...
  • Page 42 Notes ........... . .
  • Page 43 Notes ........... . .
  • Page 44 MANUFACTURER HOFFRICHTER GmbH Mettenheimer Str. 12/14 D-19061 Schwerin Germany Telefon: +49-385-39925-0 Fax: +49-385-39925-25 www.hoffrichter.de info@hoffrichter.de VECTOR et AUTO-eng-0108-02...
