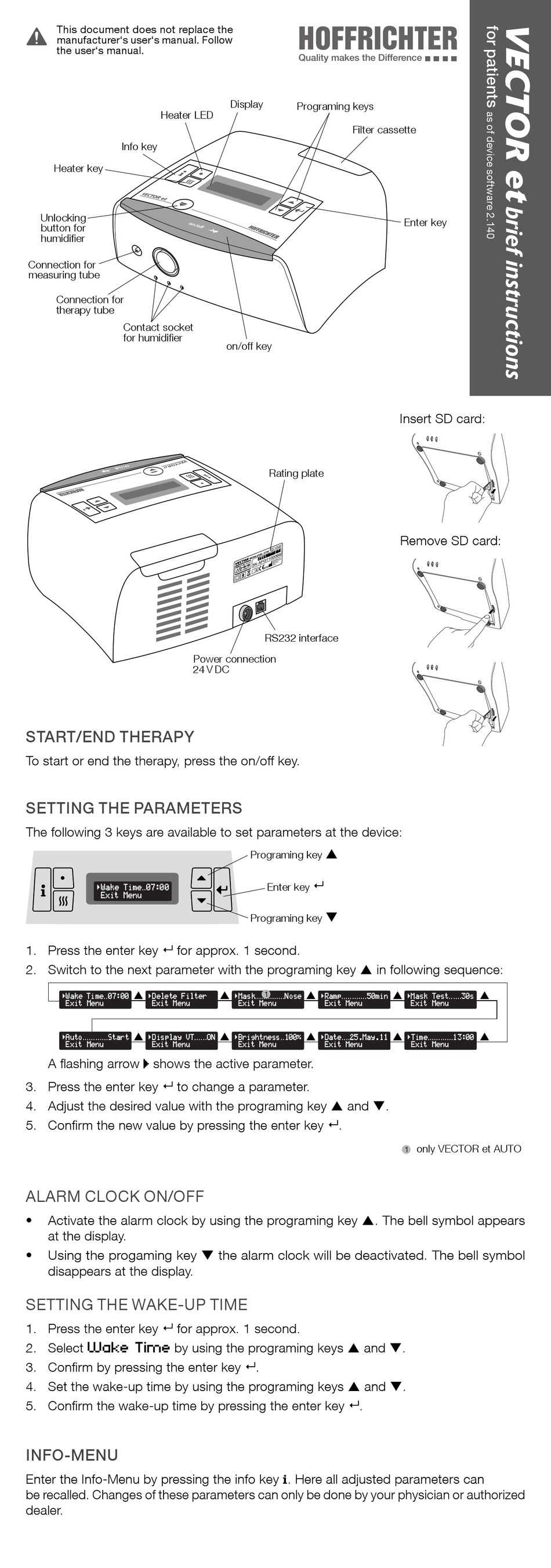

Hoffrichter VECTOR et Brief Instructions

This document does not replace the
manufacturer's user's manual. Follow
the user's manual.
Info key
Heater key
Unlocking
button for
humidifi er
Connection for
measuring tube
Connection for
therapy tube
Contact socket
for humidifi er
START/END THERAPY
To start or end the therapy, press the on/off key.

SETTING THE PARAMETERS

The following 3 keys are available to set parameters at the device:
Q '! % )! MM;BL;;
4%/ !*1
1. Press the enter key  for approx. 1 second.
2. Switch to the next parameter with the programing key  in following sequence:
Q '! % )! MM;BL;;
4%/ !*1
A fl ashing arrow  shows the active parameter.
Q 1/+MMMMMMMMMMMM/ ./
4%/ !*1
3. Press the enter key  to change a parameter.
4. Adjust the desired value with the programing key  and .
5. Confi rm the new value by pressing the enter key  .

ALARM CLOCK ON/OFF

• Activate the alarm clock by using the programing key . The bell symbol appears
at the display.
• Using the progaming key  the alarm clock will be deactivated. The bell symbol
disappears at the display.

SETTING THE WAKE-UP TIME

1. Press the enter key  for approx. 1 second.
2. Select
Wake Time
3. Confi rm by pressing the enter key  .
4. Set the wake-up time by using the programing keys  and .
5. Confi rm the wake-up time by pressing the enter key  .

INFO-MENU

Enter the Info-Menu by pressing the info key i. Here all adjusted parameters can
be recalled. Changes of these parameters can only be done by your physician or authorized
dealer.
Display
Heater LED
on/off key
Power connection
24 V DC
Programing key
Programing key
Q !(!/! %(/!. Q 0' MMMMMMMMMMMMMM+0!
4%/ !*1 4%/ !*1
Q %0,( 5  MMMMMM Q .%#$/*!00MM<;;N
4%/ !*1 4%/ !*1
by using the programing keys  and .
Quality makes the Difference
Programing keys
Filter cassette
Rating plate
RS232 interface


Enter key

Q ), MMMMMMMMMMMM@;)%*
4%/ !*1
Q /! MMMM=@ 5 <<
4%/ !*1
Enter key
Insert SD card:
Remove SD card:
Q 0' !0/MMMMMM>;0
4%/ !*1
Q%)! MMMMMMMMMMMM<>L;;
4%/ !*1
only VECTOR et AUTO
