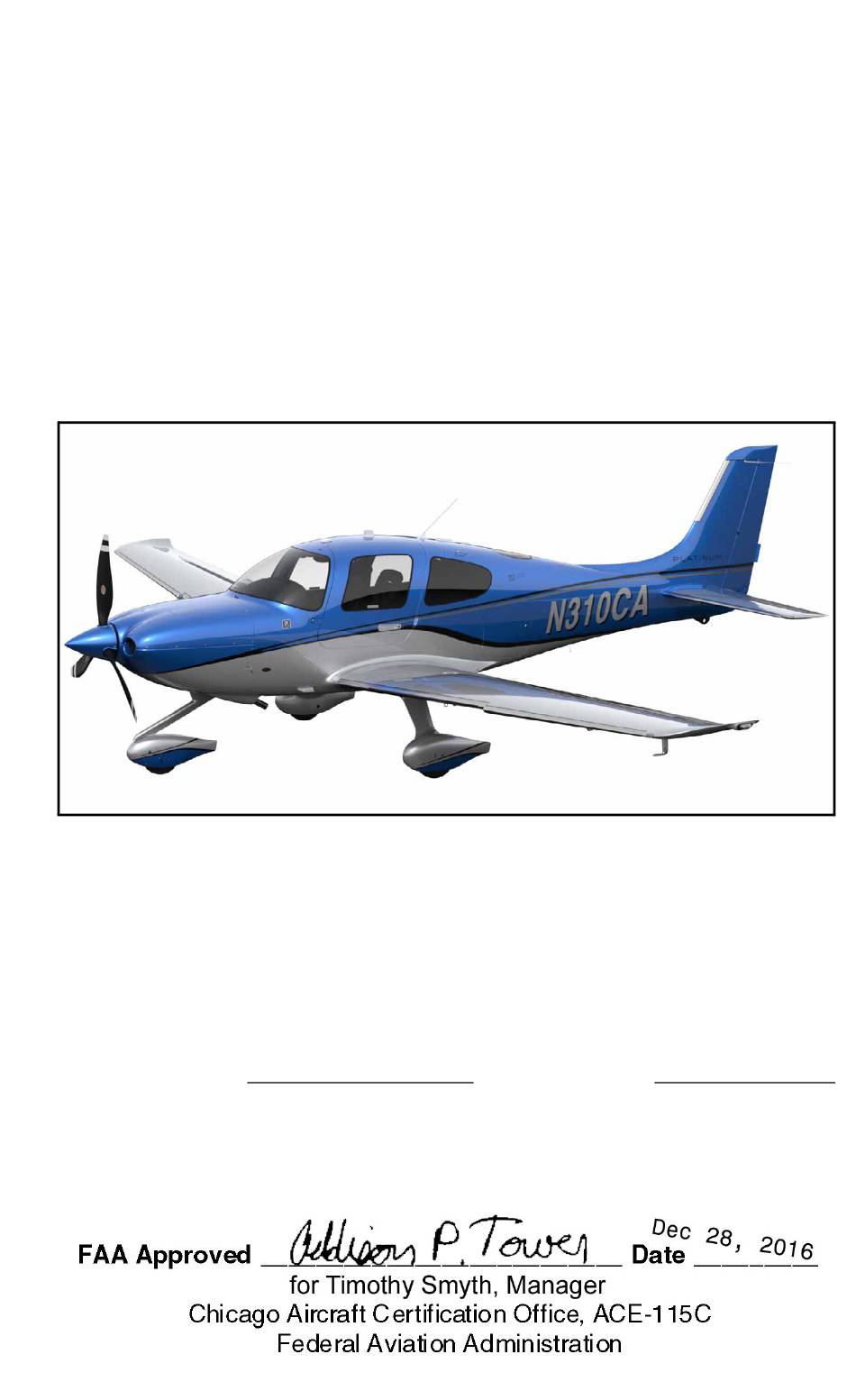

PILOT'S OPERATING HANDBOOK
AND FAA APPROVED
AIRPLANE FLIGHT MANUAL
for the
CIRRUS SR22
A i r c r a f t S e r i a l s S R 2 2 - 4 4 3 3 & S u b s e q u e n t w i t h
+
C i r r u s P e r s p e c t i v e
A v i o n i c s S y s t e m
FAA Approved in Normal Category based on FAR 23. This document must be carried in
the airplane at all times and be kept within the reach of the pilot during all flight
operations.
THIS HANDBOOK INCLUDES THE MATERIAL REQUIRED TO BE FURNISHED TO
THE PILOT BY FAR PART 23 AND ADDITIONAL INFORMATION PROVIDED BY
CIRRUS DESIGN AND CONSTITUTES THE FAA APPROVED AIRPLANE FLIGHT
MANUAL.
Model - Serial Num.:
Registration Num.:
P/N 13772-006
CoverPage-i
Original Issue: December 28, 2016
