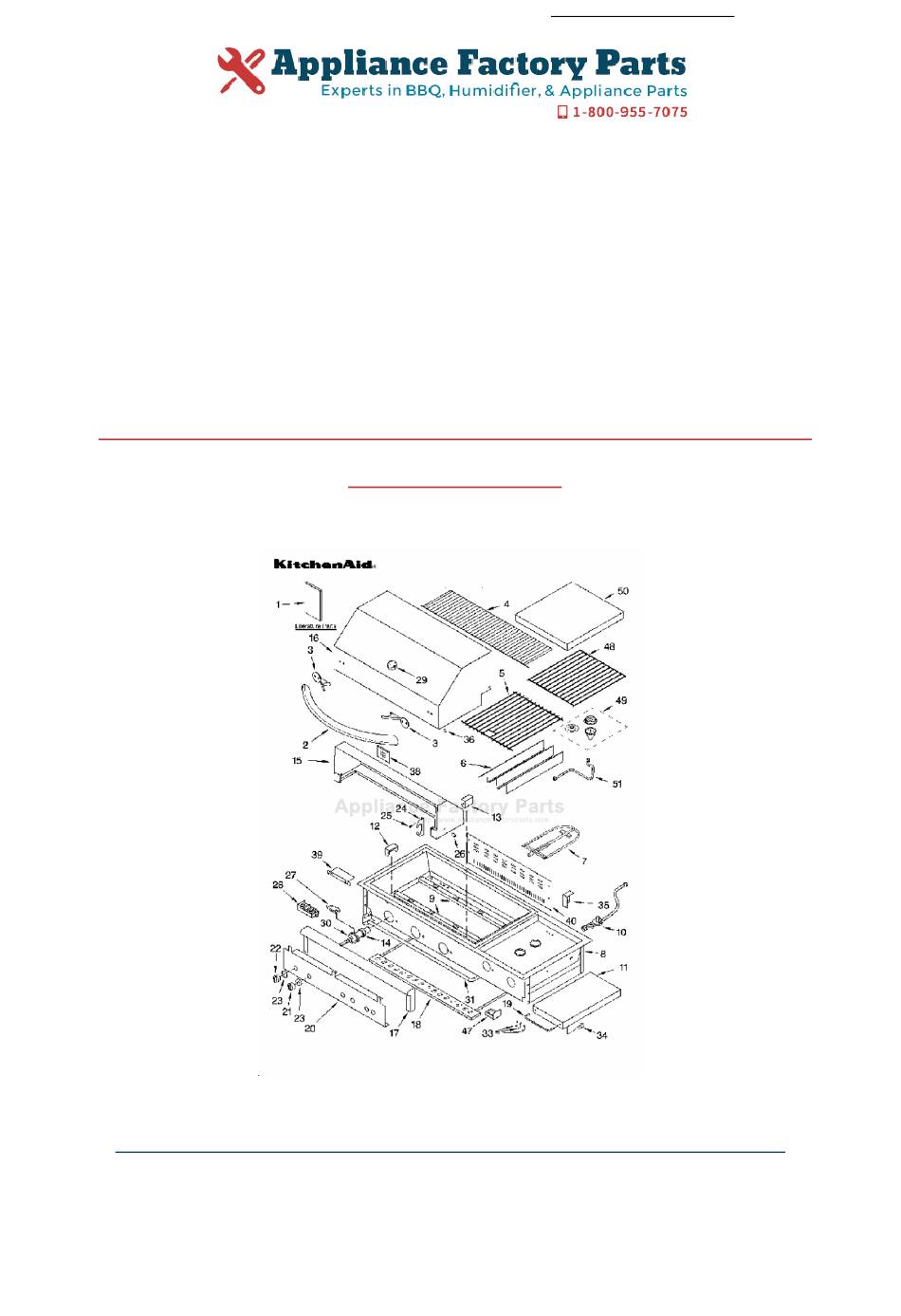

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. KITCHENAID KFRG383SSS0 Owner's Manual Shop genuine replacement parts for KITCHENAID KFRG383SSS0 Find Your KITCHENAID Grill Parts - Select From 200 Models -------- Manual continues below --------...
-
Page 2: Table Of Contents

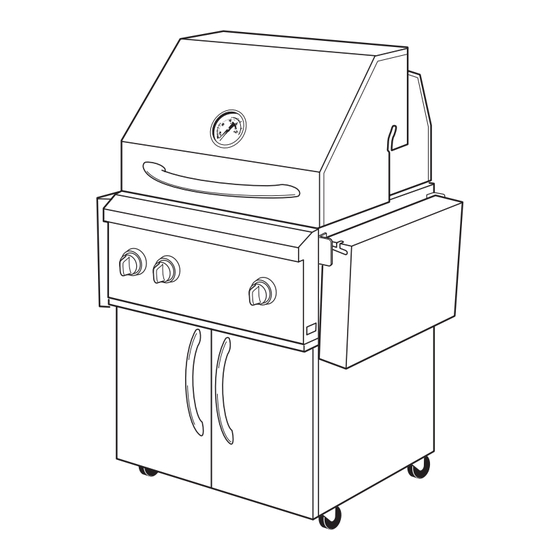

INSTALLATION INSTRUCTIONS AND USE AND CARE GUIDE 27” (68.6 CM) AND 36” (91.4 CM) ARCHITECT SERIES OUTDOOR GRILLS (PORTABLE AND BUILT-IN — NON-COMBUSTIBLE CONSTRUCTION) 27” (68.6 cm) Built-In Outdoor 27” (68.6 cm) Grill with Portable Outdoor rotisserie shown Grill without rotisserie shown Models KBGN274SSS... -
Page 3: Outdoor Grill Safety
OUTDOOR GRILL SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. - Page 4 IMPORTANT SAFETY INSTRUCTIONS 1. Do not install portable or built-in outdoor grills in or on a 11. The L.P. gas supply cylinder to be used must be: recreational vehicle, portable trailer, boat or in any other • constructed and marked in accordance with the moving installation.
-
Page 5: Installation Requirements
If the following information is not followed exactly, a fi re INSTALLATION REQUIREMENTS causing death or serious injury may occur. • Do not store a spare LP-gas cylinder under or near this grill. Tools and Parts • Never fi ll the cylinder beyond 80 percent full. Gather the required tools and parts before starting installation. -
Page 6: Location Requirements
Rotisserie Location Requirements If your model is equipped with a rotisserie, 6” (15.2 cm) minimum clearance on each end is needed for the motor and skewer. WARNING A grounded, 3-prong outlet located to the left of the grill is required. (See “Electrical Requirements” section.) Product Dimensions Portable and built-in non-combustible construction models... -
Page 7: Built-In Installation Dimensions
Electrical Requirements Built-In Installation Dimensions Built-in models - rotisserie and grill light (non-combustible enclosure) WARNING WARNING Electrical Shock Hazard Fire Hazard Plug into a grounded 3 prong outlet. Do not install this grill on or near combustible materials. Doing so can result in death or fire. Do not remove ground prong. -
Page 8: Gas Supply Requirements
(610 m), ratings are reduced at a rate of 4% for each 1,000 feet (305 m) above sea level. Orifi ce conversion is required. Contact KitchenAid Assistance Center. • Refer to the model/serial rating plate for information on the type of gas that can be used. -
Page 9: Built-In Outdoor Grills
Built-In Outdoor Grills INSTALLATION INSTRUCTIONS (non-combustible construction) Portable Outdoor Grill Installation Natural Gas: Built-in grill models are equipped for use with Natural gas. They are design-certifi ed by CSA International for L.P. (propane or Assemble Cooking Area butane) gases with appropriate conversion. Built-in models are set for natural gas use and have a pressure Portable Architect Series Outdoor Grill... - Page 10 For all portable outdoor grills: Make gas connections 1. Lift off grill grates and set aside. 2. Remove sear plates and set aside. WARNING sear plate Explosion Hazard Use a new CSA International approved “outdoor” gas supply line. Securely tighten all gas connections. 3.
-
Page 11: If Converted To Natural Gas
If Converted to Natural Gas: 1. Make gas connections. A combination of pipe fi ttings must be used to connect the grill WARNING to the existing gas line. • If local codes permit, use an outdoor fl exible stainless steel tubing gas connector, design-certifi... -
Page 12: Built-In Outdoor Grill Installation
1. Place grill into outdoor enclosure, but leave enough room in Built-In Outdoor Grill Installation back to connect to gas supply. (non-combustible construction) WARNING Built-In Architect Series Outdoor Grill Make gas connections WARNING Explosion Hazard Use a new CSA International approved “outdoor” gas supply line. - Page 13 4. Test all connections by brushing on an approved noncorrosive 1. This built-in outdoor grill comes with a power transformer plug leak-detection solution. Bubbles will show a leak. Correct any assembly for the grill light. Plug in the single-prong plug in the leak found.
-
Page 14: Check And Adjust The Burners
3. Test all connections by brushing on an approved noncorrosive Low fl ame adjustment: leak-detection solution. Bubbles will show a leak. Correct any leak found. If fl ame goes out on the “LO” setting, the low fl ame setting must 4. -
Page 15: Outdoor Grill Use
If burner does not light immediately, turn the burner knob to “OFF” Slowly open the cylinder valve; do not “snap” open. and wait 5 minutes before relighting. If any burners do not light after attempting to manually light them, contact the KitchenAid Customer Experience Center. -
Page 16: Using The Side Burner
Failure to follow these instructions can result in death, If any burners do not light after attempting to manually light them, fire, or electrical shock. contact the KitchenAid Customer Experience Center. 8. Plug three-prong rotisserie plug into a grounded three prong outlet. -
Page 17: Outdoor Grilling Tips
To avoid product damage when not using the rotisserie, remove OUTDOOR GRILLING TIPS motor and store indoors. Remove spit rod and forks. Store out of reach of children. WARNING Lighting the rotisserie burner Food Poisoning Hazard 1. Do not lean over the grill. Do not let food sit on grill for more than one hour 2. -
Page 18: Cooking Methods
Cooking Methods For optimal use of the Sure Sear system, the following cooking methods are recommended. Direct Heat Cooking by Direct Heat means the food is placed on grill grates directly above lighted burners. Hood position affects total cooking time. Direct Heat sears the food. -
Page 19: Grilling Chart
Grilling Chart Grilling chart • Knobs have High, Medium and Low setting for flame adjustment. • Remove excess fat from edge of chops and steaks. Score remaining fat at 2-inch intervals to prevent curling. • Heat settings indicated are approximate. •... - Page 20 Cooking Method/ Food Time Special Instructions Burner Setting Chicken Breast DIRECT (170°F) For even cooking, pound to 3/4 inch. Boneless Medium 15-22 minutes total Pieces DIRECT breast (170°F) Start bone side down. 2 to 3 lbs. Med-Low to Medium thigh (180°F) 18-25 minutes total Lamb Chops and Steaks...
-
Page 21: Rotisserie Cooking Tips
Rotisserie Cooking Tips Trussing Poultry for the Rotisserie (Rotisserie available on some models) 1. Load the spit rod by sliding one of the forks on the rod, with the prongs facing away from the rod handle. Tighten the screw to WARNING keep it from slipping. -
Page 22: Cleaning
Use vinyl grill cover, available from your local dealer, to protect OUTDOOR GRILL CARE fi nish from weather. See “Accessories” section. Stainless Steel Replacing the ignitor battery IMPORTANT: Do not use soap-fi lled scouring pads, abrasive cleaners, Cooktop Polishing Creme, steel wool, gritty wash cloths If ignitors stop sparking, the battery should be replaced. -
Page 23: Accessories
The full-width drip tray collects grease and food particles that fall • Cleaning should always be followed by rinsing with clean warm through the grill. Remove tray and set on a fl at surface. water. • Wipe the surface completely dry with a soft cloth. •... -
Page 24: Warranty
For one year from the date of purchase, when this grill is operated and maintained according to instructions attached to or furnished with the product, KitchenAid will pay for factory specified parts and repair labor to correct defects in materials or workmanship. -
Page 25: Requesting Assistance Or Service
These parts will fit right and work right, because 1-800-442-1111. they are made to the same exacting specifications used to build every new KitchenAid appliance. For further assistance If you need further assistance, you can write to KitchenAid with any questions or concerns at:...
