Chicago Electric 62757 Owner's Manual & Safety Instructions

Chicago Electric 62757 Owner's Manual & Safety Instructions

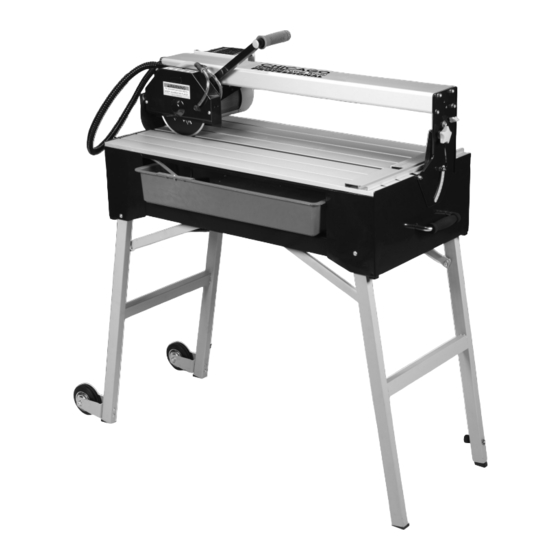

1-1/2 horsepower 7 bridge tile saw with stand

Advertisement

Quick Links

Owner's Manual & Safety Instructions
Owner's Manual & Safety Instructions
Save This Manual
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
Keep this manual and the receipt in a safe and dry place for future reference.
1-1/2 HORSEPOWER
WITH STAND
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
please call 1-888-866-5797 as soon as possible.
©
©
Copyright
Copyright
2015 by Harbor Freight Tools
2015 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
®
. All rights reserved.
. All rights reserved.
Read this material before using this product.
Read this material before using this product.
Failure to do so can result in serious injury.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
SAVE THIS MANUAL.
REV 16l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 62757 and is the answer not in the manual?

Questions and answers

Summary of Contents for Chicago Electric 62757

  • Page 1 Owner’s Manual & Safety Instructions Owner’s Manual & Safety Instructions Save This Manual Save This Manual Keep this manual for the safety warnings and precautions, assembly, Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the operating, inspection, maintenance and cleaning procedures.
  • Page 2: Important Safety Information

    Nonslip footwear is recommended. Wear protective hair covering to contain long hair. ALWAYS USE SAFETY GLASSES. Also use face or dust mask if cutting operation is dusty. Item 62757 For technical questions, please call 1-888-866-5797. Page 2...
  • Page 3 125 VAC 3-Prong Plug and Outlet (for up to 125 VAC and up to 15 A) Item 62757 For technical questions, please call 1-888-866-5797. Page 3...
  • Page 4 Do not disable any guard. Do not operate of the saw toward the operator. saw if any movable guard does not move Item 62757 For technical questions, please call 1-888-866-5797. Page 4...
  • Page 5: Position Of Tile Saw

    State of California to cause cancer, and keep all connections dry and off the ground. birth defects or other reproductive harm. Wash hands Do not touch plug with wet hands. Item 62757 For technical questions, please call 1-888-866-5797. Page 5...
  • Page 6 It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator. Item 62757 For technical questions, please call 1-888-866-5797. Page 6...
  • Page 7: Vibration Safety

    Let the tool do the work. To reduce vibration, maintain the tool as explained in this manual. If any abnormal vibration occurs, stop use immediately. SAVE THESE INSTRUCTIONS. Item 62757 For technical questions, please call 1-888-866-5797. Page 7...
  • Page 8 Figure A Pull out Stand I (119) and Stand II (120), fully extending the Support Brackets (117, 118). With assistance, set the Tile Saw (See Figure A.) upright. (See Figure B.) Item 62757 For technical questions, please call 1-888-866-5797. Page 8...
  • Page 9 Knob (75) through the slot in the Right Rail Stand (111) and into the threaded hole as shown. Repeat for the Left Rail Stand (72) and the other Knob (75). Secure Knobs. Item 62757 For technical questions, please call 1-888-866-5797. Page 9...
  • Page 10: Wheel Assembly

    Figure G Note: Bolts should be inserted from outside, through the leg stand and into the wheel. Washers and Nuts to be placed onto the Bolts from the wheel side. Item 62757 For technical questions, please call 1-888-866-5797. Page 10...
  • Page 11: Tool Set Up

    Water Tray from the Tile Saw and pour out the water. (See Figure K.) After draining the water, rinse Water Tray to remove any silt. Figure J (62) (60) Figure K Item 62757 For technical questions, please call 1-888-866-5797. Page 11...
  • Page 12 (103) Figure L Tile Turn the Power Switch (18) to its “ON” position, and allow the Saw Blade (37) to spin up to full speed. (See Figure M.) Figure N Item 62757 For technical questions, please call 1-888-866-5797. Page 12...
  • Page 13 Angle Scale (110). Then, retighten the two Knobs, and two bolts. (See Figure P.) To cut the tile, follow the same procedure as outlined in the section “To Make A Straight Cut:” on page 12. Item 62757 For technical questions, please call 1-888-866-5797. Page 13...
  • Page 14 Next, remove the Outside Flange (38) and remove the old Saw Blade. (See Figures R and S.) rated at 3550 RPM or higher. (See Figure R.) CAUTION! Never flip over a used Saw Blade. Item 62757 For technical questions, please call 1-888-866-5797. Page 14...
  • Page 15 Once the Saw Blade (37) is installed, reattach the Outside Flange (38) and Nut (39). Fasten the Nut by turning it counterclockwise until snug. Do not overtighten. (See Figure R.) Item 62757 For technical questions, please call 1-888-866-5797. Page 15...
  • Page 16: Cleaning, Maintenance, And Lubrication

    Store the the Filter and Impeller. If necessary, replace the Tile Saw indoors in a dry, frost-free room. Item 62757 For technical questions, please call 1-888-866-5797. Page 16...
  • Page 17: Troubleshooting

    Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Item 62757 For technical questions, please call 1-888-866-5797. Page 17...
  • Page 18: Parts List

    Support Bracket Bolt M6x45 Support Stand I Flat Washer Support Stand Ii Lock Nut Height Adjustable Leg Water Tray Elastic Pin O-Shape Sealing Ring Adjusting Knob Drain Plug Adjusting Plate Item 62757 For technical questions, please call 1-888-866-5797. Page 18...
  • Page 19: Assembly Diagram

    ASSEMBLY DIAGRAM Please Note: Saw Blade (37) is sold separately and not included. Item 62757 For technical questions, please call 1-888-866-5797. Page 19...
  • Page 20 Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance.
