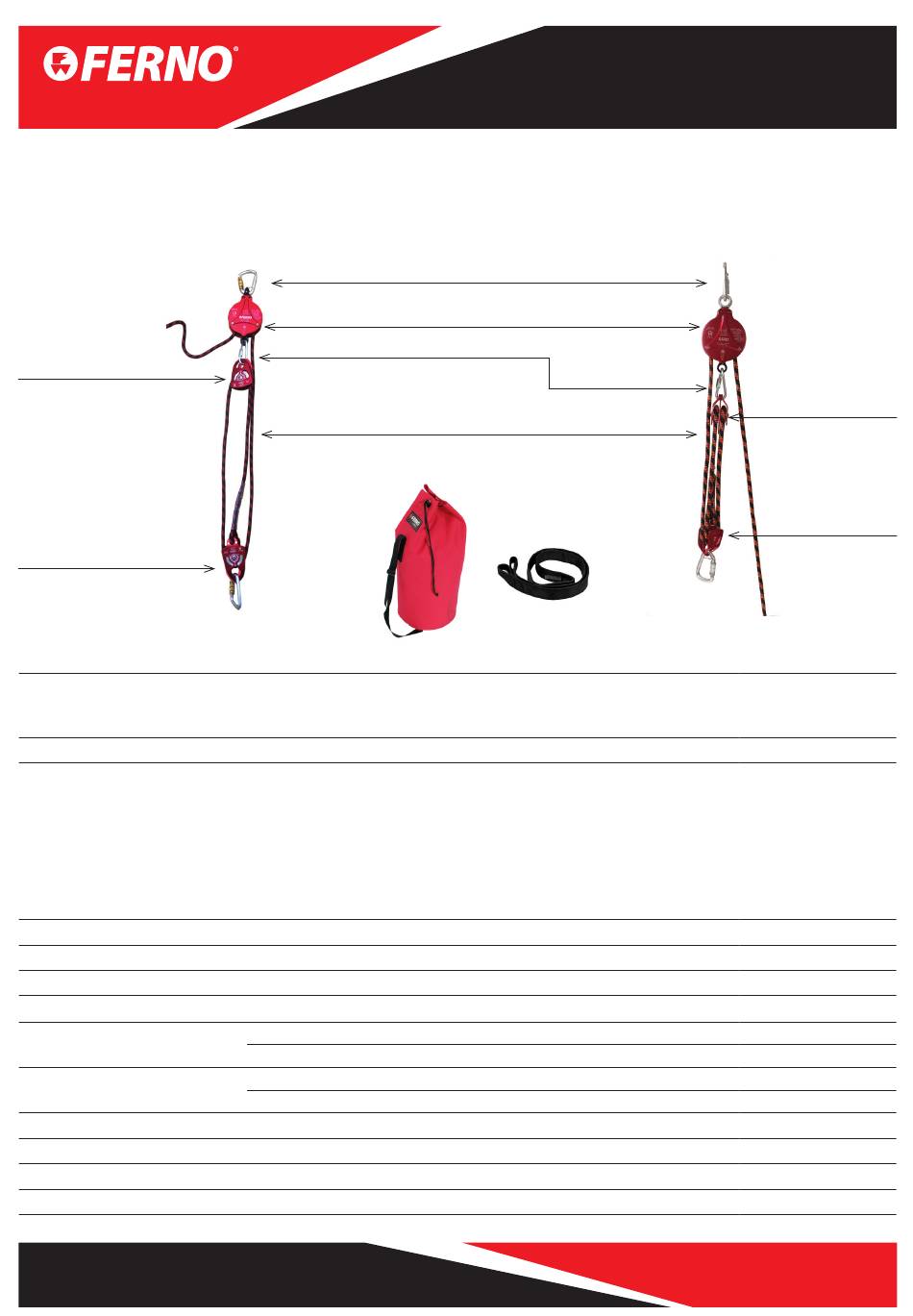

The Ferno R-ALF Rescue Kit is a 3:1 or 5:1 ratio mechanical advantage lift system for work positioning, rescue or load hauling with
a two-way self-locking brake. The 3:1 mechanical advantage lifting capability allows the operator to reduce the manual handling
lift ratio to a third of the load weight or a fifth of the load weight for the 5:1 system. The total length of rope supplied with each
system allows for a 'working length' of approximately 16 m lowering or lifting.
3:1 KIT
VISC RP063A1 Prusik
Minding Pulley Single
VISC RP065A1 Prusik
Minding Pulley Single
Specifications
APPLICATIONS
SYSTEM COMPONENTS
SYSTEM LENGTH
WORKING LOAD LIMIT (WLL)
ROPE BREAKING STRENGTH (MBS)
RATINGS
R-ALF RESCUE HAULER PULLEY
RP063A1 PRUSIK PULLEY
(3:1 System)
RP065A1 PRUSIK PULLEY
(3:1 System)
RP0064A1 PRUSIK PULLEY
(5:1 System)
11 Johnstone Road, Brendale, Qld 4500
T: +61 7 3881 4999 | E: info@ferno.com.au | F: +61 7 3881 1125
(FWE-RRK 3:1/FWE-RRK 5:1)
VCT A595TBBZO Triple Action Karabiner
VISC RP431 R-ALF Rescue Hauler Pulley
VMR LOSTW08 8 mm Steel Maillon Twist
11 mm Kernmantle Rope
Rope Bag
The Ferno R-ALF Rescue Kit is designed for multi-purpose use including confined space entry and
egress, rescue, industrial height safety, work positioning, ascent, controlled descent and as a main or
secondary system
3:1 SYSTEM
•
1 x R-ALF Self Locking Pulley
•
2 x Medium Prusik Minding Pulley (Single)
•
2 x Large Triple-action Steel Karabiner with Captive Bar
•
1 x 8 mm Steel Maillon Twist
•
1 x Round Sling - WLL 400 kg
•
50 m x 11 mm Kernmantle Rope
•
1 x Rope Bag
•
Optional: Dust proof, plastic Stowage Drum with lid
(FWE-CSRD DRUM)
50 m of rope - approximately 16 m of Lift/Drop
Round Sling - 32 kN / Maillon - 32 kN / Karabiners - 50 kN / Pulleys - 40kN
ROPE: 11 mm
WLL: 250 kg / 550 lb
MATERIALS/FINISH: Aluminium/Anodised
ROPE: 11 mm
WHEEL: Aluminium
MATERIALS/FINISH: Aluminium/Anodised
ROPE: 13 mm / 1/2 in MAX
WHEEL: Aluminium
MATERIALS/FINISH: Aluminium/Anodised
ROPE: 13 mm / 1/2 in MAX
WHEEL: Alumium
MATERIALS/FINISH: Aluminium/Anodised
R-ALF RESCUE KIT 3:1 / 5:1
Round Sling
•
1 x R-ALF Self Locking Pulley
•
2 x Medium Prusik Minding Pulley (Double)
•
2 x Large Triple-action Steel Karabiner with Captive Bar
•
1 x 8 mm Steel Maillon Twist
•
1 x Round Sling - WLL 400 kg
•
80 m x 11 mm Kernmantle Rope
•
1 x Rope Bag
•
Optional: Dust proof, plastic Stowage Drum with lid
(FWE-CSRD DRUM)
80 m of rope - approximately 16 m of Lift/Drop
250 kg maximum - 1 person working or 2 persons rescue
2997 kg minimum (29.4kN)
WEIGHT: 1200 g / 43 oz
STANDARDS: CE 0120; ANSI Z359:4:2007
MBS: 50kN / 11,240 lbf
STANDARDS: CE; EN 12278
MBS: 50 kN / 11,240 lbf
STANDARDS: CE; EN 12278
MBS: 50 kN / 11,240 lbf
STANDARDS: CE; EN 12278
Doc ID: 00332-V2_R-ALF-RESCUE-KIT_Instructions
USER INSTRUCTIONS
5:1 KIT
VISC RP064A1 Prusik
Double Pulley
VISC RP064A1 Prusik
Double Pulley
5:1 SYSTEM
WEIGHT: 280 g / 9.9 oz
WEIGHT: 215 g / 7.6 oz
WEIGHT: 500 g / 17.6 oz
www.ferno.com.au
