Ferno CENTREPOINT 2 User Instructions

Australia
HARNESS DESIGNATION:
GENERAL USE:
SUGGESTED APPLICATIONS:
COMPLIANCE
ATTACHMENT POINTS
Ensure you are familiar with all the attachment points on
this harness and their limitations. Each attachment point is
labelled appropriately.
Fall Arrest Attachment Points
1. Rear dorsal D-ring is rated as a fall arrest attachment point
2. front D-ring fall arrest attachment point
3. Front limited free fall attachment point (soft belay ring)
Pole Strap Attachment Points
The large aluminium side attachment points are rated as Pole
Strap attachment points only. The connection points must
be loaded equally with a pole strap as approved by Ferno
Australia. Do not connect to one 'D' ring only.

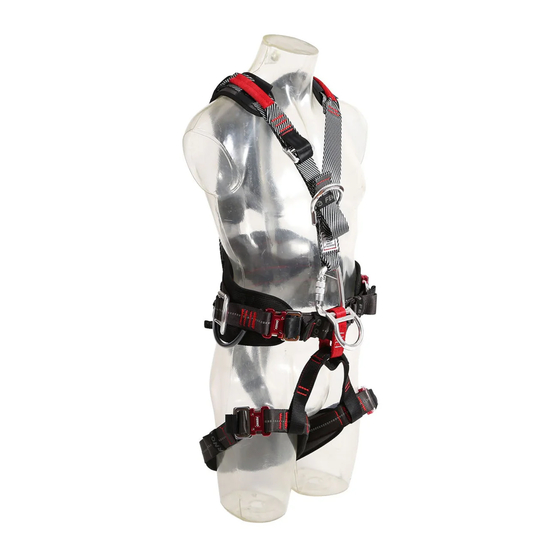

FRONT VIEW OF HARNESS AND FEATURES
Confined
space rescue
retrieval
attachment
point
Reflective
webbing
for higher
visibility
Waist and
Leg Strap
Quick
Connect
Buckles
HEAD OFFICE: 11 Johnstone Road, Brendale, QLD 4500
Toll Free: 1800 804 647 | Tel: +61 7 3881 4999 | Email: sales@ferno.com.au | www.ferno.com.au
(VHI CEN B 2/ VHI CEN 2A/ VHI CEN 2 BS)
FALL ARREST HARNESS
Rope access, Limited free fall, Free fall arrest, Pole strap, Horizontal restraint,
Rope suspension, Confined space rescue
Rescue, Ladder and rope activities, Building maintenance, Stage rigging, Roof work, Rope
Access
Certified to AS/NZS 1891.1:2007
(refer notes on Energy Absorbers)
Confined
space rescue
retrieval
attachment
point
Central front
fall arrest
attachment
point
Triple action
Karabiner
Limited free
fall arrest
attachment
point/Rescue/
Abseil
NextGen Centrepoint2 Instructions: ID# 00194-V1- 03/2013
CENTREPOINT 2 HARNESS
USER INSTRUCTIONS
WARNING
1. A lanyard assembly should be secured to an anchorage
point that is at a level which will result in the minimum
free fall and the least total fall distance consistent with
the wearer's ability to carry out work tasks. The maximum
allowable free fall is no more than 2 m.
2. Energy absorbers that absorb energy by permanent
deformation or destructive action should be discarded if
that process has commenced.
REAR VIEW OF HARNESS AND FEATURES
Padded,
removable
shoulder pad
with reflective
grey material
Pole Strap
Attachment
Point on
either side of
harness
Adjustable
leg risers
Rear Dorsal
"D" fall arrest
attachment
point
Padded
moisture-
wicking back
pad for extra
comfort
Rear Gear/
Equipment
Loops
Padded leg
straps
