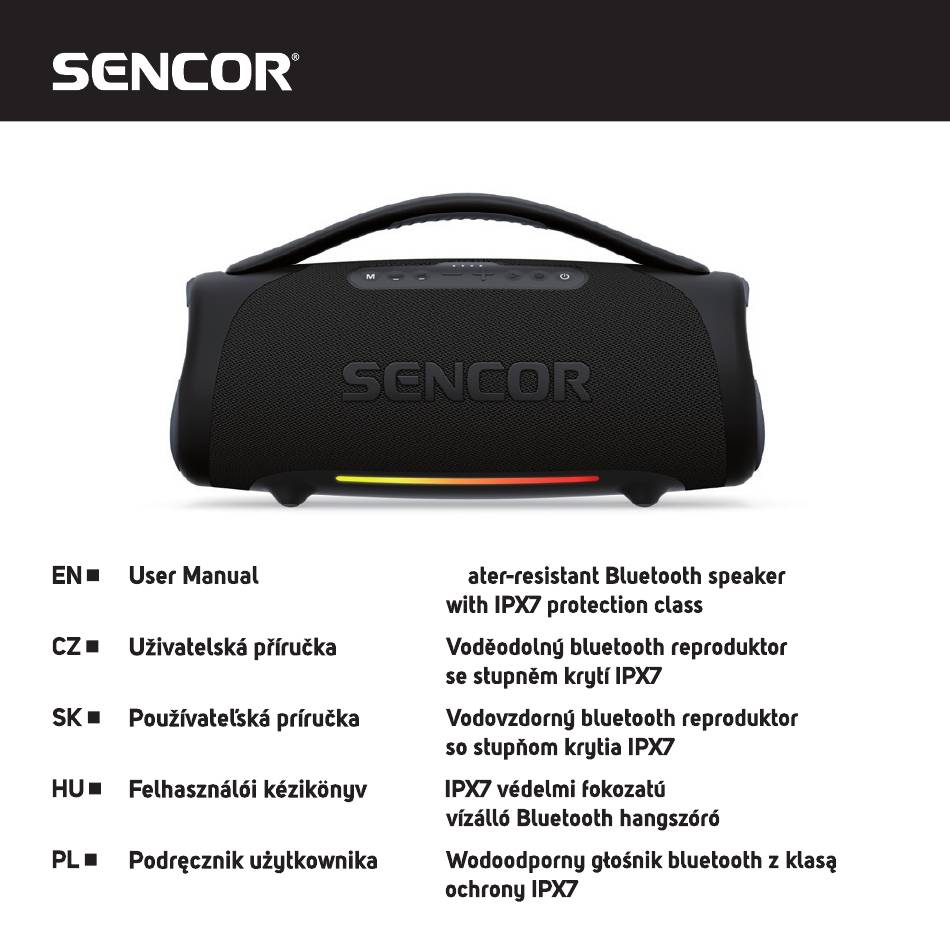

- Page 1 RESONEX MEGA...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS This product has been designed with the utmost safety in mind. However, incorrect use may lead to electric shock or fire. This is why users should observe the following instructions when using this device. This device uses a semiconductor unit and contains no user serviceable parts. Do not disassemble this device, otherwise you are exposed to the risk of electric shock. -
Page 3: Maintenance
A. Power cord or plug is damaged. B. Liquids or other foreign objects have penetrated inside the product. C. If the unit does not work even if it’s being operated according to the instructions, don’t press any buttons other than those described in these instructions. Otherwise, damage to this unit may occur along with a more demanding repair. -
Page 4: Package Contents
PACKAGE CONTENTS BT speaker RESONEX MEGA Power cable User's manual EN - 4... - Page 5 BT SPEAKER DESCRIPTION EN - 5...
- Page 6 TOP SIDE OF THE BT SPEAKER “M” button with LED indicator, change audio source (1x press) “BASS BOOST” button for bass boost (1x press) “TWPM” button to connect multiple BT speakers (1x press) Previous track button (long press), volume down button (1x press) Battery level LED indicator Next track button (long press), volume up button (1x press) “PLAY / PAUSE”...
-
Page 7: Putting Into Operation
PAIRING DEVICES VIA BLUETOOTH Turn on the BT speaker and search for its Bluetooth name “RESONEX MEGA” in the device to be paired, then start the pairing process. If you are requested to enter a pairing code while your device and the BT speaker are pairing, use the code: “0000”. - Page 8 Warning: The TWPM feature is only available in the Bluetooth mode. It is not possible to pair the device with any other type of BT speaker with TWPM function or within re-editions of products with a different name than RESONEX MIDI, RESONEX MAXI, RESONEX MEGA. EN - 8...
-
Page 9: Play/Pause Button
PLAY/PAUSE BUTTON Press the Play/Pause button to start or pause music playback during Bluetooth connection or while a memory media is inserted. VOLUME AND TRACK PLAYBACK CONTROL To control the BT speaker’s volume (+/- buttons), use the buttons on the BT speaker. During music playback, you can press and hold the “+”... - Page 10 AUDIO AUX IN The BT speaker is equipped with a 3.5mm jack. Your device can be connected to a BT speaker using an audio cable. First connect the audio plug to your device and then to the BT speaker’s jack. Please note: before connecting your device and BT speaker, make sure that the output signal from your device is at the minimum level (minimum output volume).
- Page 11 POWER BANK FEATURE The BT speaker can be also used as a Power bank to charge another portable devices. Lift the protective cover of the sockets at the BT speaker’s rear and connect your portable device’s charging cable to the USB-A port. The charging will take place automatically as long as the BT speaker is turned on.
- Page 12 LED charging indicator: LED indicator Battery charge level 0 % – 25 % 25 % – 50 % 50 % – 75 % 75 % – 100 % INGRESSION PROTECTION (IPX7) The unit is resistant against water thus allowing you to listen to your music in bath, shower, on the beach or by the pool.
-
Page 13: Technical Specifications
TECHNICAL SPECIFICATIONS Features: Water-resistant speaker with IPX7 protection class The speaker cover is made of premium fabric Broadcast function with up to 99 devices connected LED speaker lighting and ambient lighting LED volume and battery indication BASS BOOST button Sound: Maximum speaker power 190 W when powered from the mains (Impedance: 4 Ω) Maximum speaker power 130 W when powered by battery (Impedance: 4 Ω) 5 speakers + 2 passive radiators... - Page 14 Other: Built-in rechargeable battery: 22,500 mAh Li-Ion (81 Wh) Playback time up to 28 hours (at 50% volume) Charging: AC ~100–240V, 50/60 Hz Max. charging time 3 hours Accessories: charging cable, user's manual Dimensions: 480 x 259 x 203 mm Weight: 5.8 kg Bluetooth Version...
- Page 15 INSTRUCTIONS AND INFORMATION ON THE DISPOSAL OF PACKAGING MATERIALS Take the packaging to a collection centre for recycling. DISPOSAL OF DISCARDED ELECTRICAL AND ELECTRONIC EQUIPMENT This symbol on the product, accessory or packaging means that the product must not be disposed of in normal household waste. Please dispose of this product in a collection yard designated for the recycling of electrical and electronic equipment.
- Page 16 FAST ČR, a.s. hereby declares that the type of radio equipment RESONEX MEGA complies with the Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following web address: www.sencor.com. Text, design and technical data are subject to change without notice; we reserve the right to make such changes.
- Page 17 Manufacturer: FAST ČR, a.s., U Sanitasu 1621, Říčany 251 01, Czech Republic Visit www.sencor.com for detailed information about authorized service centers. The original version of the instructions is in the Czech language, other language versions are made by the appropriate translation.
