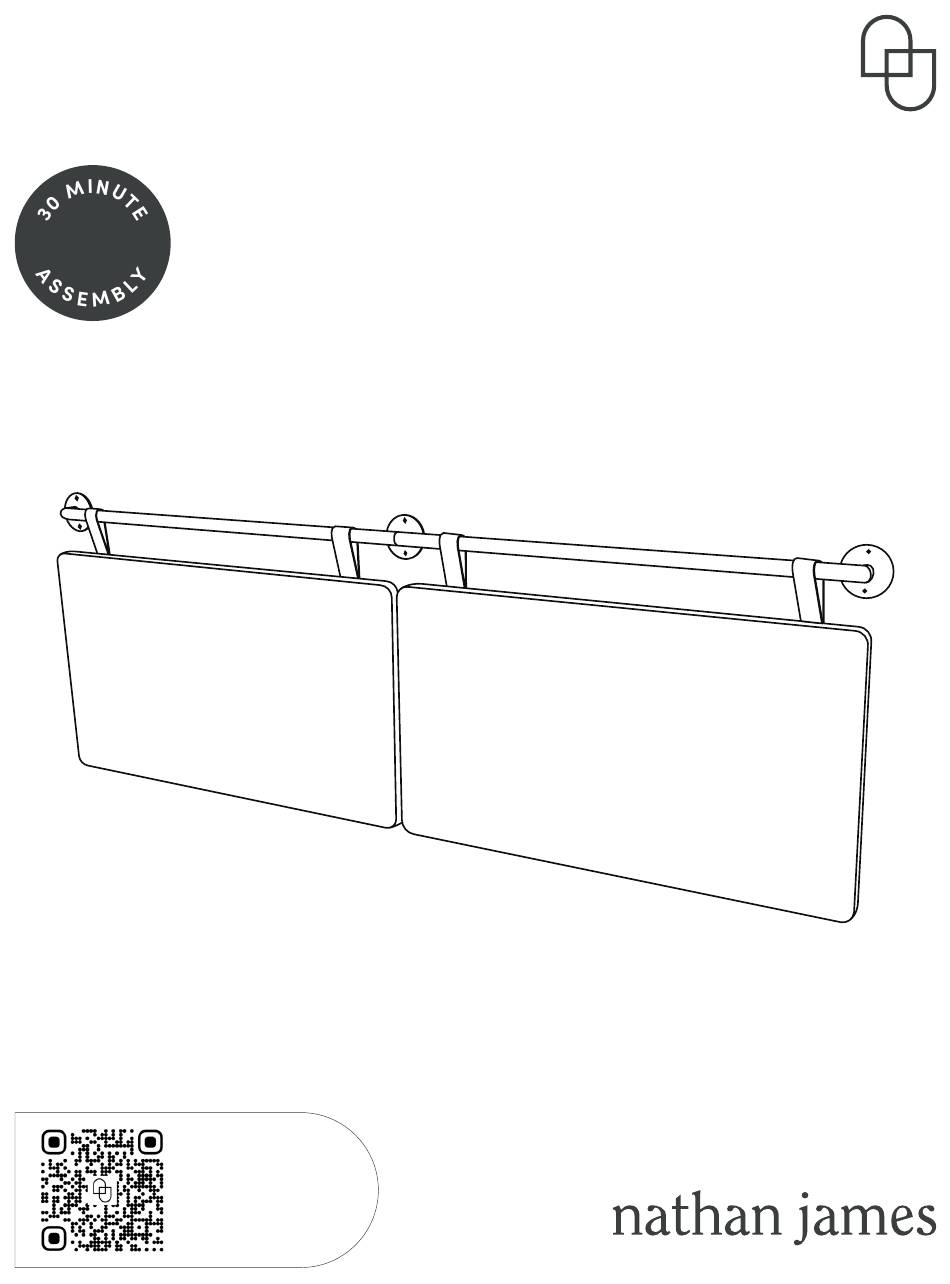

- Page 1 Let’s build the Charlie Boucle Headboard SKU 97101 Scan me! Inspiration Digital Instructions Free Lifetime Warranty 22-0217...
- Page 2 Ok, let’s What’s included get rolling Description Left Metal Rail This should be easy, just follow Right Metal Rail our instructions and you will be back to Netflix in no time. Headboard Estimated time for assembly D Metal Connector 30:00 M4*35 mm Screw Anchors What you need...
- Page 3 The goods IMPORTANT 1. Do not tighten bolts / screws completely until all bolts / screws are lined up and inserted into holes. 2. Do not over tighten screws and bolts to avoid stripping. 3. Please use hand tools to assemble this product. Do not use power tools.
- Page 4 Step 1 Let’s get this thing fired up! Assemble the Left and Right Metal Rails (A)(B) using the Metal Connector (D). Secure with M6*12 mm Bolts (5). Remember to remove the 2 bolts in the Metal Connector (D) before assembling the rail. Please note: Part (A), (D), and (B) need to be on the same level before you secure...
- Page 5 Step 2 Using the Mounting Installation Template Unroll it Unroll paper Mounting Installation Template (7) and remove the adhesive backing. Place it Locate where you would like to mount the headboard and apply Mounting Installation Template (7) to the wall in that location. Make sure the template and holes are level.
- Page 6 Step 2 Cont. Mark it Using the holes in the template and the metal rail as a guide, mark the location of each hole on the wall. These will become your guides as to where to drill the holes for the wall anchors.
- Page 7 Step 3 Install Brackets (8) on the wall. First insert the Anchors (2), then mount the Brackets (E) with the M4*35 mm Screws (1) into the Anchors (2). See the graphic below for hole locations and bracket orientation. Step 4 Attach the Brackets (8) to the back of the Headboards (C) with M4*14 mm Bolts (4).
- Page 8 Step 5 Apply the EVA Pads (6) to the back of the Headboard panels.
- Page 9 Step 6 Mount the panel on the wall by matching the brackets on the back of the panel with the brackets that you just installed on the wall. Now it’s time for the Rail! First, insert the Anchors (2), then mount the Rail with M4*35 mm Screws (1) into the wall anchors.
- Page 10 Step 7 You made it to the last step! We knew you could do it. Now all that’s left to do is to flip the straps over the rail and tuck the end of the straps behind the headboard. Sweet dreams!
