INSTRUCTIONS-PARTS LIST

This manual contains important

warnings and information.

READ AND KEEP FOR REFERENCE.

INSTRUCTIONS

Huskyt 307 Air-Operated

Diaphragm Pump

100 psi (0.7 MPa, 7 bar) Maximum Fluid Working Pressure

100 psi (0.7 MPa, 7 bar) Maximum Air Input Pressure

Model No. 235235, Series F

Polypropylene Pump with Santoprene

diaphragms and with feet

Model No. 235237, Series F

Polypropylene Pump with Santoprene

diaphragms and with base bracket

NOTE: REFER TO INSTRUCTION

MANUAL 308553 (SUPPLIED) FOR

IMPORTANT SAFETY WARNINGS AND

INSTALLATION, OPERATION, AND

SERVICE INSTRUCTIONS.

GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441

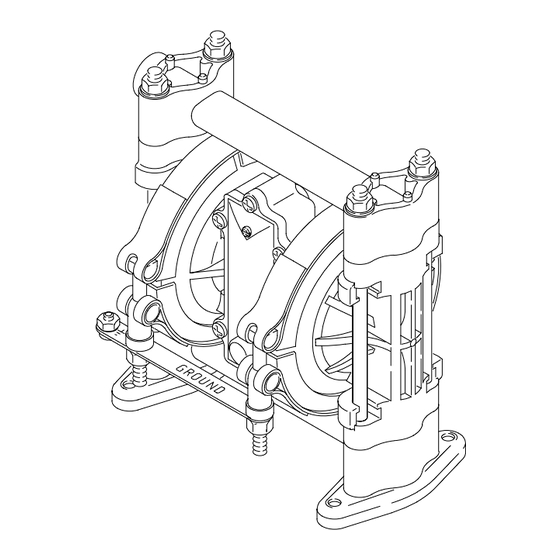

Model No. 235235 shown

Graco Inc. is registered to I.S. EN ISO 9001

308554

First choice when

quality counts.t

Rev. J

04770

Need help?

Do you have a question about the 235235 and is the answer not in the manual?

Page 1 NOTE: REFER TO INSTRUCTION MANUAL 308553 (SUPPLIED) FOR IMPORTANT SAFETY WARNINGS AND INSTALLATION, OPERATION, AND SERVICE INSTRUCTIONS. Model No. 235235 shown 04770 GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 ECOPYRIGHT 1995, GRACO INC. Graco Inc. is registered to I.S. EN ISO 9001...
Page 2 Parts Model No. 235235, Series F Polypropylene pump with Santoprene diaphragms and with feet Model No. 235237, Series F Polypropylene pump with Santoprene diaphragms and with base bracket Ref. Ref. Part No. Description Part No. Description 187705 HOUSING, center; polypropylene 187702 COVER, fluid;...
Page 3 Parts Only included with pump Model No. 235235. Only included with pump Model No. 235237. * Included in Pump Repair Kit D03977, which may be purchased separately. { Included in Air Valve Kit 239952, which may be purchased separately. } Included in Diaphragm Shaft Kit 239016, which may be purchased separately.
Page 4 Graco’s written recommendations. This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or sub- stitution of non-Graco component parts.
