INSTRUCTIONS-PARTS LIST
This manual contains IMPORTANT
WARNINGS and INFORMATION
READ AND RETAIN FOR REFERENCE
DISPLACEMENT PUMP
Model 235706, Series A
3 GPM pump for use with the GM1030 TexSpray Sprayer
1000 psi (70 bar) MAXIMUM WORKING PRESSURE
Model 235965, Series A
2 GPM pump for use with the GM1030 TexSpray Sprayer
1000 psi (70 bar) MAXIMUM WORKING PRESSURE
Table of Contents
. . . . . . . . . . . . . . . . . . . . . . . .
Remove/Install Pump
. . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . .
Parts (Model 235965)
. . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
GRACO INC. P.O. BOX 1441
2
3
4
6
6
8
8
8
MINNEAPOLIS, MN 55440-1441
ECOPYRIGHT 1993, GRACO INC.

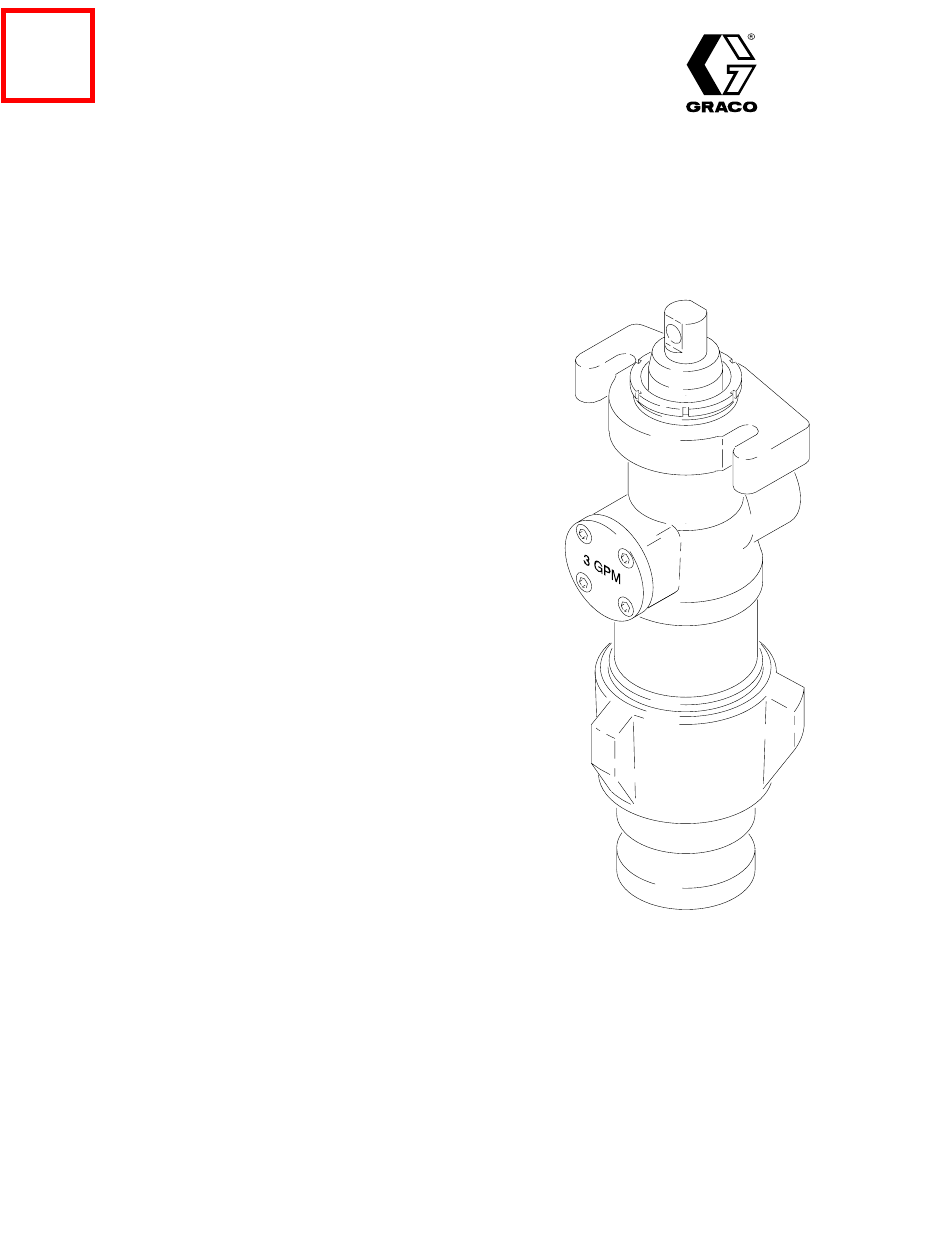

Model 235706 shown
308270
Rev B
01900
Advertisement
Table of Contents
Related Manuals for Graco 235706
Summary of Contents for Graco 235706
- Page 1 This manual contains IMPORTANT WARNINGS and INFORMATION READ AND RETAIN FOR REFERENCE DISPLACEMENT PUMP Model 235706, Series A 3 GPM pump for use with the GM1030 TexSpray Sprayer 1000 psi (70 bar) MAXIMUM WORKING PRESSURE Model 235965, Series A 2 GPM pump for use with the GM1030 TexSpray Sprayer...
- Page 2 Do not use fluids or that end. solvents which are not compatible with the inner tube and cover of the hose. DO NOT expose Graco hoses to tempera- Tighten all fluid connections securely before each use. tures above 180 F (82 C) or below –40...
- Page 3 REMOVING & INSTALLING A DISPLACEMENT PUMP Removal WARNING To reduce the risk of serious injury or property WARNING damage, be sure the retaining spring is firmly To reduce the risk of serious bodily injury, always and completely in the groove of the connecting shut off the engine and disconnect the spark plug link to prevent it from working loose due to vibra- before performing any checks or service.
- Page 4 DISPLACEMENT PUMP REPAIR WARNING 5. Apply blue LoctiteR (supplied in kit) to the piston seat (213) threads and screw the assembly onto To reduce the risk of serious bodily injury, always the rod, hand tight. shut off the engine and disconnect the spark plug before performing any checks or service.
- Page 5 DISPLACEMENT PUMP Grease inside of throat before installing packings Lips of v–packings in throat must face down Grease inside of packings after installing Torque 50–70 in–lb (5.6–8 N.m) in crosswise pattern Torque piston housing to piston seat (213) to 90–125 ft–lb (122–170 N.m) without changing alignment of packing *226...
- Page 6 PARTS LIST & DRAWING – 3 GPM PUMP Model 235706, Series A Includes items 201228 Part No. Description 188437 PISTON ROD 187068 PACKING NUT 208* 188560* V–PACKING, poly 187939* GLAND, male 207* 188557* O–RING 187934 PISTON HOUSING 209* 188559* O–RING,...
- Page 7 PARTS LIST & DRAWING – 2 GPM PUMP Model 235965, Series A Includes items 201232 Part No. Description 188580 PISTON ROD 187068 PACKING NUT 188656* V–PACKING, leather 188568* GLAND, male 188557* O–RING 188625 PISTON HOUSING 188555* O–RING, Viton 188578* 188566* GLAND, male 188657*...
- Page 8 Graco distributor to the original purchaser for use. As purchaser’s sole remedy for breach of this warranty, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment proven defec- tive.
