Page 1
INSTRUCTION MANUAL BM-3 / BM-33 INSTRUCTION MANUAL BAIN MARIE REF : BM-33 Thank you for selecting our product. Please read the manual carefully before installing and using the product, paying particular attention to the safety rules described below. English – Original L2G SAS 17, AVENUE DU 24 AOÛT 1944 BP90690-69969 CORBAS CEDEX TÉL.
Page 2
INSTRUCTION MANUAL BM-3 / BM-33 Index 1. Safety instructions 2. Introduction 3. Technical specifications 4. Installation and utilization 5. Use operation steps 6. Exploded view and spare parts lis 7. Electrical circuit 8. Maintenance and service 9. Standards and directives 10.
INSTRUCTION MANUAL BM-3 / BM-33 1. SAFETY INSTRUCTIONS • For your safety, do not store or use gasoline or other flammable vapors or liquids in the vicinity of this equipment. Keep the area free and clear of combustible. • Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury, or death. Read the installation operating and maintenance instructions thoroughly before installing, or servicing this equipment.

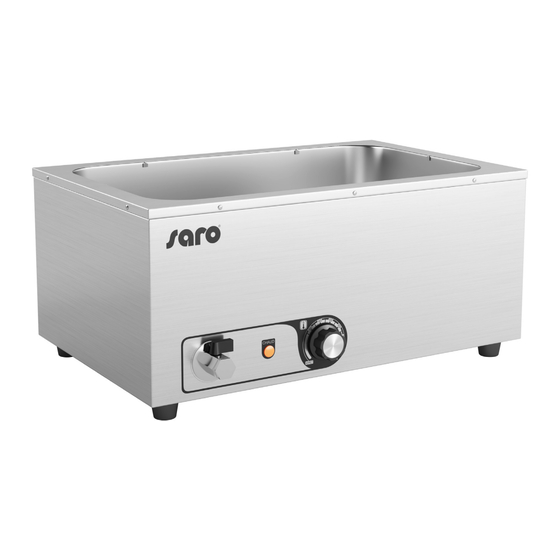

INSTRUCTION MANUAL BM-3 / BM-33 2. PRODUCT PROFILE BM series desktop electric Bain Marie by European structural design, made of stainless steel. With novel style, reasonable structure, convenient operation, constant temperature control, clean health, and other characteristics is western restaurant, fast food shops, snack shops special insulation equipment.
INSTRUCTION MANUAL BM-3 / BM-33 6. EXPLODED VIEW AND SPARE PARTS LIST BM-33 L2G SAS 17, AVENUE DU 24 AOÛT 1944 BP90690-69969 CORBAS CEDEX TÉL. : +33(0)4 72 23 23 98 FAX : +33(0)4 72 23 23 99...
Page 6
INSTRUCTION MANUAL BM-3 / BM-33 SPARE PARTS LIST BM-33 N° NAME OF SPARE PARTS ref L2G POWER CORD WITH EU PLUG BM-3-1 POWER CABLE HEAD BM-3-2 WATER TANK WITH HOUSING ALUMINUM PLATE HEATING ELEMENT BM-33-5 HEATING ELEMENT PRESSEURE BAR HOT COVER HOT COVER SUPPORT BAR BOTTOM COVER RUBBER FEET...
INSTRUCTION MANUAL BM-3 / BM-33 7. ELECTRICAL DIAGRAM 8. MAINTENANCE 1. During cleaning and maintenance, the power supply should be cut off to prevent accidents. 2. After working, should use a damp towel with non-corrosive detergent diluent to clean the surface of the machine and power cord.
INSTRUCTION MANUAL BM-3 / BM-33 9. STANDARDS AND DIRECTIVES Meaning of crossed out wheeled dustbin: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
