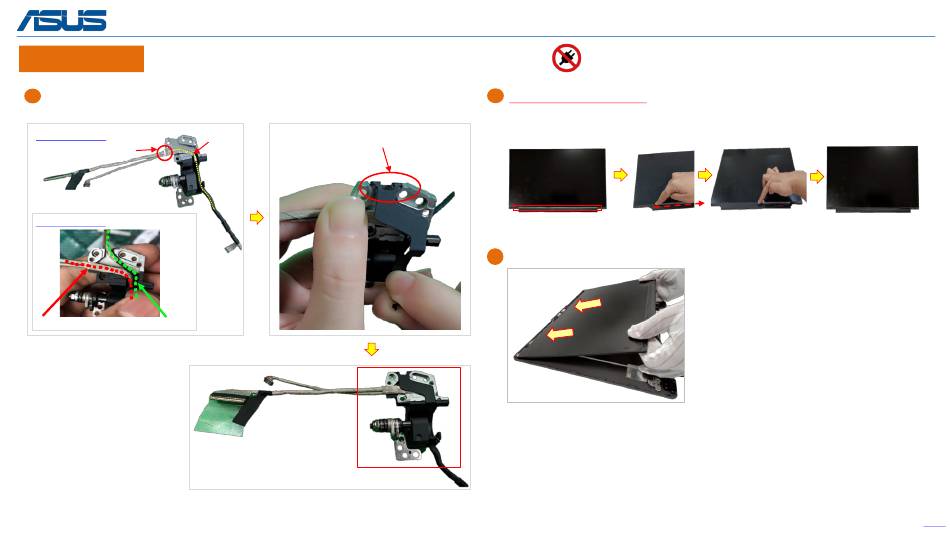

Assembly Notice
Please be sure to pull out adapter and disconnect the battery.
A
Before assembly L HINGE, please follow the steps to tidy up EDP cable, hinge cap
and L HINGE.
For G713 Series
Align EDP Cable
For G733 Series
LOGO BACK LIGHT
EDP Cable
Align and assembly HINGE CAP
Tidy up
Done
LCD PANEL
B
When reuse the LCD PANEL:
Please use the fingertip to clean the residual glue on PANEL or BEZEL.
C
Assembly and align the LCD to the upper side of the LCD Cover.
Align
