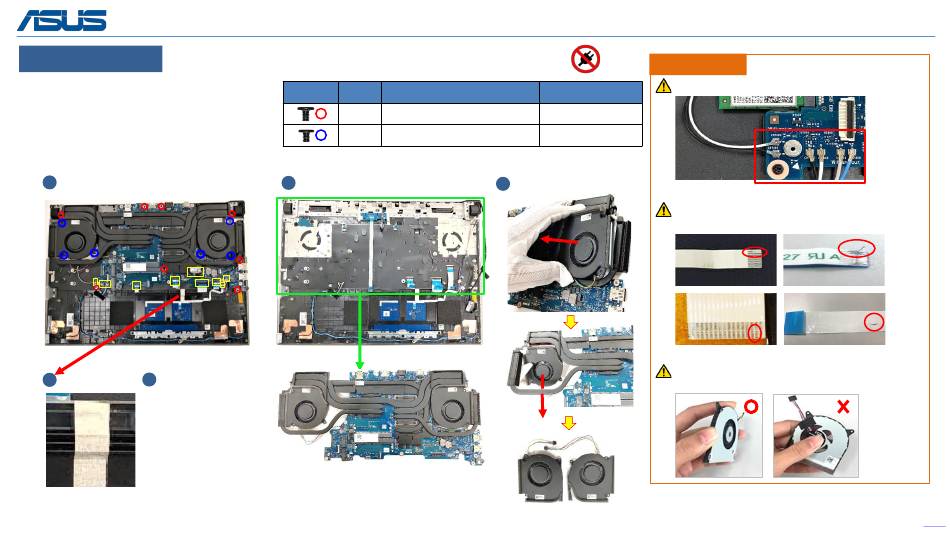

FAN (with THERMAL MODULE and MAIN BOARD)

Disassembly Notice Please be sure to pull out adapter and disconnect the battery.
Step 1 : Disconnect the connector (yellow mark).
Step 2 : Tear off TP MODULE GND CONDUCTIVE TAPE.
Step 3 : Remove screws *14pcs.
Step 4 : Remove MB and Thermal and FAN module.
Step 5 : Remove FAN *2pcs.
1
Disconnect (Yellow mark)
3
2
Remove
Tear off
(Red and blue
and yellow mark)
Screws QTY Spec
8 M2*3.5L (4,0.8) (K) #1
6 M2*4.5L (4.5,0.8) (K) #1
4
Remove module (MB+Thermal+FAN)
Assembly Notice
Please follow the red mark to connectors.
Torque (kgf-cm)
2.0±0.2
1.5±0.2
5 Remove FAN
If FFC is damage during disassembly, please replace
new one. Here are some samples of FFC damage:
Please use the correct technique to take fans off to
avoid getting out of shape.
20
