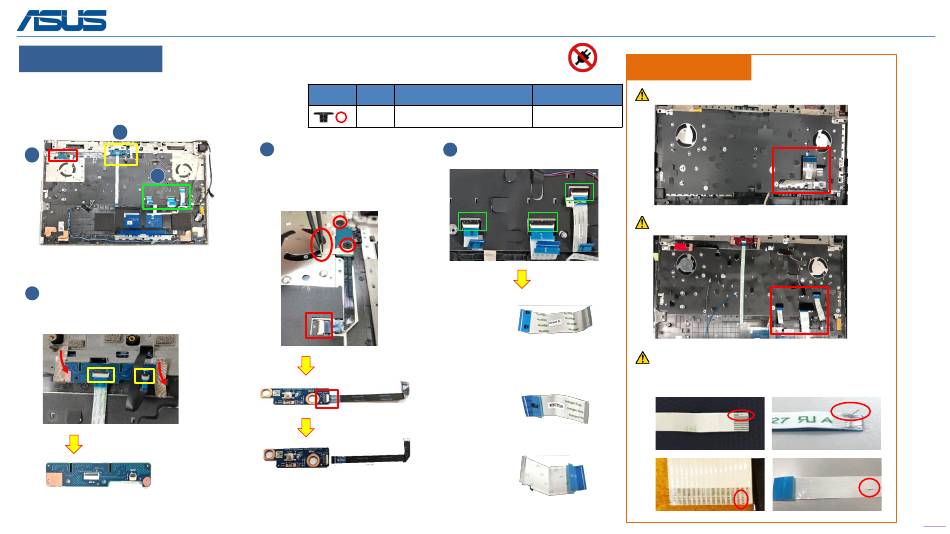

Disassembly Notice
Please be sure to pull out adapter and disconnect the battery.
Step 1 : Remove the INDICATOR BD (yellow mark).
Step 2 : Remove the Power Switch BD and FFC (red
Step 3 : Disconnect the FFC*3pcs (green mark).
1
2
3
1
1-1. Tear off KB BRKT LED BD CONDUCTIVE
TAPE and disconnect FFC
1-2. Remove Power Switch BD
Remove

INDICATOR BD

Screws
QTY
mark).
2
M2.5*4.5L(4.5,0.5) (K)#1
2
(For Scar G733 Series)
2-1. Tear off TAPE
2-2. Disconnect FFC
2-3. Remove the screws *2pcs
Disconnect
SCAR POWER KEY FFC
10P 0.5 L71
Spec
Torque (kgf-cm)
2.5±0.2
(For Scar G733 Series)
3
Disconnect the FFC*3pcs
SCAR P H L FFC
20P 0.5 L55
SCAR LIGHT OP LB FFC
20P 0.5 L31
SCAR LIGHT OPMAIN FFC
30P 0.5 L50
Assembly Notice
G713 series keyboard Module includes KB FFC.
G733 series keyboard Module has not KB FFC.
If FFC is damage during disassembly, please
replace new one. Here are some samples of FFC
damage:
27
