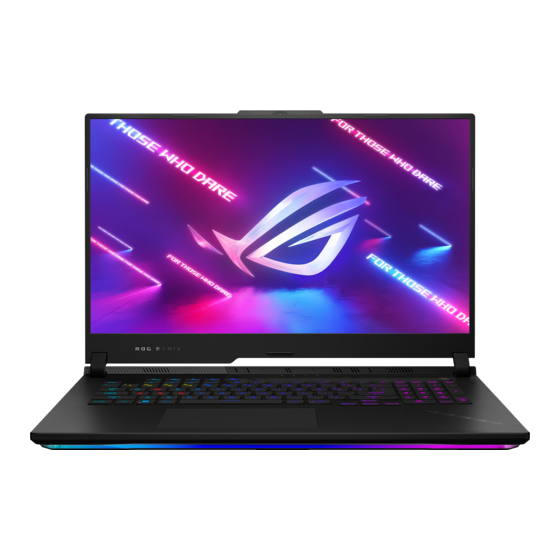

- Page 1 ROG STRIX G17(G713) / STRIX SCAR 17(G733) series Service Guide...
- Page 2 LIMITATION OF LIABILITY Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property;...
- Page 3 Disclaimer ASUS is not responsible for direct, indirect, intentional or unintentional damages resulting from improper installation and operation. Safety precautions • Keep liquids or moisture away from your Notebook PC before installing or removing any components. • Ensure to place your Notebook PC on a stable surface before installing or removing any components.
-
Page 4: Table Of Contents
Table of Contents ⚫ Service Overview ⚫ ROG STRIX G17(G713) Overview ⚫ ROG STRIX SCAR 17(G733) Overview ⚫ Components Top View ⚫ Components Bottom View ⚫ Repair Overview ⚫ Appropriate Tools ⚫ Key parts and Related Parts ⚫ Disassembly steps : •... -
Page 5: Service Overview
Service Overview • Carefully read through this Service Guide for a look at various components of the device before performing any service and repairs. • To provide the best service, we have provided the below information for technicians from distributors and resellers to perform the complete device disassembly and assembly. -
Page 6: Rog Strix G17(G713) Overview
ROG STRIX G17(G713) Overview Bottom View Top View ❶ Display panel ❶ Air vents ❷ Status indicators ❷ Audio speakers ❸ Capital lock indicator ❸ Compartment cover ❹ Keyboard ❺ Power button ❻ Numeric Keyboard ❼ Touchpad Left View Right View ❶... - Page 7 ROG STRIX SCAR 17(G733) and G713QY Overview Top View (lid closed) Bottom View Top View ❶ Air vents ❶ Customizable Armor Cap ❶ Display panel ❷ Audio speakers ❷ Status indicators Compartment cover ❸ ❸ Capital lock indicator ❹ Keyboard ❺...
-
Page 8: Components Top View
Components Top View MIC FFC 4P LCD COVER MODULE KEYBOARD MODULE SPERAKER WIFI ANTENNA MAIN BOARD DDR4 LIGHT BAR L/R FFC 6P 0.5MM L70 L : 0.5 L176 /R : 0.5 L278 LCD BEZEL Touch Pad THERMAL MODULE ASSY SPEAKER WOOFE SCAR POWER KEY FFC TP FFC 8P 0.5 L133 (Only for Scar G733 Series) -
Page 9: Components Bottom View
Components Bottom View LCD COVER MODULE KEYBOARD MODULE MAIN BOARD KB BRKT LED BD CONDUCTIVE TAPE TP MODULE GND CONDUCTIVE TAPE LCD PANEL ADHESIVE LCD BEZEL BASE CASE INDICATOR BOARD BTM U BAR CORNER MYLAR LCD BEZEL ADHESIVE UP LCD BEZEL ADHESIVE LED RUBBER LCD Panel THERMAL MODULE ASSY... -
Page 10: Repair Overview
Repair Overview This chapter describes disassembly and assembly (Assemble document please look up from the last page), please follow the information provided in this section to perform the complete disassembly procedure. Precautions: Before you perform any service or repair on the notebook, please pay special attention to the cautions prevent any damages to the notebook. 1. -
Page 11: Appropriate Tools
Appropriate Tools Please prepare and select the appropriate tools to disassemble/assemble for the ROG STRIX G17(G713) / ROG STRIX SCAR 17(G733) series notebook. Screwdriver Alcohol 95% Glove Dust-free Cloth Please accord to different screw specification to choose different screwdriver and head. Plastic Blade PLASTIC CARD T=0.35mm PLASTIC PICK T=0.5mm... - Page 12 Appropriate Tools Please prepare and select the appropriate tools to disassemble/assemble for the ROG STRIX G17(G713) / ROG STRIX SCAR 17(G733) series notebook. ❾ ❿ ⓫ ❺ ❼ ❶ ❸ ⓭ ❷ ❹ ❻ ❽ ⓬ ⓮ Tooling Type Item Part Name Memo ❶...
-
Page 13: Bottom Case
BOTTOM CASE (Only for G713 Series tail code is C/E/H) Disassembly Notice There are cables connected Screws Spec Torque (kgf-cm) to MB, so please do not pull out Step 1 : Remove screws *10pcs. M2.5*9L(4.5,0.85)(K) #1 2.5±0.2 the bottom case directly. Step 2 : Use plastic blade to pry the bottom case. - Page 14 BOTTOM CASE Disassembly Notice Assembly Notice Step 1 : Tear off BTM U bar corner Mylar*2pcs. Please follow red mark below to tidy FFC. Step 2 : Remove screws*2pcs and LED module. Step 3 : Disconnect LED BD FFC*2pcs. Screws Spec Torque (kgf-cm) M2*3.5L(4,0.8) (K)#1...
-
Page 15: Battery
BATTERY Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Before disassembly battery connector, please be sure to pull out adapter and disconnect the battery more than ten seconds in order to IC damage. Step 1 : Disconnect the battery connector. Assembly Notice Screws Spec... -
Page 16: Ssd And Ddr
SSD and DDR Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Remove the screws *2pcs. Screws Spec Torque (kgf-cm) Assembly Notice Step 2 : Remove SSD *2pcs. M2*2.5L (5,0.5) (K) #1 2.0±0.2 Step 3 : Remove SSD thermal pad. -
Page 17: Soul Key Board
SOUL KEY BOARD Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Disconnect the FFC connector. Step 2 : Remove the screw *1pcs SOUL KEY BD. and remove Assembly Notice Step 3 : Disconnect the FFC connector. If FFC is damage during disassembly, please replace new one. -
Page 18: Wifi Card
WIFI CARD Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Disconnect the RF CABLE connector *2pcs. Step 2 : Remove the screw *1pcs. Assembly Notice Step 3 : Remove WIFI CARD. Screws Spec Torque (kgf-cm) Please according to below image to assemble RF cable. -
Page 19: Speaker
SPEAKER Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Release the tape *2pcs. Step 2 : Disconnect the SPEAKER connector. Assembly Notice Step 3 : Remove SPEAKER. For Speaker assembly, please follow the mark below to tidy cable. Disconnect Release Remove... -
Page 20: Fan (With Thermal Module And Main Board)
FAN (with THERMAL MODULE and MAIN BOARD) Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Assembly Notice Step 1 : Disconnect the connector (yellow mark). Please follow the red mark to connectors. Screws Spec Torque (kgf-cm) Step 2 : Tear off TP MODULE GND CONDUCTIVE TAPE. -
Page 21: Thermal Module
THERMAL MODULE Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Screws Spec Torque (kgf-cm) Step 1 : Please follow the reverse screws numbers to remove screws *8pcs. Step 2 : Remove the THERMAL MODULE from MB. M2*3.5L (4,0.8) (K) W-NI 2.0±0.2 Recommend that the force point is at green block, and pull up thermal module to take... - Page 22 THERMAL MODULE (FOR G713QY) Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Screws Spec Torque (kgf-cm) Retention Screw 2.0±0.2 Step 1 : Please follow the reverse screws numbers to loosen the retention screws *8pcs without removing the screw form the MB. Step 2 : Remove the THERMAL MODULE from MB.
-
Page 23: Main Board
MAIN BOARD Mainboard connector placement VGA FAN BATTERY EDP CABLE Supports using JIG BOARD to refresh F1 BIOS LOGO-UNIT CPU FAN LED BAR 2 NFC FFC SPEAKER WIFI ANTENNA SPEAKER WOOFER TP Pad KB Function KB FBC LITE-AXIS LED BAR Indicator+Mic Back... - Page 24 MAIN BOARD FOR G713QY Mainboard connector placement BATTERY EDP CABLE VGA FAN CPU FAN U LIGHT BAR R FFC SPEAKER LED FFC KB FPC TP FFC WIFI ANTENNA U LIGHT BAR L FFC K/B LED FPC Supports using JIG BOARD to refresh F1 BIOS Back...
- Page 25 MAIN BOARD Materials on mainboard G532LWS GPU BKT ASSY|WAN CHENG G532LWS CPU BKT ASSY|WAN CHENG G513QY GPU BKT ASSY G513QY CPU BKT ASSY G513QC HDMI GASKET G513QC MB AL+ABSORBER G533QS DDR ABSORBER|LONGYANG For G713QY G533QS MB MYLAR|TENYI G513QY MB GPU KAPTON(AMD GPU) G513QY MB CPU KAPTON G513QM MB RENOIR CPU KAPTON(For G713IE Only) Back...
- Page 26 MAIN BOARD Materials on mainboard For G713I/Q (S/R/M) & G733Q SKU G533QS GPU ABSORBER For G713I/Q (C/E/H) SKU G533QS CPU ABSORBER(X50 GPU) Back...
-
Page 27: Indicator Bd
INDICATOR BD Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Assembly Notice Step 1 : Remove the INDICATOR BD (yellow mark). Screws Spec Torque (kgf-cm) G713 series keyboard Module includes KB FFC. Step 2 : Remove the Power Switch BD and FFC (red mark). -
Page 28: Ir Sensor Bd (For G713Qy)
IR SENSOR BD (FOR G713QY) Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1: Disconnect FFC connector. Screws Spec Torque (kgf-cm) Assembly Notice Step 2: Remove screw*1pcs. M2*2.5L(5,0.5) (K) #1 2.0±0.2 Step 3: Remove IR board. If FFC is damage during disassembly, please Step 4: Flip up IR board and disconnect IR BOARD FFC. -
Page 29: Mic Board
MIC BOARD Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Screws Spec Torque (kgf-cm) M2.5*4.5L(4.5,0.8) (K)#1 2.5±0.2 Step 1 : Disconnect the FFC. M1.6*3L(2.9,0.4) (K)#1 1.0±0.1 Step 2 : Remove the screws*4pcs. Step 3 : Slip move THERMAL COVER. (Only For Scar G733 series and G713QY) M2*2L(8,0.8) (K)#1 2.0±0.2... -
Page 30: Keyboard Module
KEYBOARD MODULE Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Screws Spec Torque (kgf-cm) Step 1 : Remove the screws*6pcs (yellow mark). Assembly Notice Step 2 : Remove the KEYBOARD MODULE. M2.5*4.5L(4.5,0.8) (K)#1 2.5±0.2 Step 3 : Remove speak woodfer. Please follow the yellow and red mark to tidy cable. -
Page 31: Lcd Bezel
LCD BEZEL Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Remove LCD BEZEL. Due to some tapes behind the lower edge of bezel, please using plastic blade to teardown the bezel. Please follow the direction shown in the red arrow, to move plastic blade from left Step 1-1~1-3, Start from the middle area of each side of bezel, to right and peel the bezel away slowly. -
Page 32: Lcd Panel
LCD PANEL Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Remove screws *8pcs,then remove R hinge. Screws Spec Torque (kgf-cm) Step 2 : Unlock hinge cap hook ,then remove L hinge. Step 3 : Pull out LCD adhesive *2pcs. M2*3L (4.5,0.5) (K)#1 2.0±0.2 kgf-cm Step 4 : Remove LCD PANEL. - Page 33 LCD PANEL Assembly Notice Please be sure to pull out adapter and disconnect the battery. Before assembly L HINGE, please follow the steps to tidy up EDP cable, hinge cap When reuse the LCD PANEL: and L HINGE. Please use the fingertip to clean the residual glue on PANEL or BEZEL. For G713 Series Align and assembly HINGE CAP Tidy up...
-
Page 34: Lcd Cover
LCD COVER Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Disconnect the EDP CABLE then remove it. Assembly Notice Step 2 : Tear off LOGO BACK LIGHT MODULE. (For Scar G733 Series) Step 3 : Remove V Cut lighting.
