MAIN BOARD FOR
G713QY

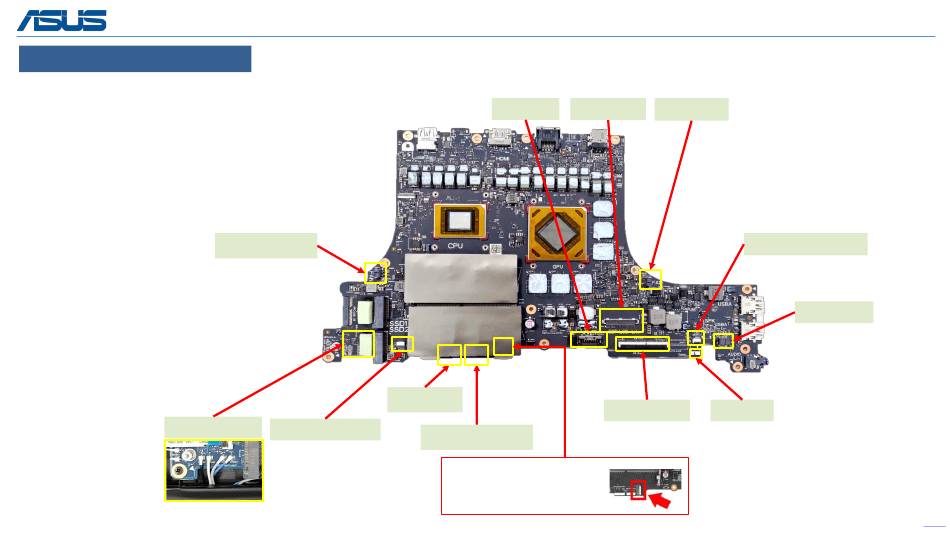

Mainboard connector placement
BATTERY
EDP CABLE
VGA FAN
CPU FAN
U LIGHT BAR R FFC
SPEAKER
LED FFC
KB FPC
TP FFC
WIFI ANTENNA
U LIGHT BAR L FFC
K/B LED FPC
Supports using JIG BOARD to
refresh F1 BIOS
