Comelit INDTAM Manual

INDTAM
MANUALE TECNICO
MANUEL TECHNIQUE
TECHNISCHE HANDLEIDING
Environmental class II (EN50131-2-4)
Read carefully this manual before starting the installation!
This manual is subject to change without notice!
!

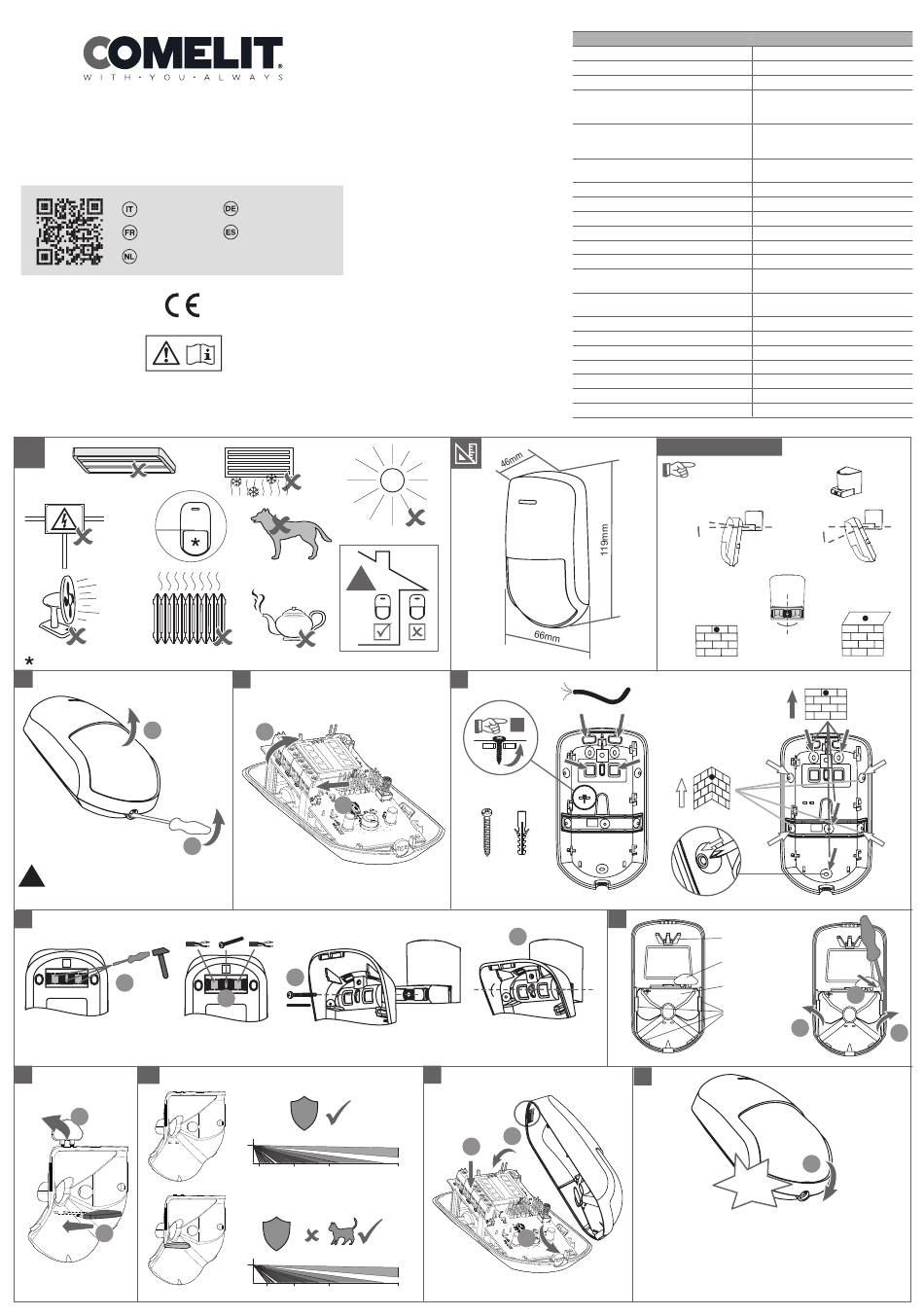

>3m
Do not obscure partially or completely the detector's field of view
1
2
1
Gently place the screwdriver tip into
!
the recessed slot and slightly rotate the
screwdriver to facilitate the release of
the cover.
4
1
6
6.1
1
2
Functional features
• Dual technology detector;
• K-band microwave;
• Anti-masking signaling;
• Anti-spray signaling by active IR technology;
• Digital processing algorithm;
• Sensitivity adjustments for MW and PIR parts;
• Digital bi-directional temperature
compensation;
• Simple screw-free structure for easy
installation;
• "Triple Knock" operation function;
• Selectable AND or OR operation function;
• PET Immunity up to 15kg (PIR part only);
• Reverse polarity protection;
• On board E.O.L. resistors for Tamper and Zone
TECHNISCHES HANDBUCH
Alarm - ready for using with Comelit control
panels;
MANUAL TÉCNICO
• Creep zone protection (the space underneath
the detector, which can be mechanically
disabled or enabled);
• Optional INBRK mounting bracket for wall and
ceiling mounting;
• Color coded terminals for quick and easy
recognition during the installation;
• Separate PIR and MW LED indication.
Test
The walk test is a consecutive coverage zones
determination (see the diagram 11). To perform
this test, walk through a selected coverage zone.
Make sure the LED goes on when entering the
zone. It is recommended to perform this test
each week.
*
The external power supply must meet the requirements of ES1/PS2 according to IEC 62368-1:2014
>15 kg
!
2
2
1
3
2
Creep
Zone
2.1m
0.5m 3.6m 7m 12m
Creep
Zone
2.1m
1.5m 3.6m 7m 12m
Technical specifications
Operating voltage
Current consumption - Standby
Current consumption - Alarm
Alarm signaling output
Tamper signaling output
Anti-masking signaling output
Working temperature
Microwave frequency
RF immunity
Electrostatic immunity
Walk detection speed
Coverage angle - PIR
Coverage range - PIR
(creep zone protected)
Coverage range - PIR
(creep zone ignored)
Coverage range - MW
Anti-masking/spray detection
Mounting height
Number of detection zones - PIR
Warm up time
Dimensions - Weight
Material - Color
3
9
Ø 3,5 mm Ø 5 mm
(NOT INCLUDED)
4
Set the angle
and tight the screw
7
3
2
1
*
9 - 18 VDC
25 mA@12 VDC
max. 48 mA@12 VDC
N.C. contact, max. 100mA@30VDC,
(Ron 5 ohm), with selectable E.O.L.
resistor (1K, 1K8, 2K7 ohm)
N.C. contact, max. 50mA@18VDC,
with selectable E.O.L. resistor (1K,
1K8, 2K7 ohm)
N.C. contact, max. 100mA@30VDC,
(Ron 5 ohm)
-15 °C - +50 °C
24GHz (K band)
10 V/m @ 80 MHz - 6 GHz
8 kV
0,3m/s - 3m/s
90°
0,5m - 12m
1,5m - 12m
0,5m - 12m
according to EN50131-2-4, grade 3
1,5m - 2,5m (suggested 2,1m)
71
50s
119 x 66 x 46mm - ~ 97 g
ABS Plastic -white, (RAL9003)
OPTION (P/N INBRK)
INBRK manual
max 8°
0°
WALL
max
45°
CORNER
5
Ligthpipe
Creep Zone
disabling plate
PIR chamber
Supporting
clips
8
Click!
Important: before place the cover in position, make sure that
the detector has not been powered for more than 30 seconds.
Otherwise disconnect and reconnect the power while the
cover is already in place or reposition it within 30 seconds. In
the initial phase, which is required to ensure correct calibration
of the anti-masking (AM) detection system, avoid to cover,
even partially, the detector.
0°
max 24°
CEILING
max
45°
WALL
1
3
2
1
